DORMER B16117.0 HSS Reamers

Product Code: B16117.0

$205.07$186.43 Ex. GST

Product Code: B16117.0 SKU B16117.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

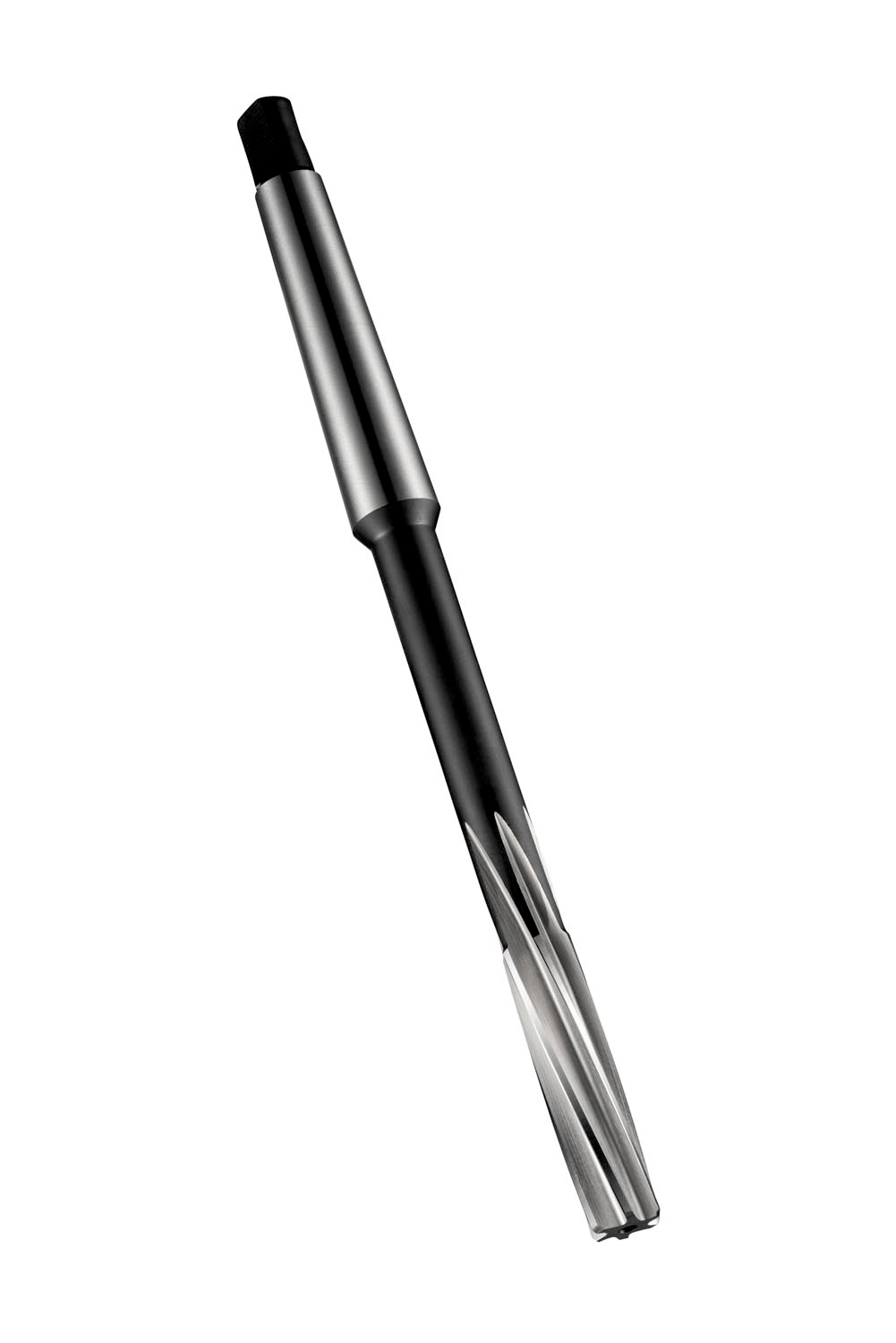

Machine reamer with left hand slow spiral flutes and a Morse taper shank, diameter 17.00mm with an overall length of 214mm, a flute length of 54mm and 134mm reach with neck relief, according to DIN 208 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.1991 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760049822
Product number (SAP): 86012669
Ordering code ANSI: B16117.0
Gross weight – grams: 322.5
Cutting diameter – millimeter (DC): 17 mm
Overall length – millimeter (OAL): 214 mm
Length chip flute – millimeter (LCF): 54 mm
Body length – millimeter (LB): 134 mm
Flute count (NOF): 8
Connection size code machine side (CZC MS): MK 2
ISO: B16117.0

Brand

DORMER
