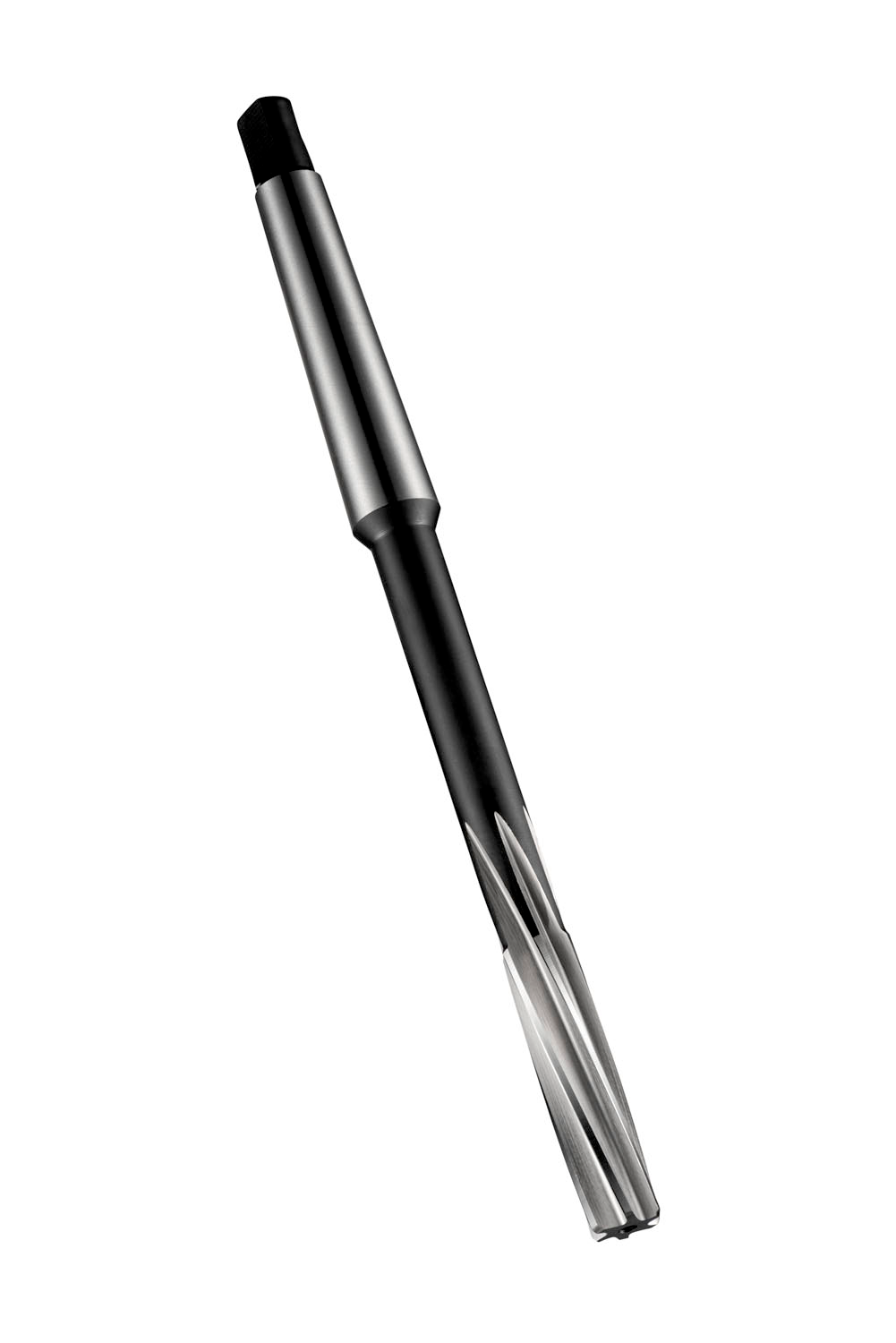

DORMER B16124.0 HSS Reamers

Product Code: B16124.0

$299.11$271.92 Ex. GST

Product Code: B16124.0 SKU B16124.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine reamer with left hand slow spiral flutes and a Morse taper shank, diameter 24.00mm with an overall length of 268mm, a flute length of 68mm and 169mm reach with neck relief, according to DIN 208 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.2904 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760049877
Product number (SAP): 86012676
Ordering code ANSI: B16124.0
Gross weight – grams: 765.9
Cutting diameter – millimeter (DC): 24 mm
Overall length – millimeter (OAL): 268 mm
Length chip flute – millimeter (LCF): 68 mm
Body length – millimeter (LB): 169 mm
Flute count (NOF): 8
Connection size code machine side (CZC MS): MK 3
ISO: B16124.0

Brand

DORMER
