DORMER B16126.0 HSS Reamers

Product Code: B16126.0

$341.03$310.03 Ex. GST

Product Code: B16126.0 SKU B16126.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

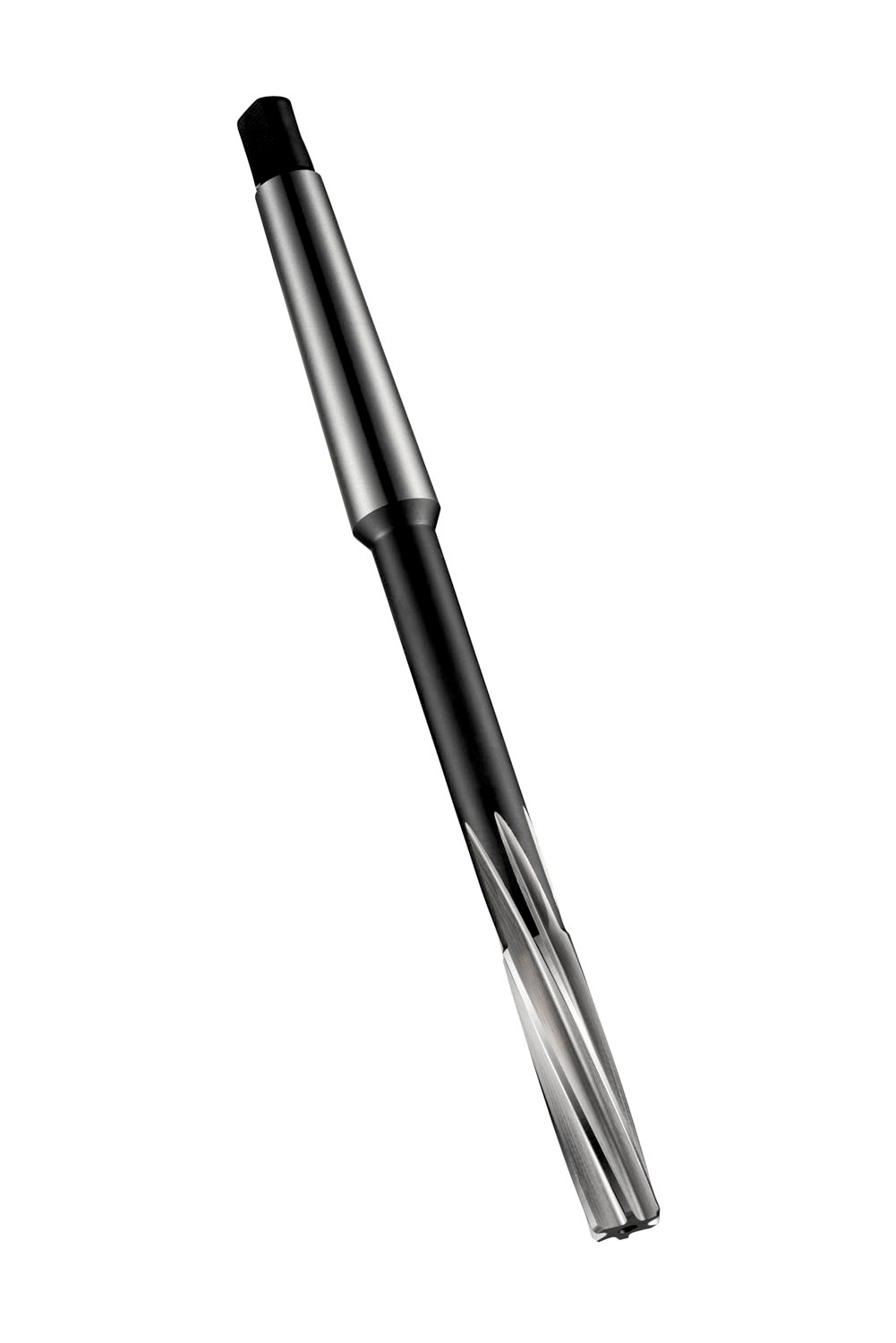

Machine reamer with left hand slow spiral flutes and a Morse taper shank, diameter 26.00mm with an overall length of 273mm, a flute length of 70mm and 174mm reach with neck relief, according to DIN 208 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.3311 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760049891
Product number (SAP): 86012678
Ordering code ANSI: B16126.0
Gross weight – grams: 793.8
Cutting diameter – millimeter (DC): 26 mm
Overall length – millimeter (OAL): 273 mm
Length chip flute – millimeter (LCF): 70 mm
Body length – millimeter (LB): 174 mm
Flute count (NOF): 8
Connection size code machine side (CZC MS): MK 3
ISO: B16126.0

Brand

DORMER
