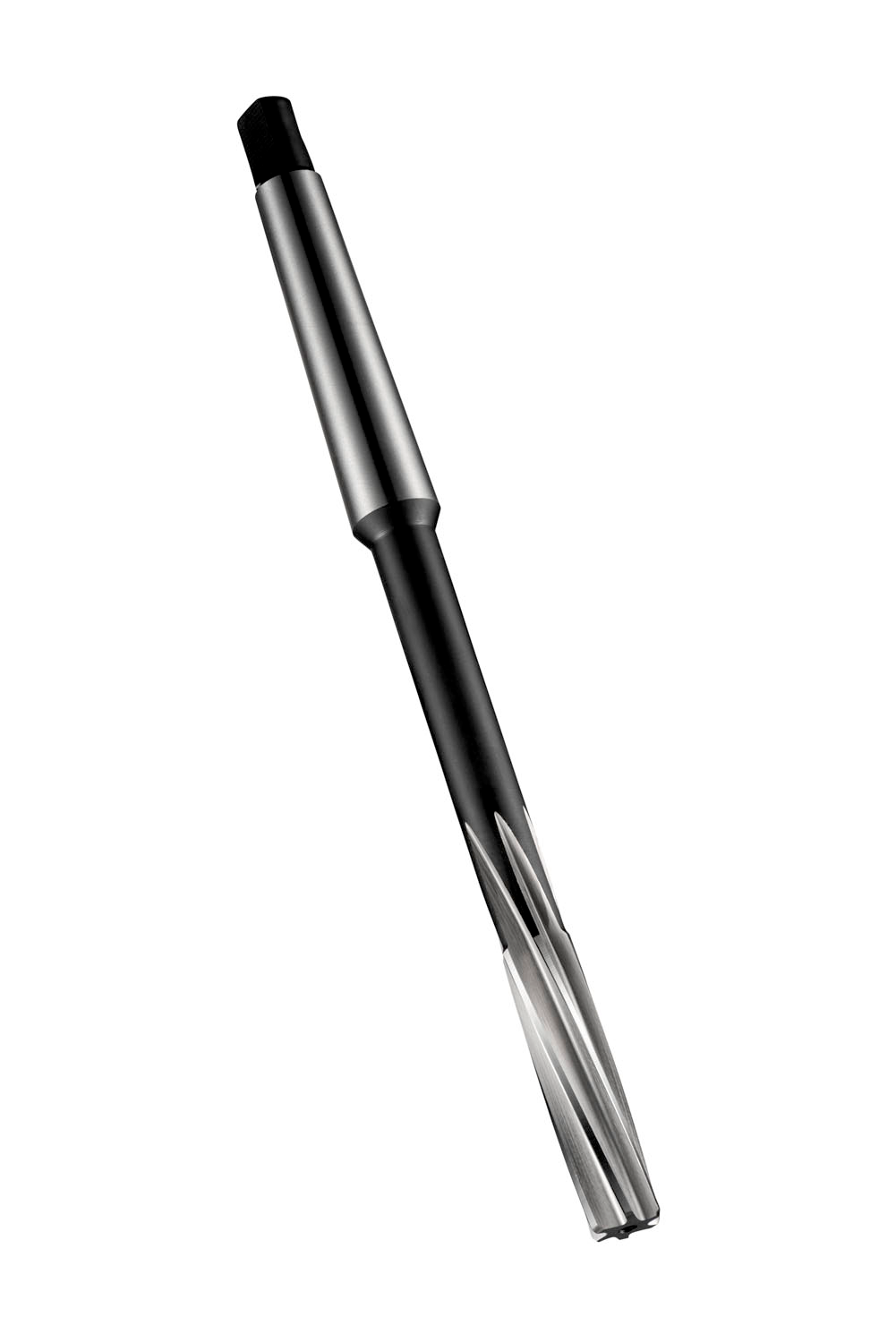

DORMER B1613.0 HSS Reamers

Product Code: B1613.0

$154.09$140.08 Ex. GST

Product Code: B1613.0 SKU B1613.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine reamer with left hand slow spiral flutes and a Morse taper shank, diameter 3.00mm with an overall length of 113mm, a flute length of 15mm and 47.5mm reach with neck relief, according to DIN 208 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.1496 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760049914
Product number (SAP): 86012682
Ordering code ANSI: B1613.0
Gross weight – grams: 54.9
Cutting diameter – millimeter (DC): 3 mm
Overall length – millimeter (OAL): 113 mm
Length chip flute – millimeter (LCF): 15 mm
Body length – millimeter (LB): 47.5 mm
Flute count (NOF): 6
Connection size code machine side (CZC MS): MK 1
ISO: B1613.0

Brand

DORMER
