DORMER B16135.0 HSS Reamers

Product Code: B16135.0

$593.69$539.72 Ex. GST

Product Code: B16135.0 SKU B16135.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

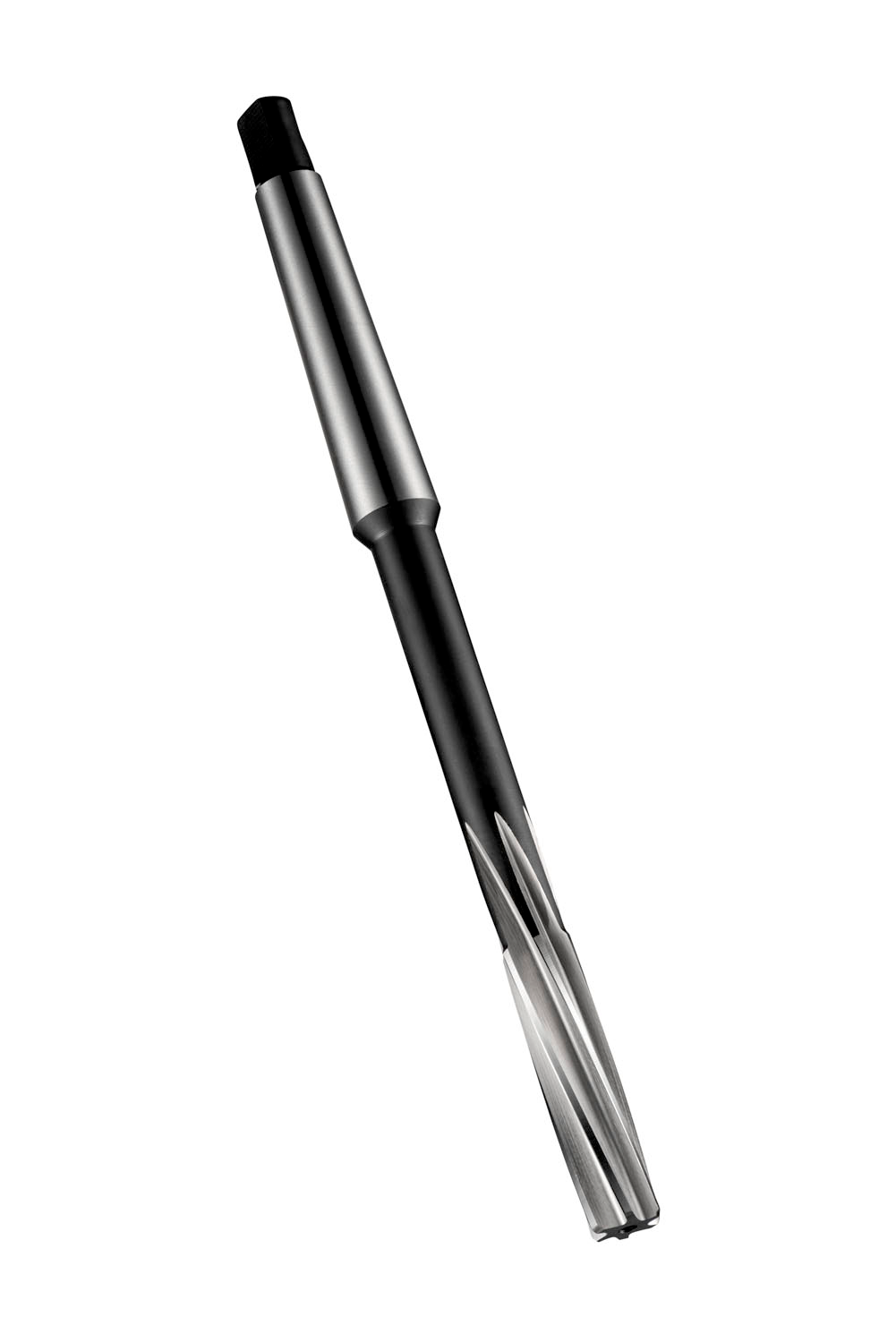

Machine reamer with left hand slow spiral flutes and a Morse taper shank, diameter 35.00mm with an overall length of 321mm, a flute length of 78mm and 197mm reach with neck relief, according to DIN 208 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.5764 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760049952
Product number (SAP): 86012688
Ordering code ANSI: B16135.0
Gross weight – grams: 1669.5
Cutting diameter – millimeter (DC): 35 mm
Overall length – millimeter (OAL): 321 mm
Length chip flute – millimeter (LCF): 78 mm
Body length – millimeter (LB): 197 mm
Flute count (NOF): 10
Connection size code machine side (CZC MS): MK 4
ISO: B16135.0

Brand

DORMER
