DORMER B16138.0 HSS Reamers

Product Code: B16138.0

$704.73$640.66 Ex. GST

Product Code: B16138.0 SKU B16138.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

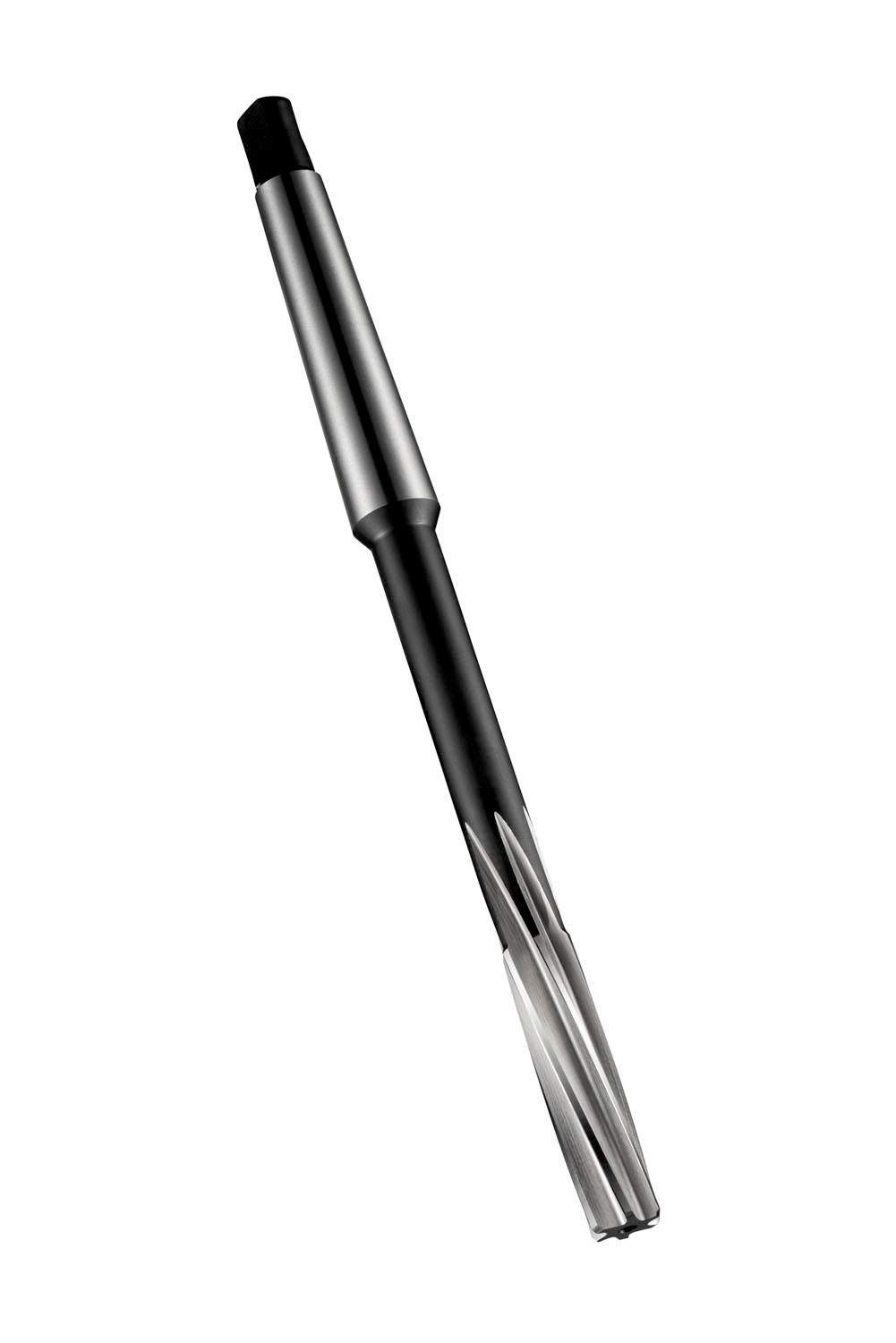

Machine reamer with left hand slow spiral flutes and a Morse taper shank, diameter 38.00mm with an overall length of 329mm, a flute length of 81mm and 205mm reach with neck relief, according to DIN 208 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.6842 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760049976
Product number (SAP): 86012690
Ordering code ANSI: B16138.0
Gross weight – grams: 1890
Cutting diameter – millimeter (DC): 38 mm
Overall length – millimeter (OAL): 329 mm
Length chip flute – millimeter (LCF): 81 mm
Body length – millimeter (LB): 205 mm
Flute count (NOF): 10
Connection size code machine side (CZC MS): MK 4
ISO: B16138.0

Brand

DORMER
