DORMER B16142.0 HSS Reamers

Product Code: B16142.0

$810.10$736.45 Ex. GST

Product Code: B16142.0 SKU B16142.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

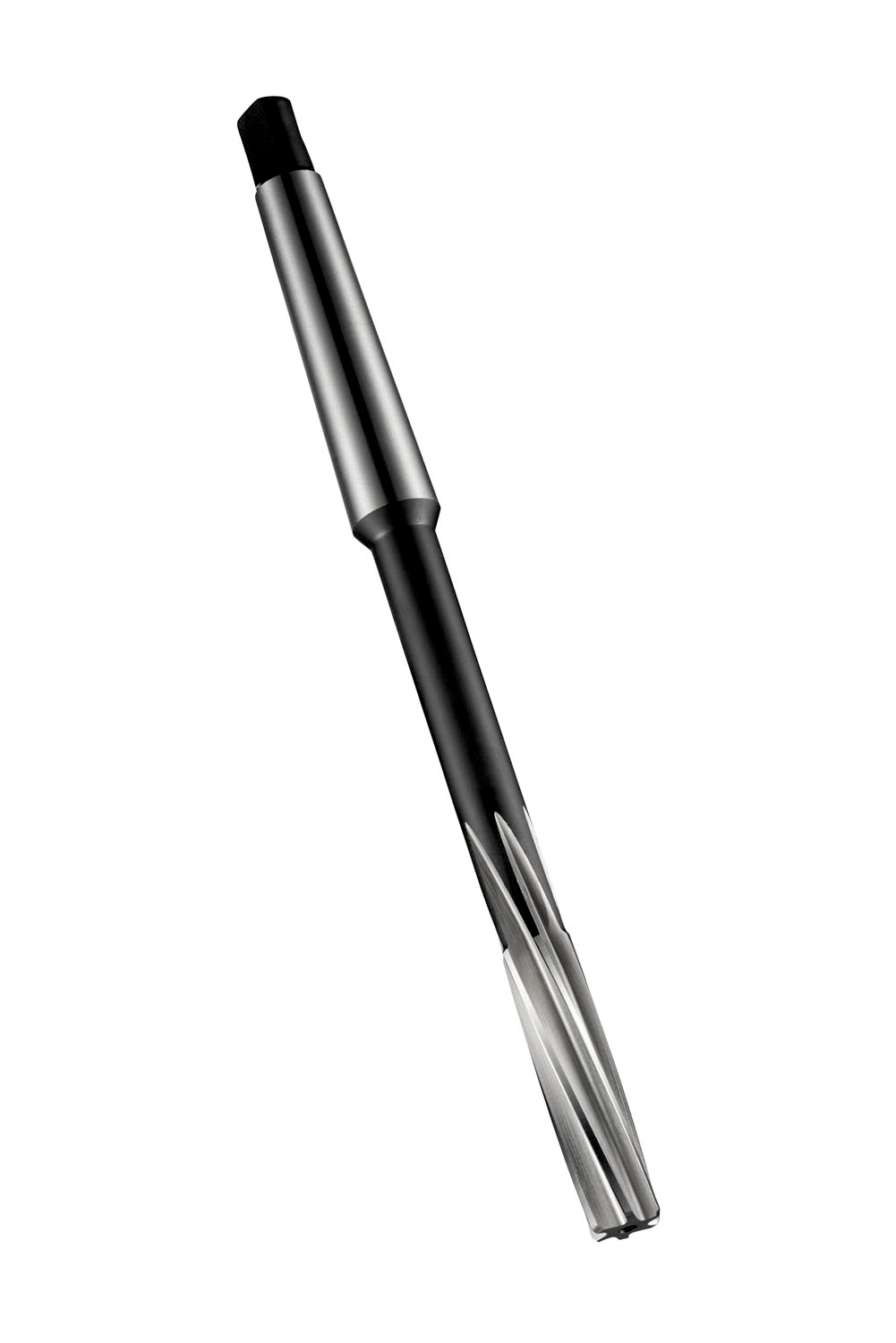

Machine reamer with left hand slow spiral flutes and a Morse taper shank, diameter 42.00mm with an overall length of 333mm, a flute length of 82mm and 209mm reach with neck relief, according to DIN 208 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.7865 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760050002
Product number (SAP): 86012693
Ordering code ANSI: B16142.0
Gross weight – grams: 2132.3
Cutting diameter – millimeter (DC): 42 mm
Overall length – millimeter (OAL): 333 mm
Length chip flute – millimeter (LCF): 82 mm
Body length – millimeter (LB): 209 mm
Flute count (NOF): 12
Connection size code machine side (CZC MS): MK 4
ISO: B16142.0

Brand

DORMER
