DORMER B1619.0 HSS Reamers

Product Code: B1619.0

$147.29$133.90 Ex. GST

Product Code: B1619.0 SKU B1619.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

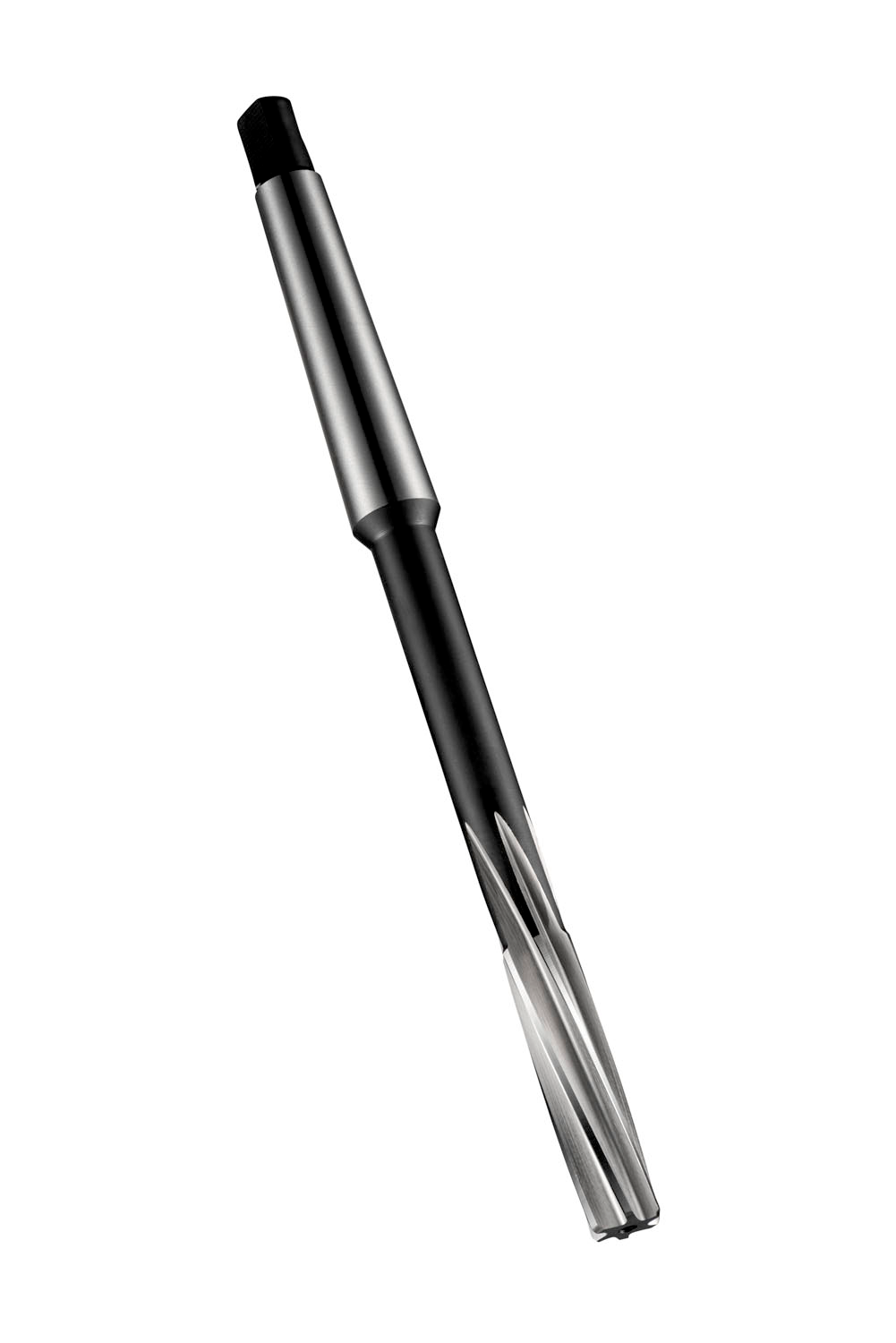

Machine reamer with left hand slow spiral flutes and a Morse taper shank, diameter 9.00mm with an overall length of 162mm, a flute length of 36mm and 96.5mm reach with neck relief, according to DIN 208 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.1430 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760050118
Product number (SAP): 86012704
Ordering code ANSI: B1619.0
Gross weight – grams: 88.2
Cutting diameter – millimeter (DC): 9 mm
Overall length – millimeter (OAL): 162 mm
Length chip flute – millimeter (LCF): 36 mm
Body length – millimeter (LB): 96.5 mm
Flute count (NOF): 6
Connection size code machine side (CZC MS): MK 1
ISO: B1619.0

Brand

DORMER
