DORMER B1701.05 HSS Reamers

Product Code: B1701.05

$87.24$79.31 Ex. GST

Product Code: B1701.05 SKU B1701.05 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

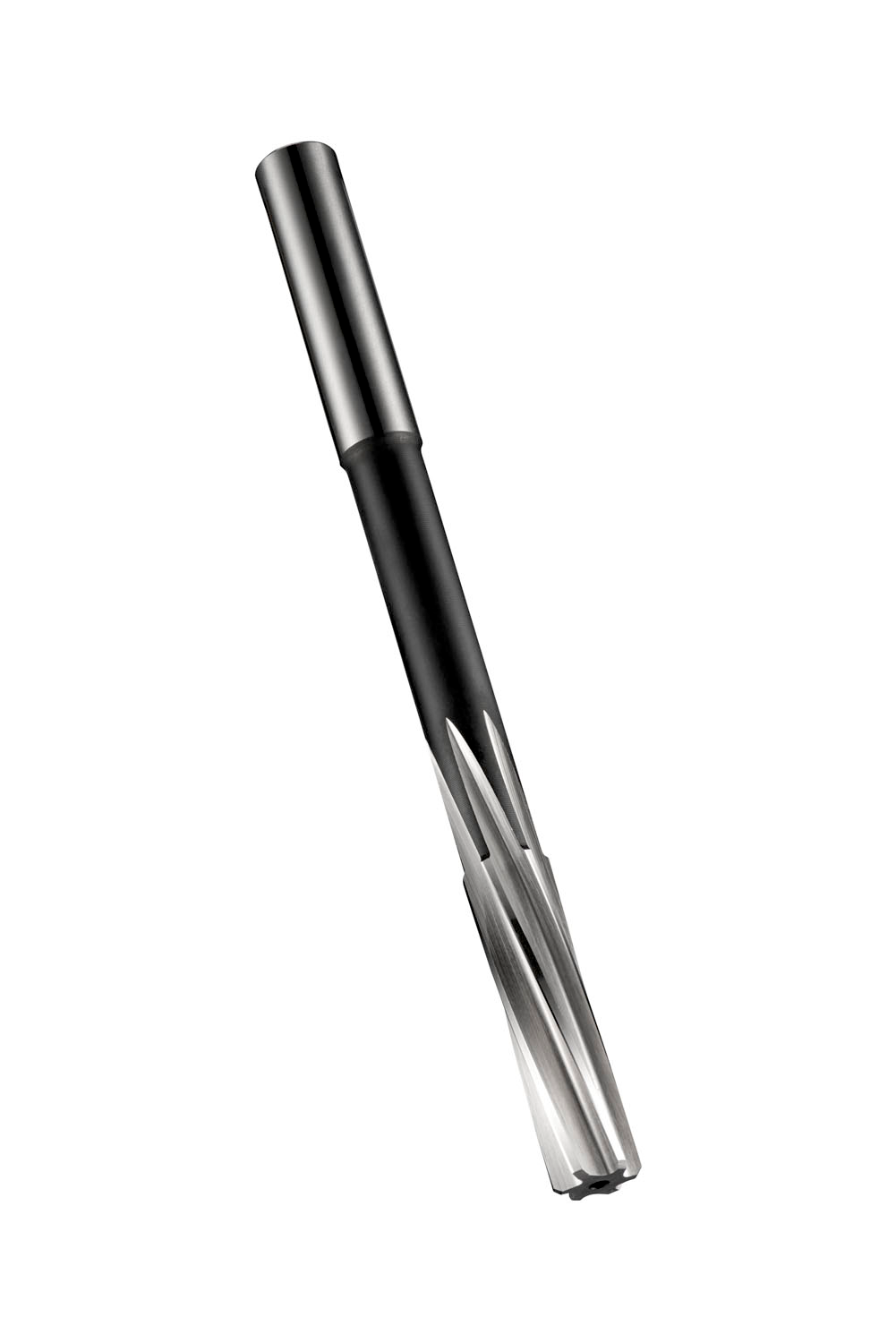

Centesimal reamer with left hand slow spiral flutes and a cylindrical shank, diameter 1.05mm with an overall length of 34mm, a flute length of 5.5mm and 15mm reach with neck relief, according to DIN 212 standard with a diameter tolerance of 0/+0.004mm to produce holes within diameter-tolerance 1D10, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.0847 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760128022
Product number (SAP): 86012712
Ordering code ANSI: B1701.05
Gross weight – grams: 5
Cutting diameter – millimeter (DC): 1.05 mm
Overall length – millimeter (OAL): 34 mm
Length chip flute – millimeter (LCF): 5.5 mm
Body length – millimeter (LB): 15 mm
Flute count (NOF): 3
Connection diameter – millimeter (DCON MS): 1 mm
ISO: B1701.05

Brand

DORMER
