DORMER B17010.98 HSS Reamers

Product Code: B17010.98

$143.89$130.81 Ex. GST

Product Code: B17010.98 SKU B17010.98 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

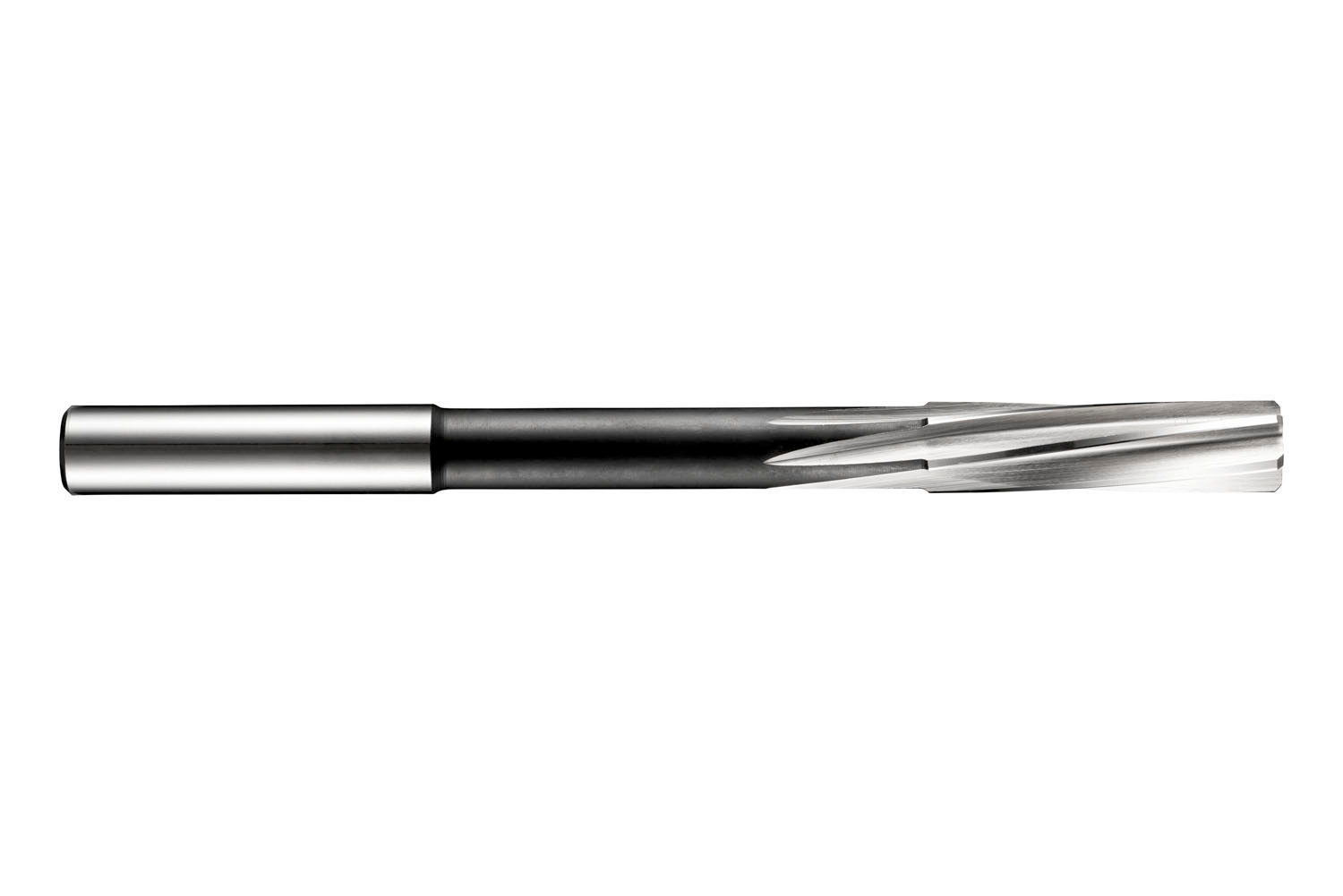

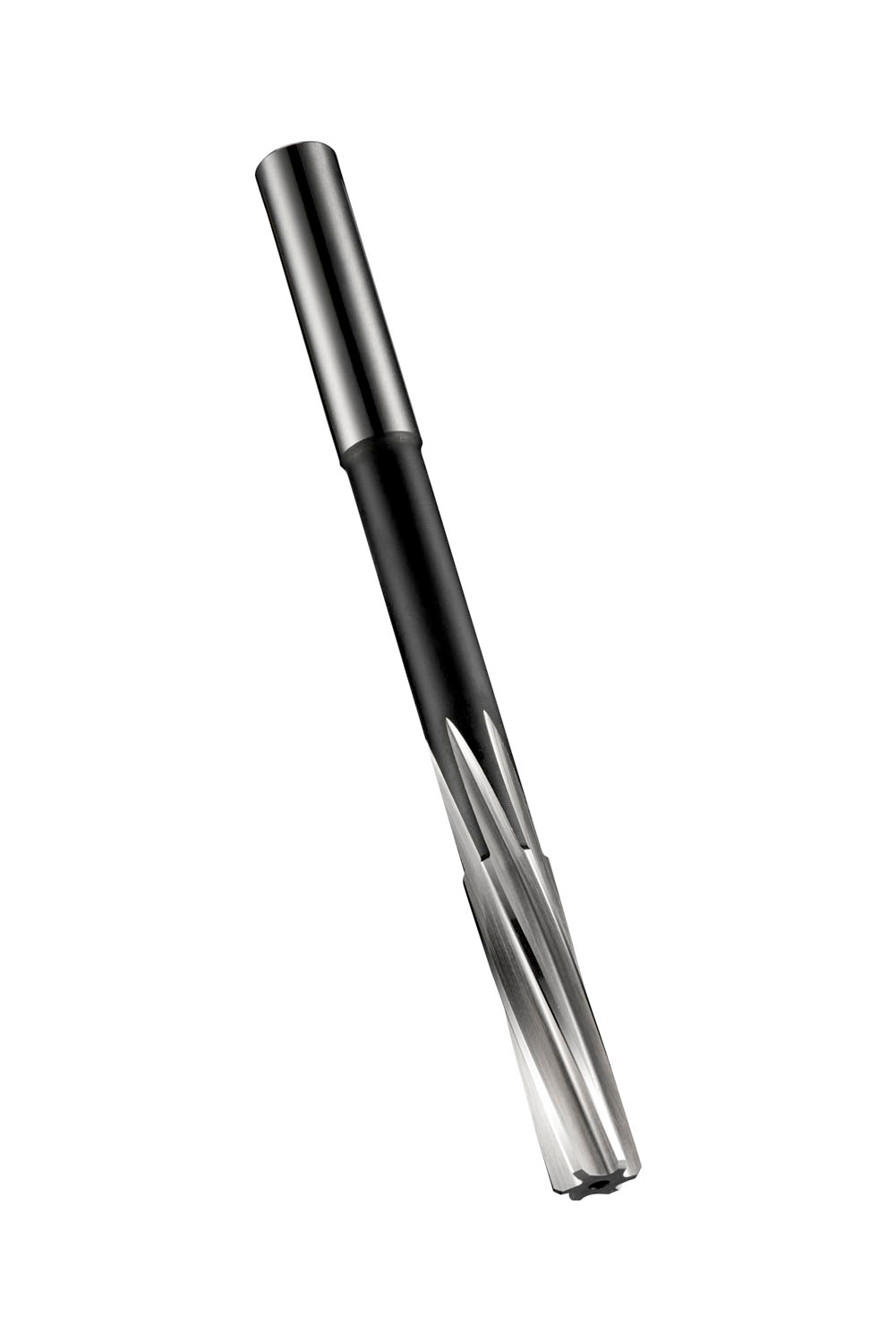

Centesimal reamer with left hand slow spiral flutes and a cylindrical shank, diameter 10.98mm with an overall length of 142mm, a flute length of 41mm and 96mm reach with neck relief, according to DIN 212 standard with a diameter tolerance of 0/+0.005mm to produce holes within diameter-tolerance 11N9, 11N10 or 11P7, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.1397 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760129883
Product number (SAP): 86012729
Ordering code ANSI: B17010.98
Gross weight – grams: 100

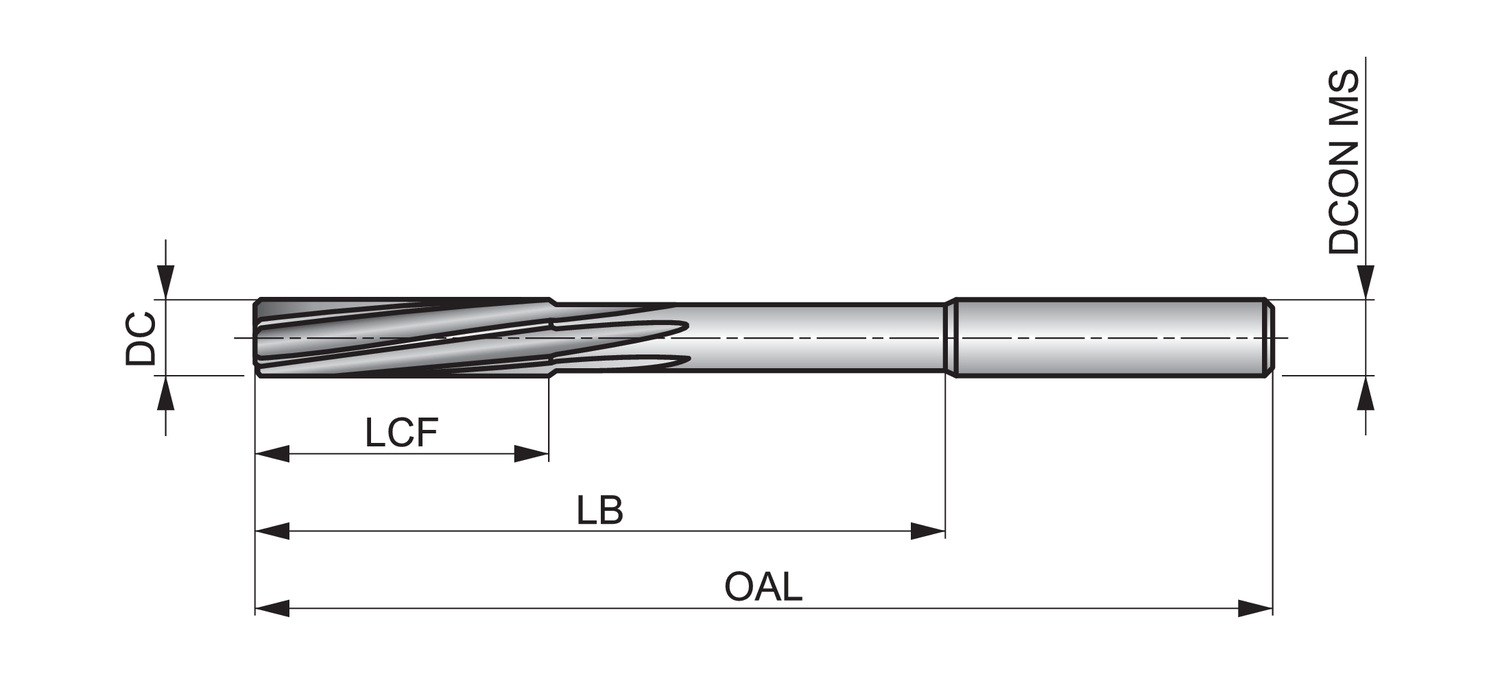

Cutting diameter – millimeter (DC): 10.98 mm
Overall length – millimeter (OAL): 142 mm
Length chip flute – millimeter (LCF): 41 mm
Body length – millimeter (LB): 96 mm
Flute count (NOF): 6
Connection diameter – millimeter (DCON MS): 10 mm
ISO: B17010.98

Brand

DORMER
