DORMER B17012.0 HSS Reamers

Product Code: B17012.0

$156.35$142.14 Ex. GST

Product Code: B17012.0 SKU B17012.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

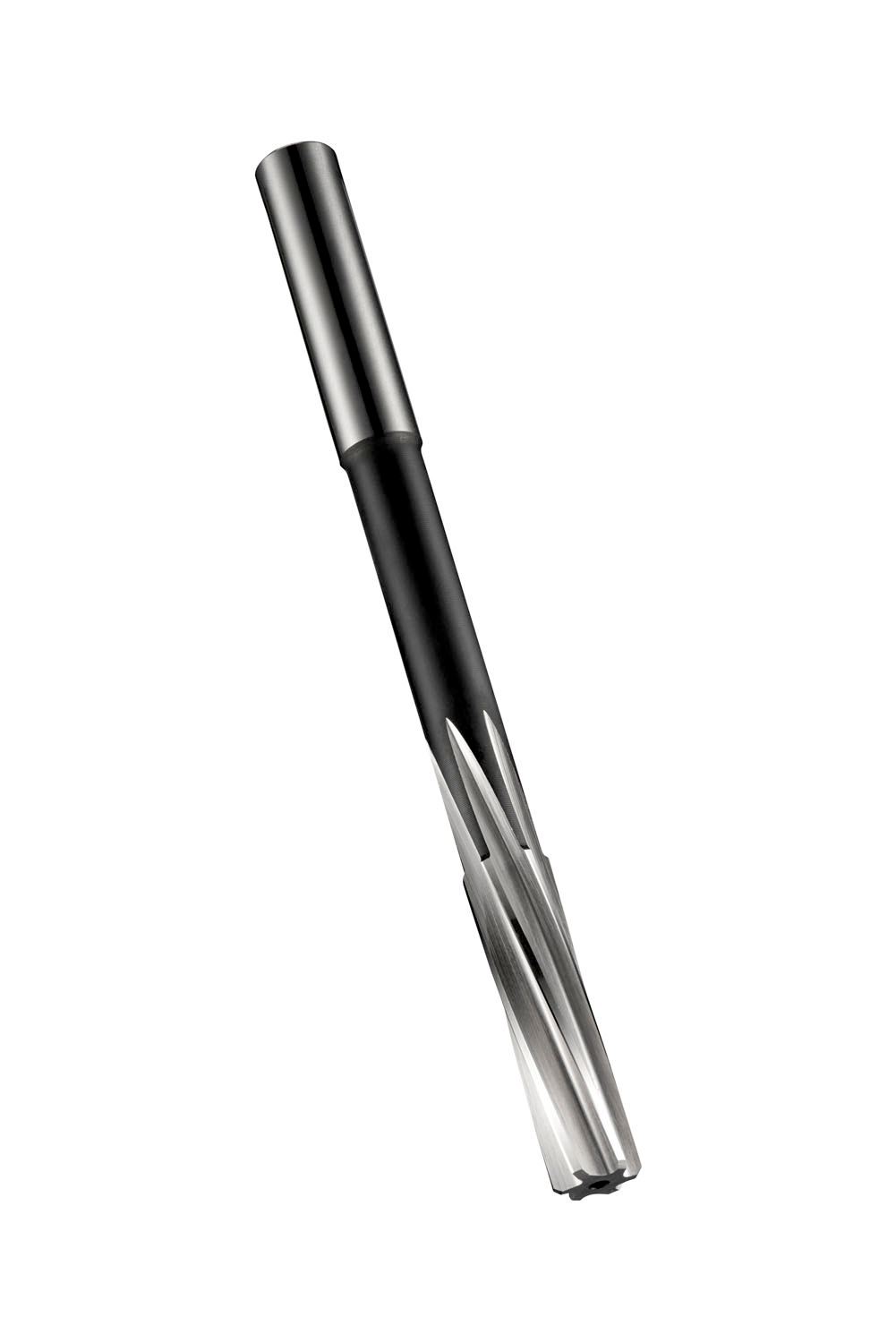

Centesimal reamer with left hand slow spiral flutes and a cylindrical shank, diameter 12.00mm with an overall length of 151mm, a flute length of 44mm and 105mm reach with neck relief, according to DIN 212 standard with a diameter tolerance of 0/+0.005mm to produce holes within diameter-tolerance 12J7, 12J8, 12JS7 or 12JS8, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.1518 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760130889
Product number (SAP): 86012743
Ordering code ANSI: B17012.0
Gross weight – grams: 100
Cutting diameter – millimeter (DC): 12 mm
Overall length – millimeter (OAL): 151 mm
Length chip flute – millimeter (LCF): 44 mm
Body length – millimeter (LB): 105 mm
Flute count (NOF): 6
Connection diameter – millimeter (DCON MS): 10 mm
ISO: B17012.0

Brand

DORMER
