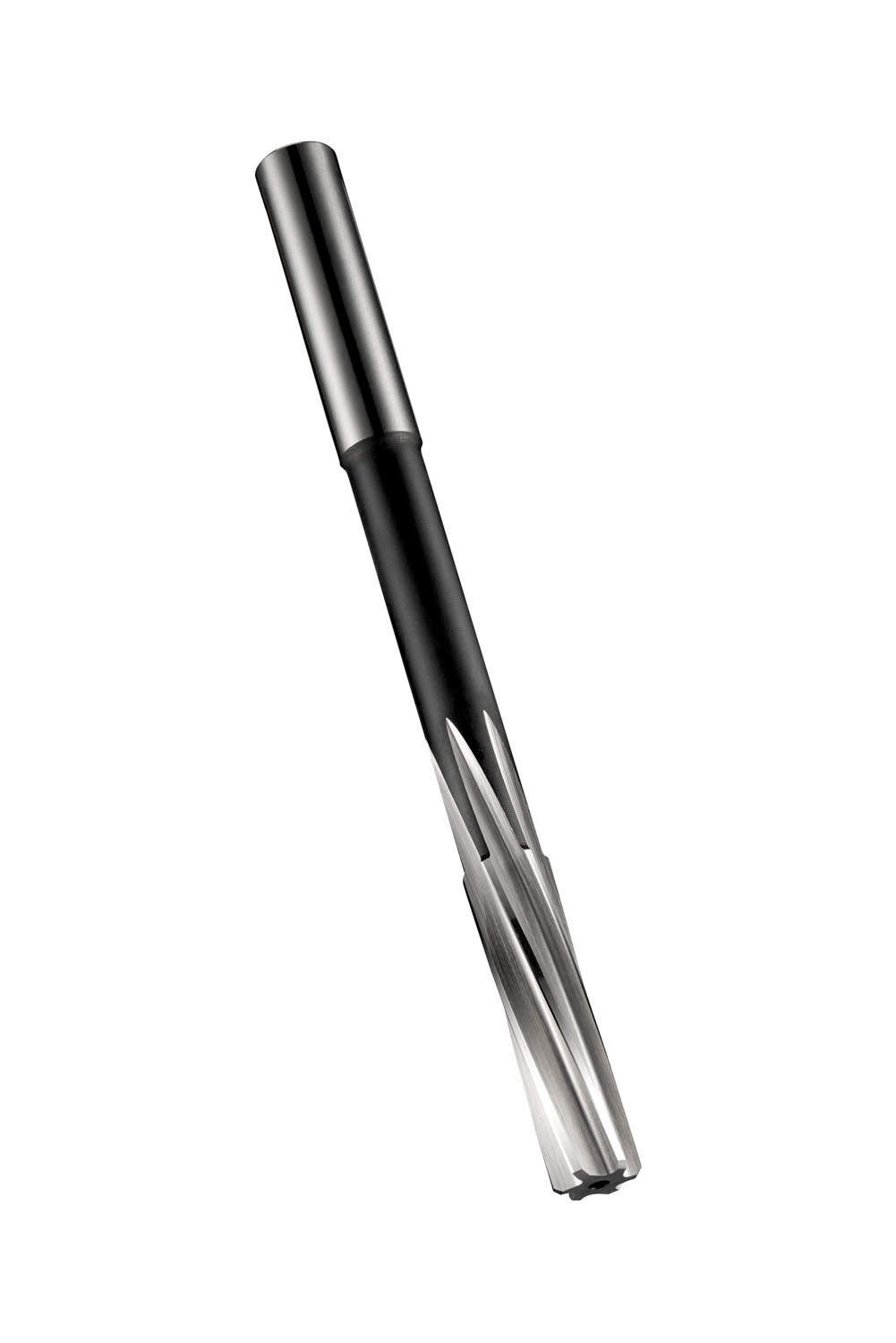

DORMER B1702.51 HSS Reamers

Product Code: B1702.51

$81.58$74.16 Ex. GST

Product Code: B1702.51 SKU B1702.51 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Centesimal reamer with left hand slow spiral flutes and a cylindrical shank, diameter 2.51mm with an overall length of 57mm, a flute length of 14mm and 28mm reach with neck relief, according to DIN 212 standard with a diameter tolerance of 0/+0.004mm to produce holes within diameter-tolerance 2.5F7, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.0792 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760131381
Product number (SAP): 86012752
Ordering code ANSI: B1702.51
Gross weight – grams: 4.8
Cutting diameter – millimeter (DC): 2.51 mm
Overall length – millimeter (OAL): 57 mm
Length chip flute – millimeter (LCF): 14 mm
Body length – millimeter (LB): 28 mm
Flute count (NOF): 4
Connection diameter – millimeter (DCON MS): 2.5 mm
ISO: B1702.51

Brand

DORMER
