DORMER B1703.0 HSS Reamers

Product Code: B1703.0

$70.82$64.38 Ex. GST

Product Code: B1703.0 SKU B1703.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

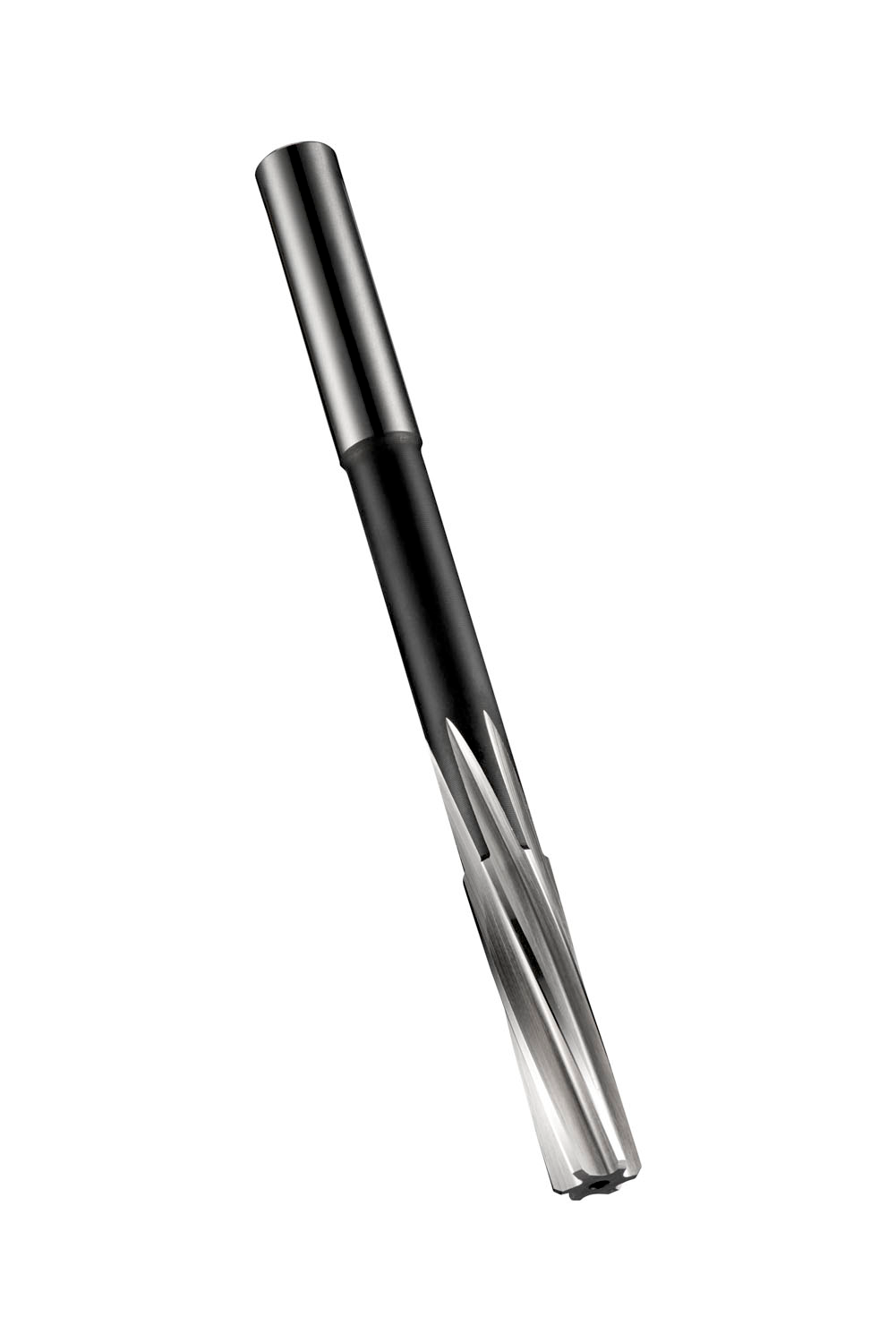

Centesimal reamer with left hand slow spiral flutes and a cylindrical shank, diameter 3.00mm with an overall length of 61mm, a flute length of 15mm and 32mm reach with neck relief, according to DIN 212 standard with a diameter tolerance of 0/+0.004mm to produce holes within diameter-tolerance 3JS8 or 3JS9, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.0688 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760131862
Product number (SAP): 86012756
Ordering code ANSI: B1703.0
Gross weight – grams: 5.7
Cutting diameter – millimeter (DC): 3 mm
Overall length – millimeter (OAL): 61 mm
Length chip flute – millimeter (LCF): 15 mm
Body length – millimeter (LB): 32 mm
Flute count (NOF): 6
Connection diameter – millimeter (DCON MS): 3 mm
ISO: B1703.0

Brand

DORMER
