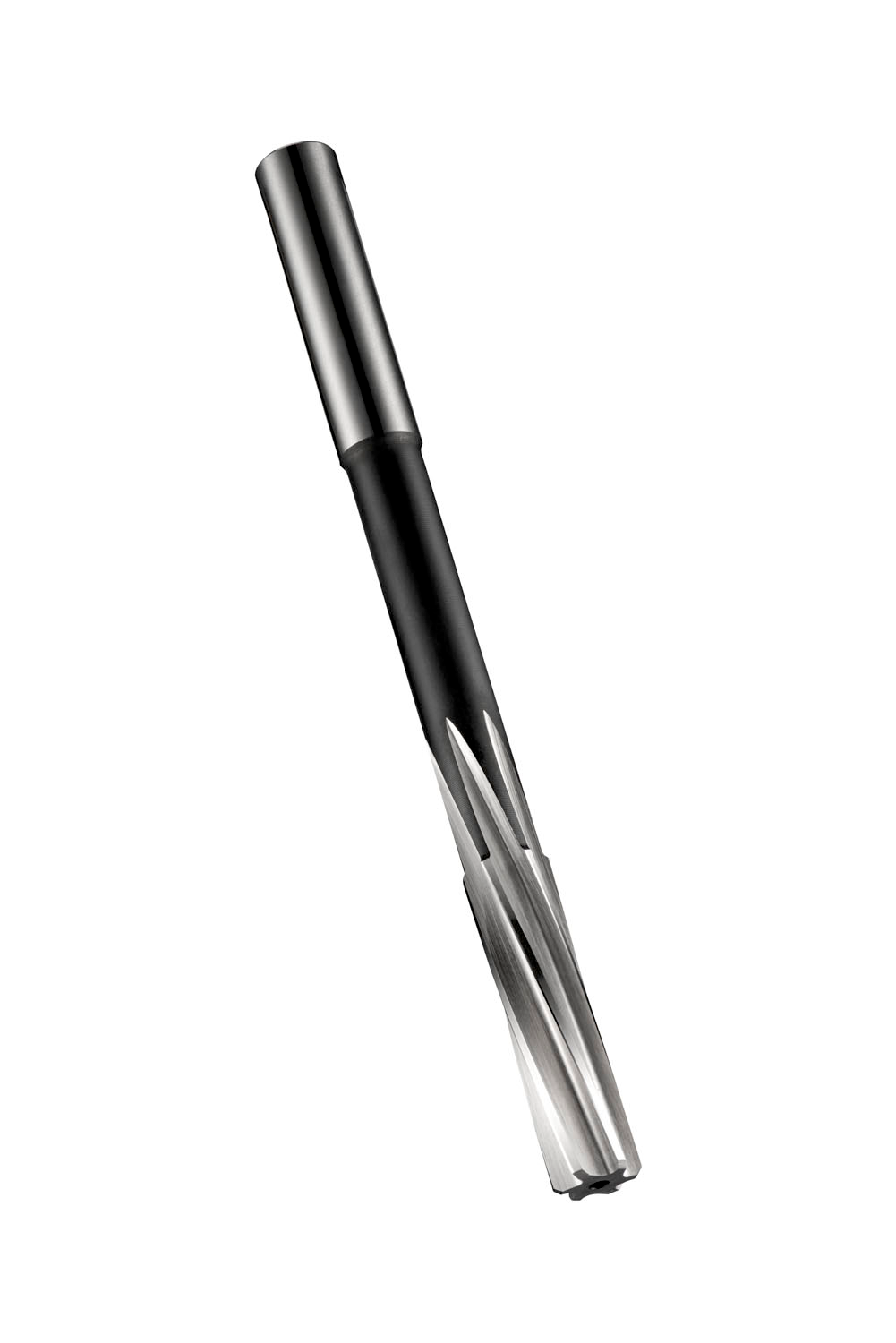

DORMER B1703.01 HSS Reamers

Product Code: B1703.01

$70.82$64.38 Ex. GST

Product Code: B1703.01 SKU B1703.01 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Centesimal reamer with left hand slow spiral flutes and a cylindrical shank, diameter 3.01mm with an overall length of 65mm, a flute length of 16mm and 35mm reach with neck relief, according to DIN 212 standard with a diameter tolerance of 0/+0.004mm to produce holes within diameter-tolerance 3F7, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.0688 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760050491
Product number (SAP): 86012757
Ordering code ANSI: B1703.01
Gross weight – grams: 5.8
Cutting diameter – millimeter (DC): 3.01 mm
Overall length – millimeter (OAL): 65 mm
Length chip flute – millimeter (LCF): 16 mm
Body length – millimeter (LB): 35 mm
Flute count (NOF): 6
Connection diameter – millimeter (DCON MS): 3.2 mm
ISO: B1703.01

Brand

DORMER
