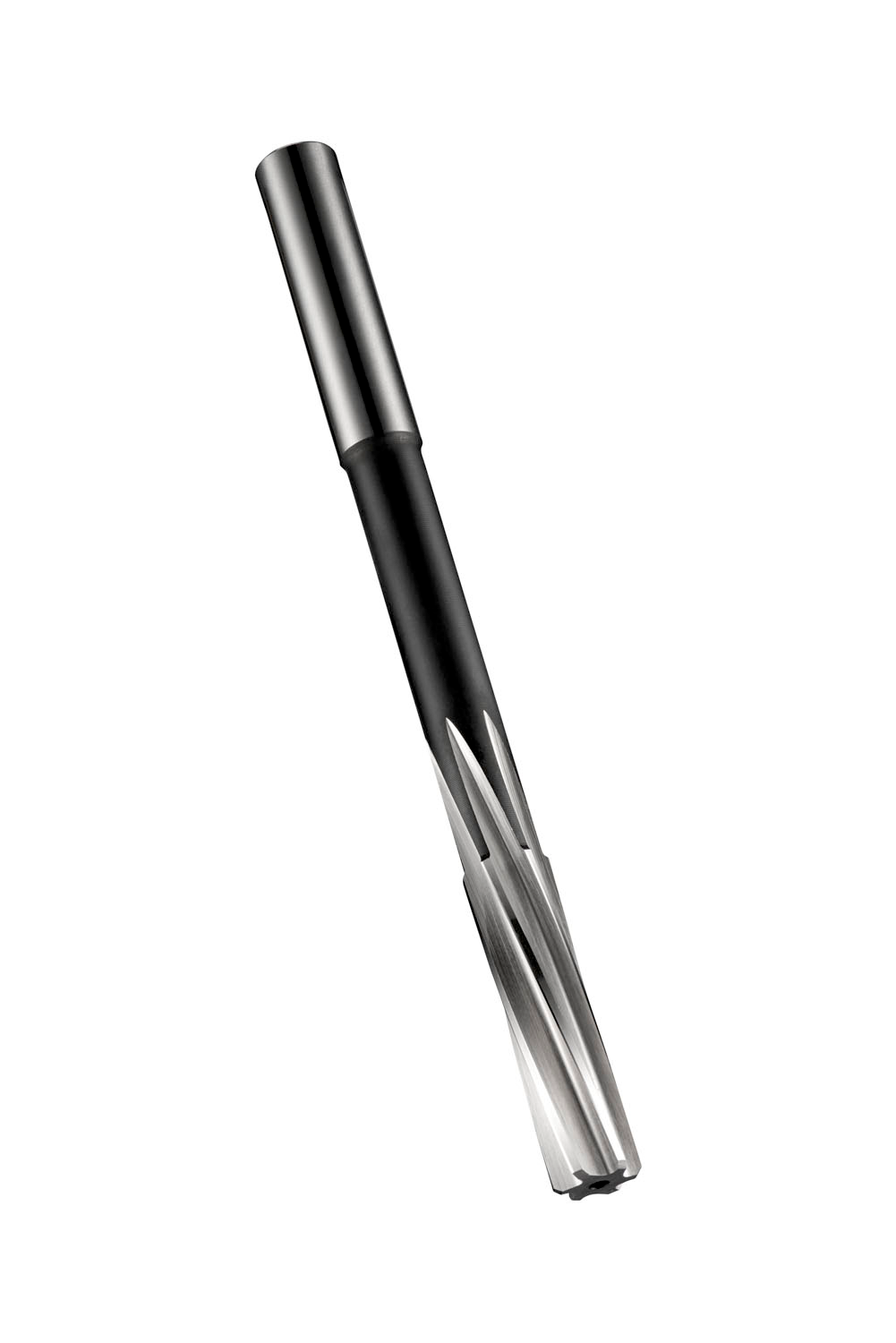

DORMER B1704.02 HSS Reamers

Product Code: B1704.02

$75.35$68.50 Ex. GST

Product Code: B1704.02 SKU B1704.02 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Centesimal reamer with left hand slow spiral flutes and a cylindrical shank, diameter 4.02mm with an overall length of 75mm, a flute length of 19mm and 43mm reach with neck relief, according to DIN 212 standard with a diameter tolerance of 0/+0.004mm to produce holes within diameter-tolerance 4F8 or 4H9, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.0732 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760132821
Product number (SAP): 86012770
Ordering code ANSI: B1704.02
Gross weight – grams: 9
Cutting diameter – millimeter (DC): 4.02 mm
Overall length – millimeter (OAL): 75 mm
Length chip flute – millimeter (LCF): 19 mm
Body length – millimeter (LB): 43 mm
Flute count (NOF): 6
Connection diameter – millimeter (DCON MS): 4 mm
ISO: B1704.02

Brand

DORMER
