DORMER B1706.0 HSS Reamers

Product Code: B1706.0

$84.98$77.25 Ex. GST

Product Code: B1706.0 SKU B1706.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

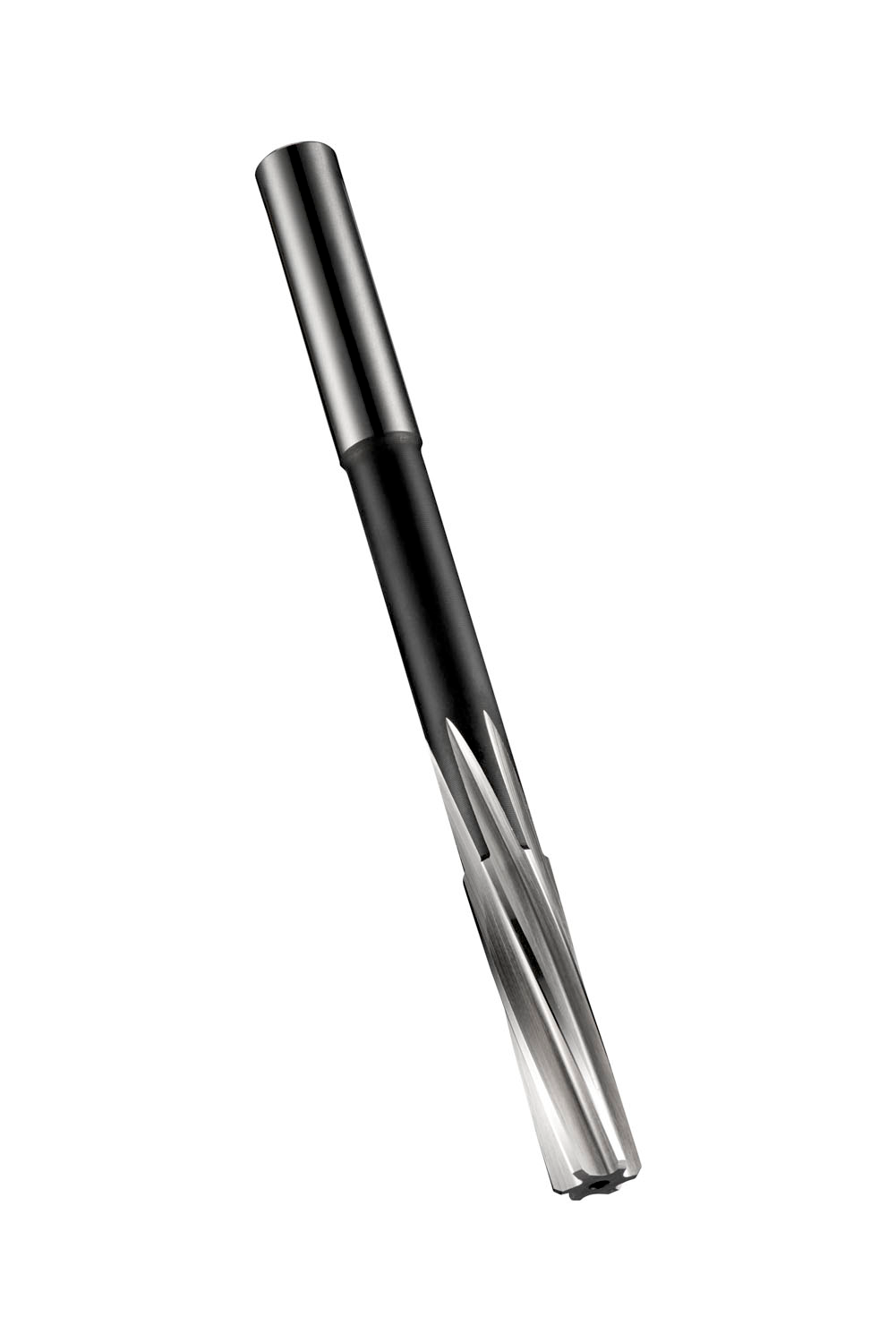

Centesimal reamer with left hand slow spiral flutes and a cylindrical shank, diameter 6.00mm with an overall length of 93mm, a flute length of 26mm and 57mm reach with neck relief, according to DIN 212 standard with a diameter tolerance of 0/+0.005mm to produce holes within diameter-tolerance 6J7, 6J8, 6JS7, 6JS8 or 6JS9, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.0825 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760134771
Product number (SAP): 86012792
Ordering code ANSI: B1706.0
Gross weight – grams: 21
Cutting diameter – millimeter (DC): 6 mm
Overall length – millimeter (OAL): 93 mm
Length chip flute – millimeter (LCF): 26 mm
Body length – millimeter (LB): 57 mm
Flute count (NOF): 6
Connection diameter – millimeter (DCON MS): 5.6 mm
ISO: B1706.0

Brand

DORMER
