DORMER B1706.03 HSS Reamers

Product Code: B1706.03

$84.98$77.25 Ex. GST

Product Code: B1706.03 SKU B1706.03 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

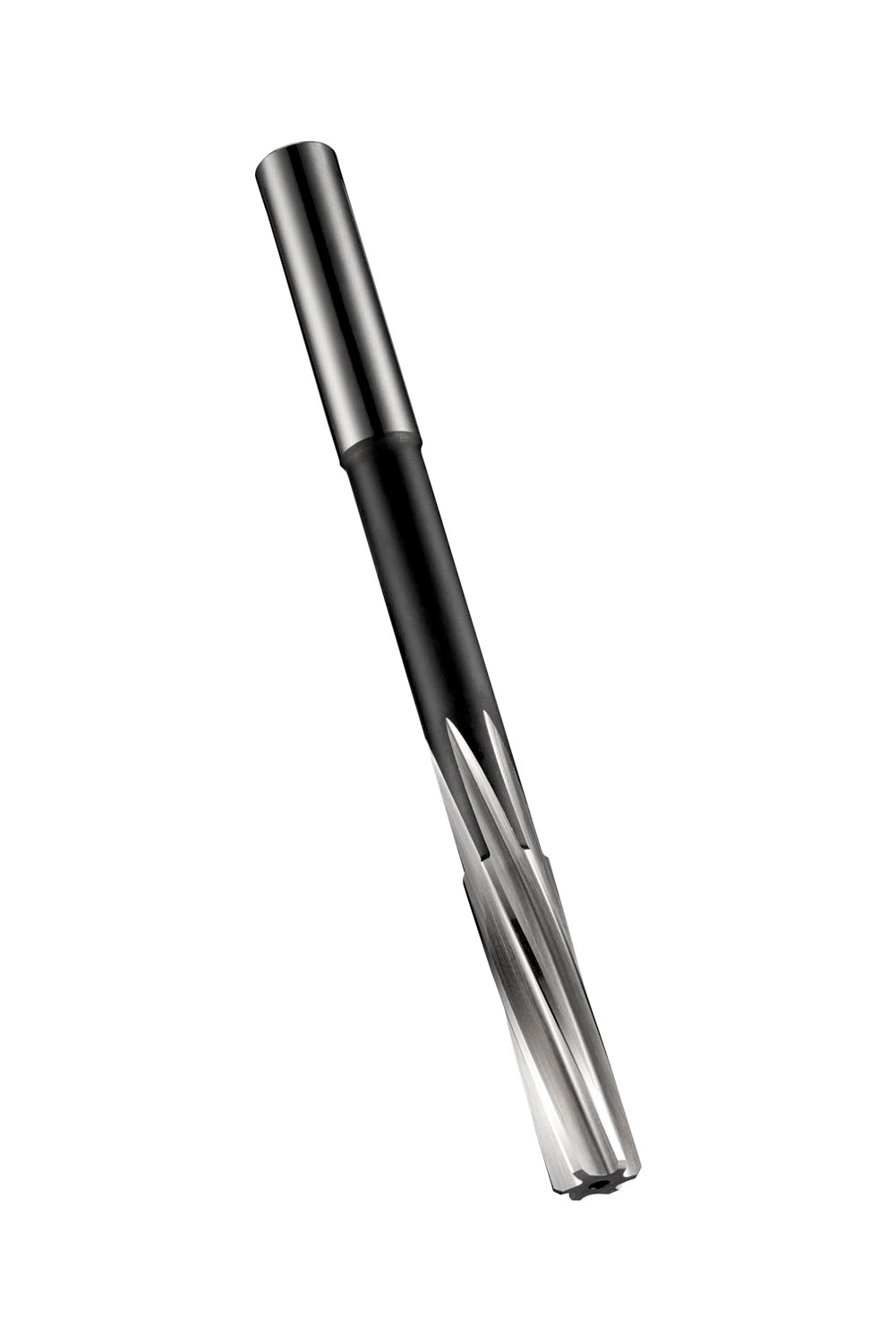

Centesimal reamer with left hand slow spiral flutes and a cylindrical shank, diameter 6.03mm with an overall length of 101mm, a flute length of 28mm and 63mm reach with neck relief, according to DIN 212 standard with a diameter tolerance of 0/+0.005mm to produce holes within diameter-tolerance 6E8, 6F9 or 6H10, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.0825 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760134801
Product number (SAP): 86012795
Ordering code ANSI: B1706.03
Gross weight – grams: 20.7
Cutting diameter – millimeter (DC): 6.03 mm
Overall length – millimeter (OAL): 101 mm
Length chip flute – millimeter (LCF): 28 mm
Body length – millimeter (LB): 63 mm
Flute count (NOF): 6
Connection diameter – millimeter (DCON MS): 6.3 mm
ISO: B1706.03

Brand

DORMER
