DORMER B1708.0 HSS Reamers

Product Code: B1708.0

$91.21$82.92 Ex. GST

Product Code: B1708.0 SKU B1708.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

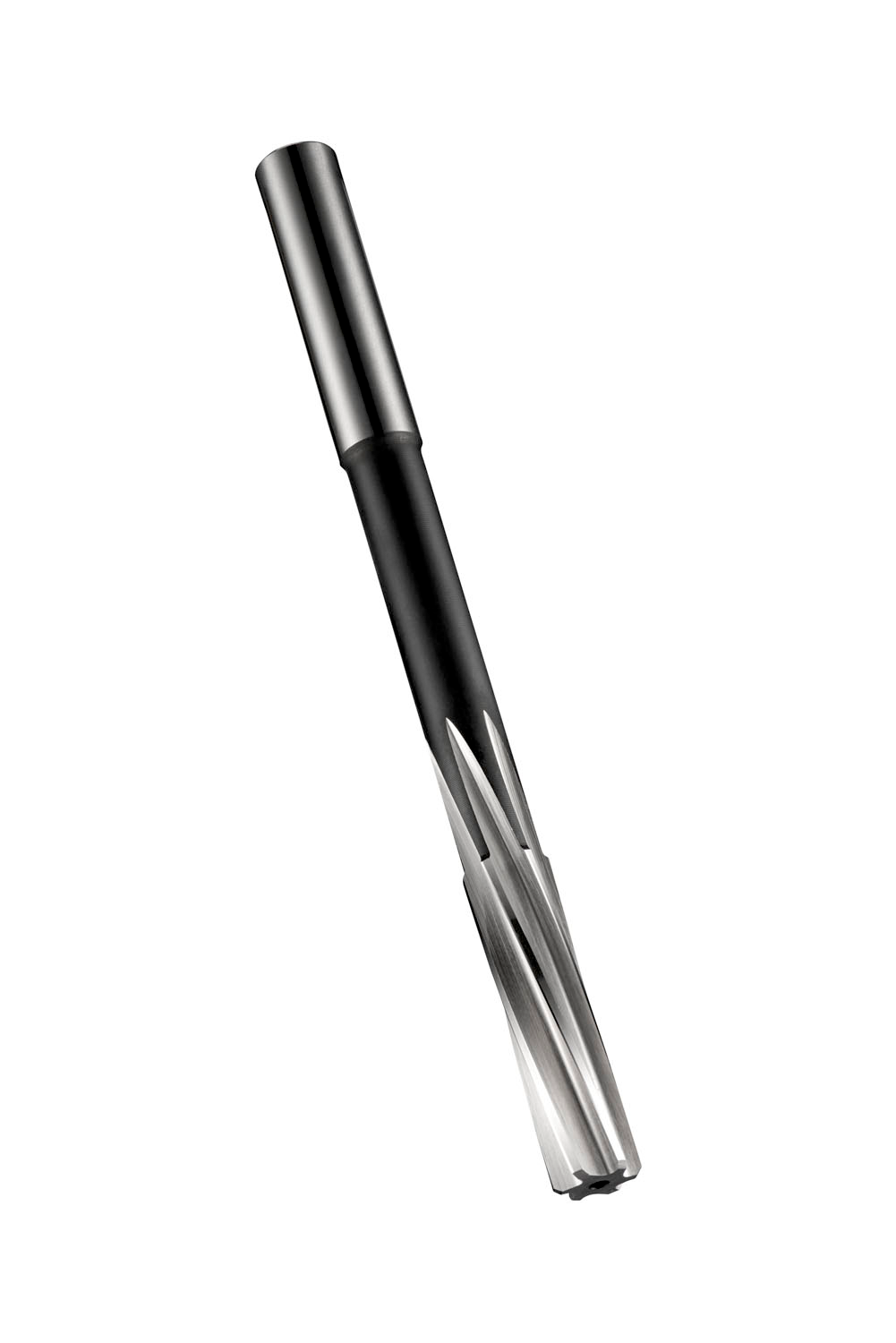

Centesimal reamer with left hand slow spiral flutes and a cylindrical shank, diameter 8.00mm with an overall length of 117mm, a flute length of 33mm and 75mm reach with neck relief, according to DIN 212 standard with a diameter tolerance of 0/+0.005mm to produce holes within diameter-tolerance 8J7, 8J8, 8JS7, 8JS8 or 8JS9, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.0886 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760136959
Product number (SAP): 86012816
Ordering code ANSI: B1708.0
Gross weight – grams: 40
Cutting diameter – millimeter (DC): 8 mm
Overall length – millimeter (OAL): 117 mm
Length chip flute – millimeter (LCF): 33 mm
Body length – millimeter (LB): 75 mm
Flute count (NOF): 6
Connection diameter – millimeter (DCON MS): 8 mm
ISO: B1708.0

Brand

DORMER
