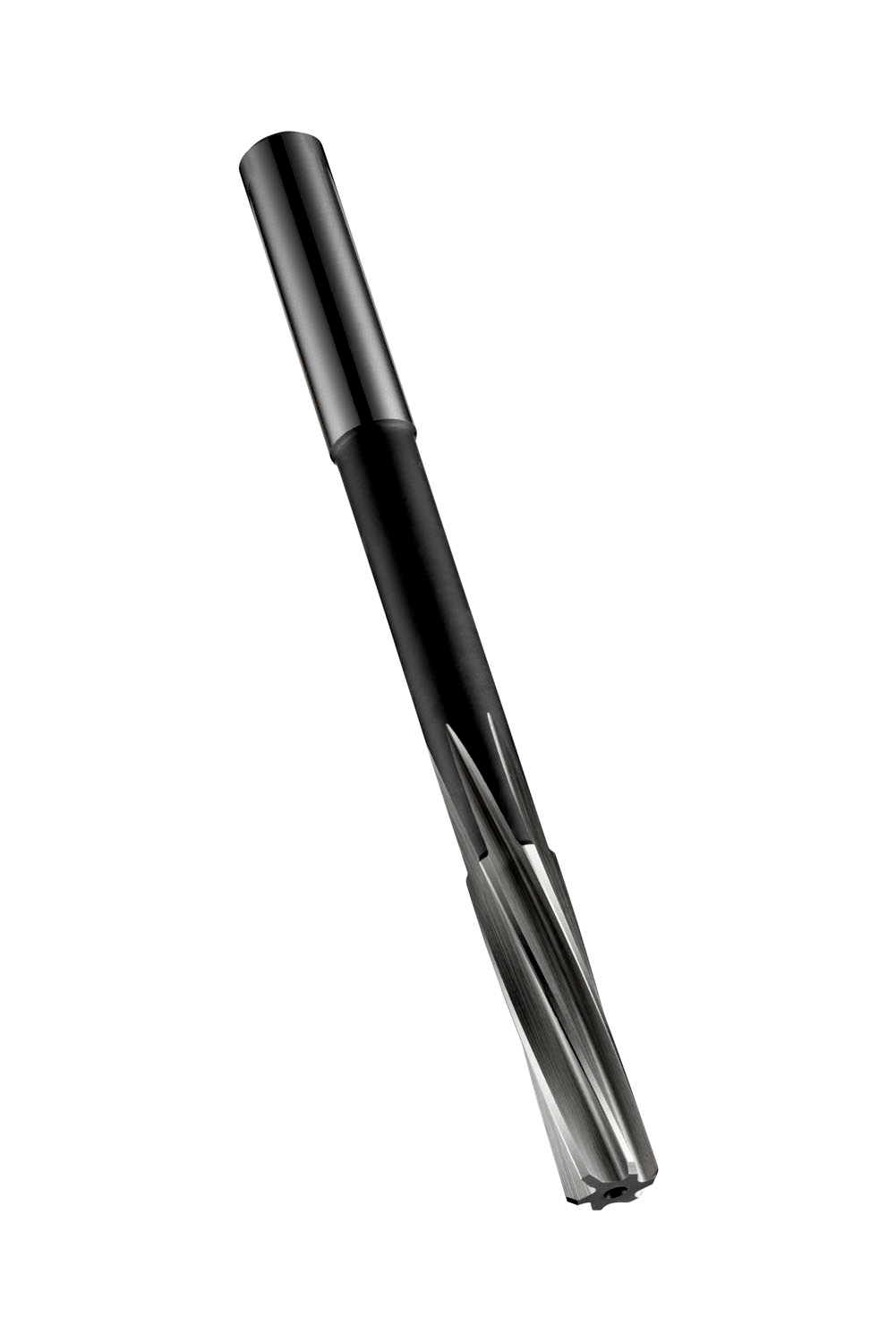

DORMER B18015.0 HSS Reamers

Product Code: B18015.0

$163.15$148.32 Ex. GST

Product Code: B18015.0 SKU B18015.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine reamer with left hand slow spiral flutes and a cylindrical shank, diameter 15.00mm with an overall length of 162mm, a flute length of 50mm and 112mm reach with neck relief, according to DIN 212 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.1584 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760420263
Product number (SAP): 86012850
Ordering code ANSI: B18015.0
Gross weight – grams: 170.9
Cutting diameter – millimeter (DC): 15 mm
Overall length – millimeter (OAL): 162 mm
Length chip flute – millimeter (LCF): 50 mm
Body length – millimeter (LB): 112 mm
Flute count (NOF): 8
Connection diameter – millimeter (DCON MS): 14 mm
Connection diameter tolerance machine side (TCDCONMS): h6
ISO: B18015.0

Brand

DORMER
