DORMER B18017.0 HSS Reamers

Product Code: B18017.0

$200.54$182.31 Ex. GST

Product Code: B18017.0 SKU B18017.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

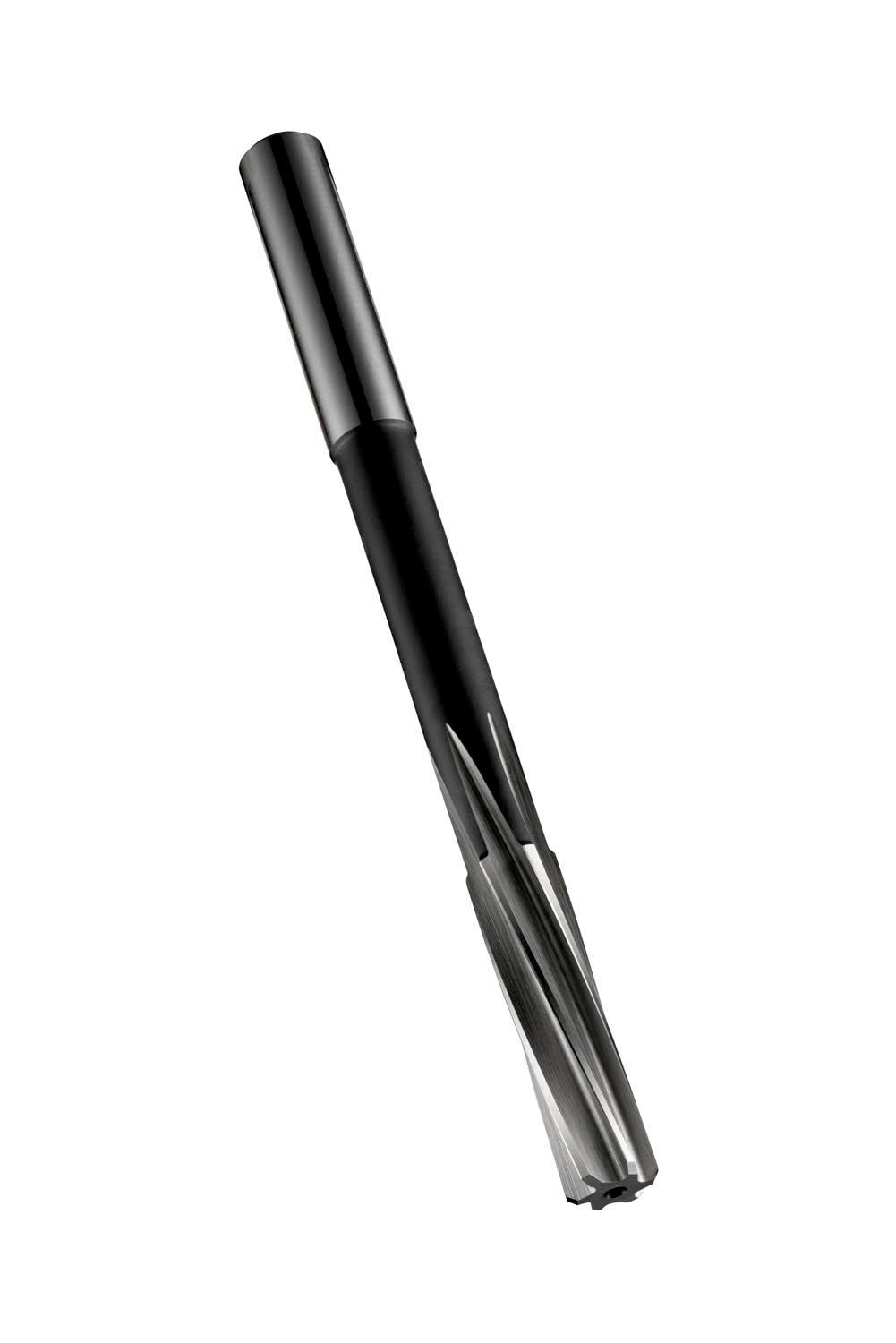

Machine reamer with left hand slow spiral flutes and a cylindrical shank, diameter 17.00mm with an overall length of 175mm, a flute length of 54mm and 123mm reach with neck relief, according to DIN 212 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.1947 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760420287
Product number (SAP): 86012852
Ordering code ANSI: B18017.0
Gross weight – grams: 211.6
Cutting diameter – millimeter (DC): 17 mm
Overall length – millimeter (OAL): 175 mm
Length chip flute – millimeter (LCF): 54 mm
Body length – millimeter (LB): 123 mm
Flute count (NOF): 8
Connection diameter – millimeter (DCON MS): 14 mm
Connection diameter tolerance machine side (TCDCONMS): h6
ISO: B18017.0

Brand

DORMER
