DORMER B18018.0 HSS Reamers

Product Code: B18018.0

$206.21$187.46 Ex. GST

Product Code: B18018.0 SKU B18018.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

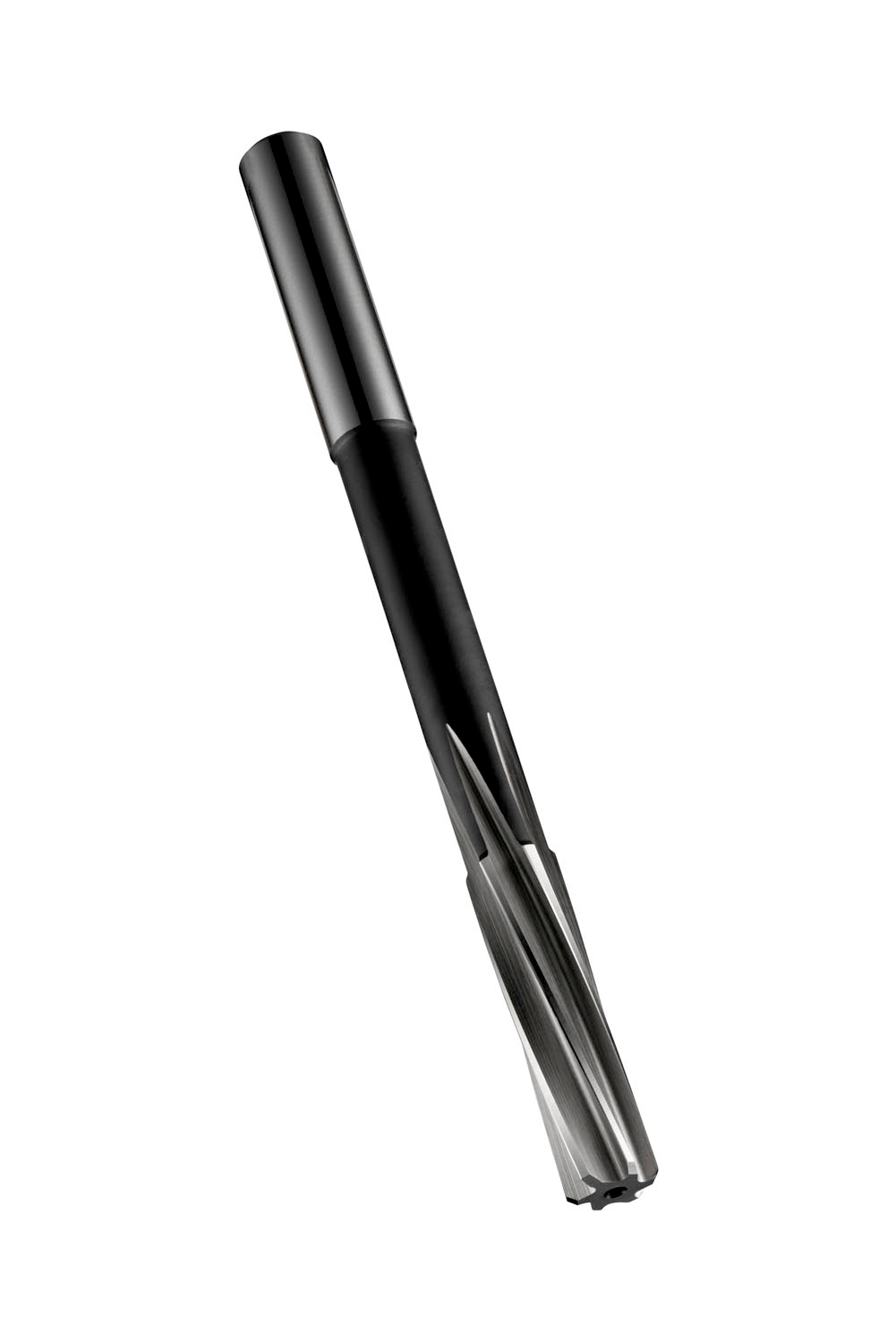

Machine reamer with left hand slow spiral flutes and a cylindrical shank, diameter 18.00mm with an overall length of 182mm, a flute length of 56mm and 130mm reach with neck relief, according to DIN 212 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.2002 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760420294
Product number (SAP): 86012853
Ordering code ANSI: B18018.0
Gross weight – grams: 227.9
Cutting diameter – millimeter (DC): 18 mm
Overall length – millimeter (OAL): 182 mm
Length chip flute – millimeter (LCF): 56 mm
Body length – millimeter (LB): 130 mm
Flute count (NOF): 8
Connection diameter – millimeter (DCON MS): 14 mm
Connection diameter tolerance machine side (TCDCONMS): h6
ISO: B18018.0

Brand

DORMER
