DORMER B1802.4 HSS Reamers

Product Code: B1802.4

$70.82$64.38 Ex. GST

Product Code: B1802.4 SKU B1802.4 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

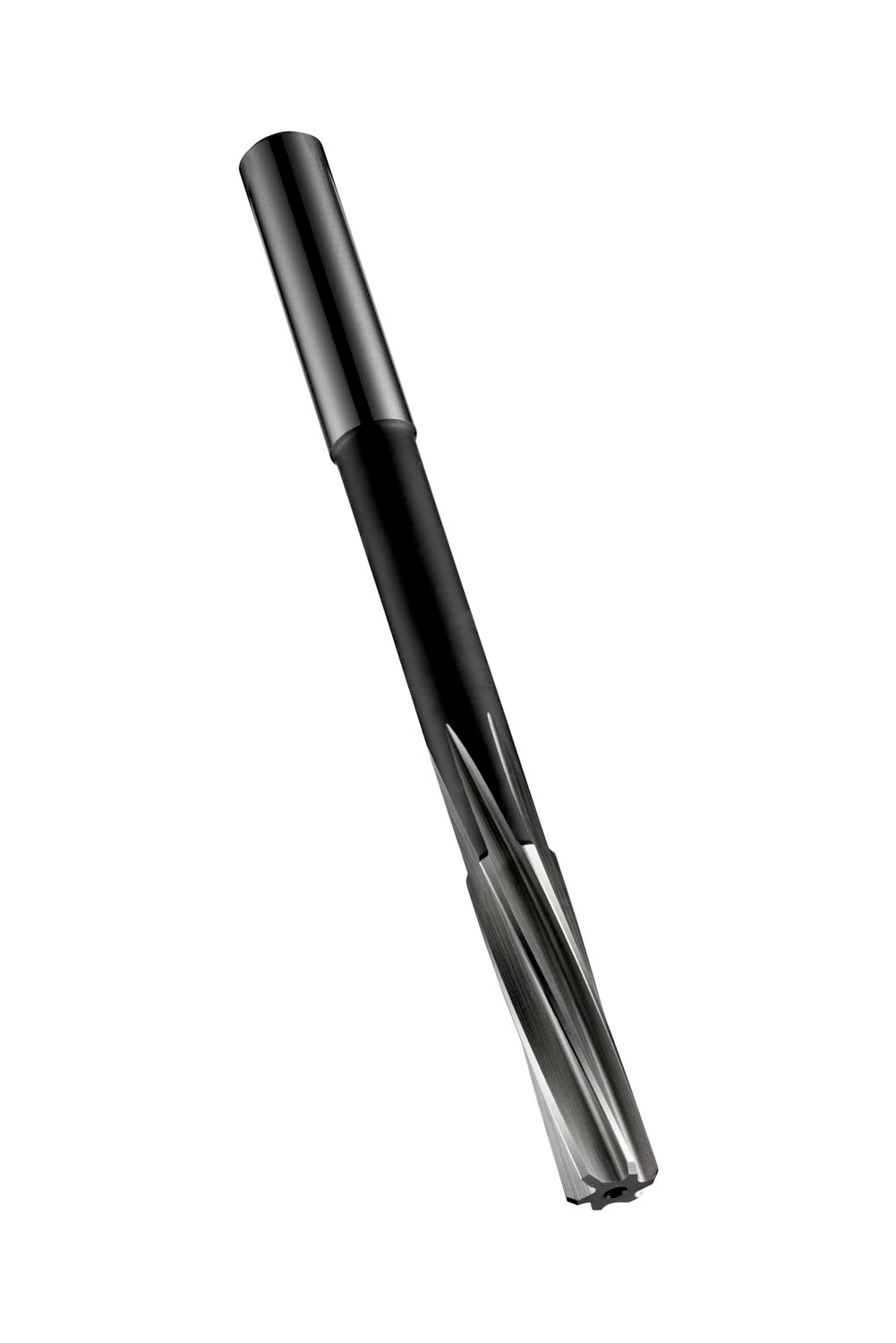

Machine reamer with left hand slow spiral flutes and a cylindrical shank, diameter 2.40mm with an overall length of 57mm, a flute length of 14mm and 28mm reach with neck relief, according to DIN 212 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.0688 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760418840
Product number (SAP): 86012859
Ordering code ANSI: B1802.4
Gross weight – grams: 5.4
Cutting diameter – millimeter (DC): 2.4 mm
Overall length – millimeter (OAL): 57 mm
Length chip flute – millimeter (LCF): 14 mm
Body length – millimeter (LB): 28 mm
Flute count (NOF): 4
Connection diameter – millimeter (DCON MS): 3 mm
Connection diameter tolerance machine side (TCDCONMS): h6
ISO: B1802.4

Brand

DORMER
