DORMER B18020.0 HSS Reamers

Product Code: B18020.0

$231.13$210.12 Ex. GST

Product Code: B18020.0 SKU B18020.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

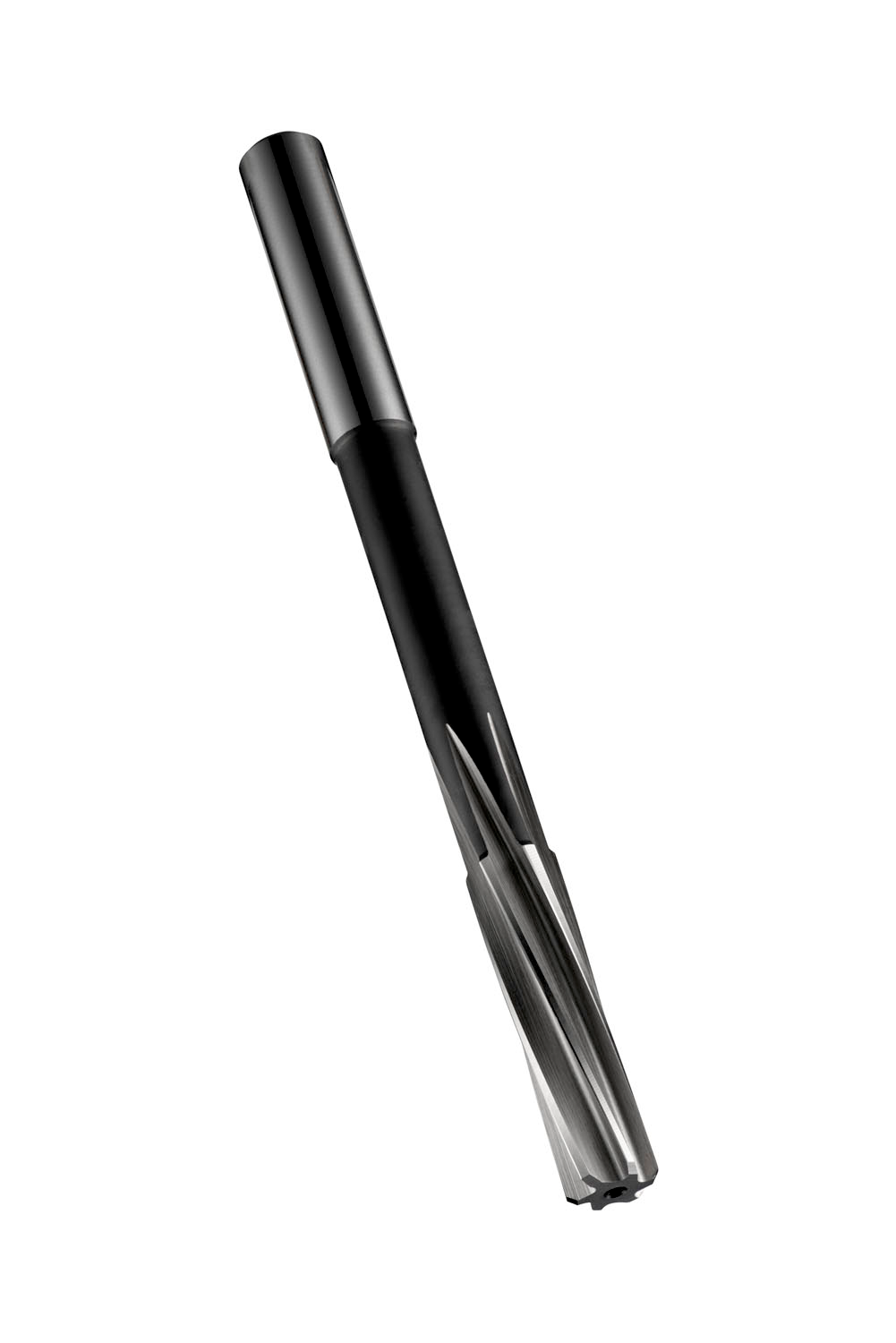

Machine reamer with left hand slow spiral flutes and a cylindrical shank, diameter 20.00mm with an overall length of 195mm, a flute length of 60mm and 137mm reach with neck relief, according to DIN 212 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.2244 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760420317
Product number (SAP): 86012865
Ordering code ANSI: B18020.0
Gross weight – grams: 304.8
Cutting diameter – millimeter (DC): 20 mm
Overall length – millimeter (OAL): 195 mm
Length chip flute – millimeter (LCF): 60 mm
Body length – millimeter (LB): 137 mm
Flute count (NOF): 8
Connection diameter – millimeter (DCON MS): 16 mm
Connection diameter tolerance machine side (TCDCONMS): h6
ISO: B18020.0

Brand

DORMER
