DORMER B1803.3 HSS Reamers

Product Code: B1803.3

$70.82$64.38 Ex. GST

Product Code: B1803.3 SKU B1803.3 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

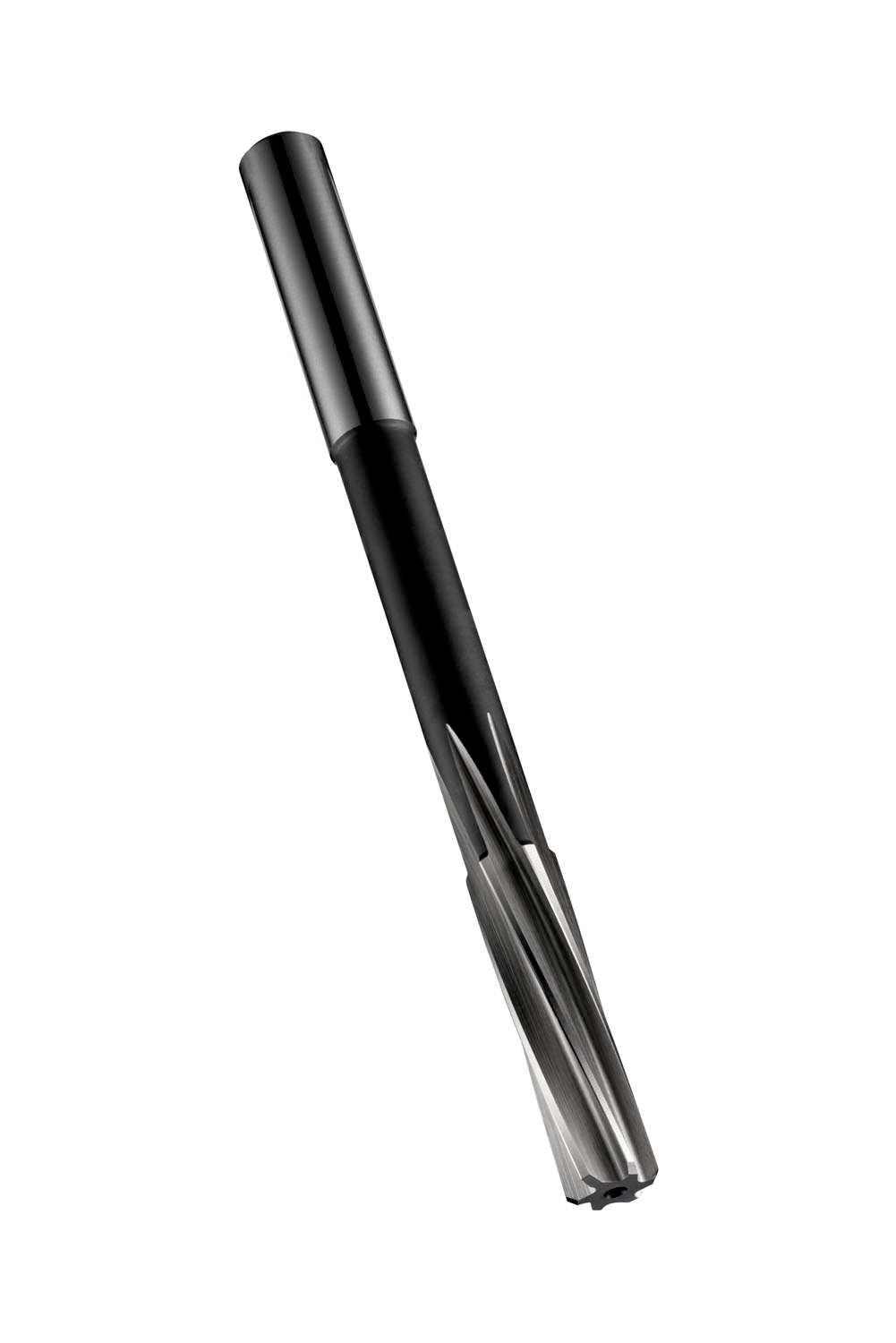

Machine reamer with left hand slow spiral flutes and a cylindrical shank, diameter 3.30mm with an overall length of 65mm, a flute length of 16mm and 35mm reach with neck relief, according to DIN 212 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.0688 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760418932
Product number (SAP): 86012869
Ordering code ANSI: B1803.3
Gross weight – grams: 7.6
Cutting diameter – millimeter (DC): 3.3 mm
Overall length – millimeter (OAL): 65 mm
Length chip flute – millimeter (LCF): 16 mm
Body length – millimeter (LB): 35 mm
Flute count (NOF): 6
Connection diameter – millimeter (DCON MS): 4 mm
Connection diameter tolerance machine side (TCDCONMS): h6
ISO: B1803.3

Brand

DORMER
