DORMER B1804.9 HSS Reamers

Product Code: B1804.9

$79.88$72.62 Ex. GST

Product Code: B1804.9 SKU B1804.9 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

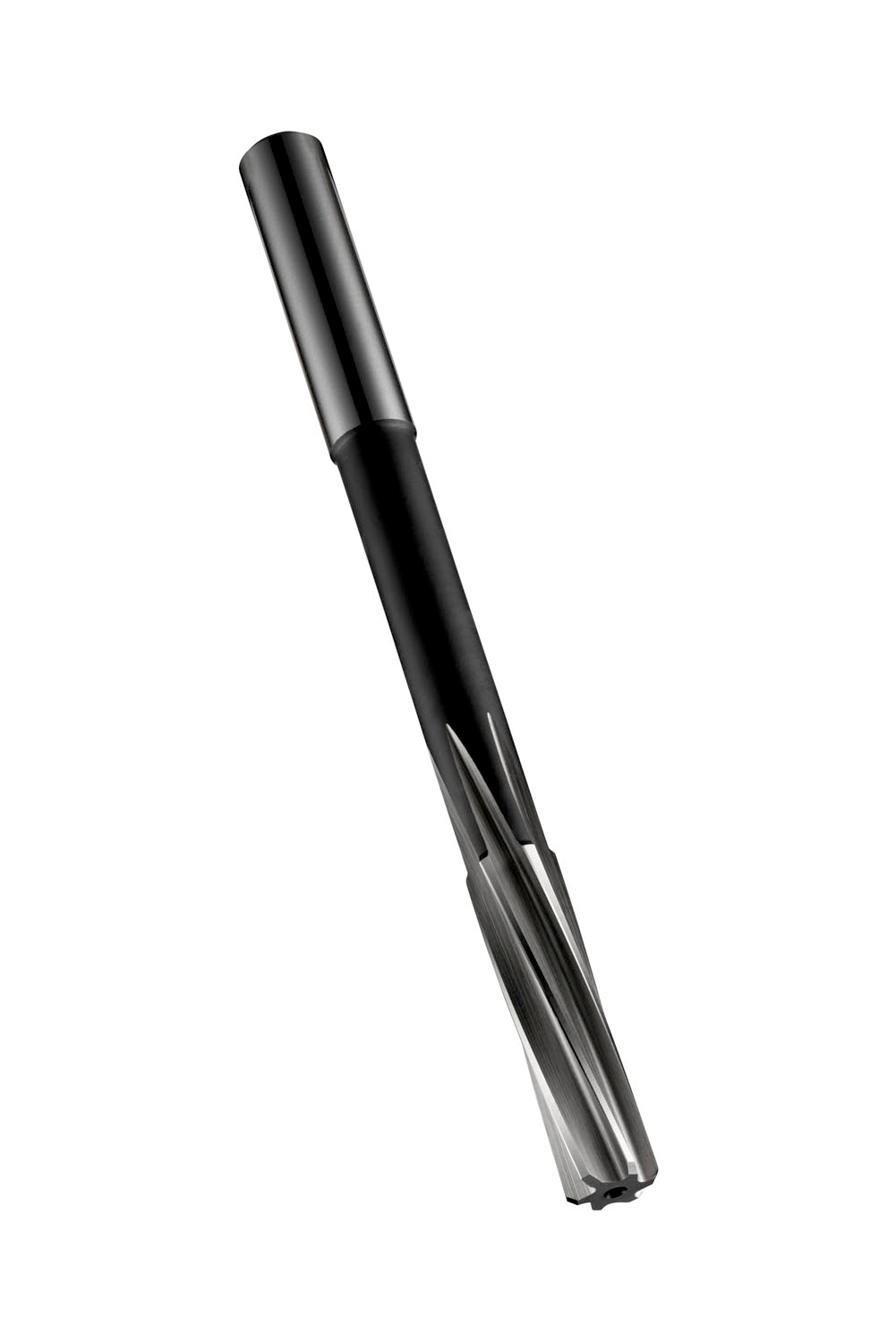

Machine reamer with left hand slow spiral flutes and a cylindrical shank, diameter 4.90mm with an overall length of 86mm, a flute length of 23mm and 52mm reach with neck relief, according to DIN 212 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.0776 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760419090
Product number (SAP): 86012885
Ordering code ANSI: B1804.9
Gross weight – grams: 16.4
Cutting diameter – millimeter (DC): 4.9 mm
Overall length – millimeter (OAL): 86 mm
Length chip flute – millimeter (LCF): 23 mm
Body length – millimeter (LB): 52 mm
Flute count (NOF): 6
Connection diameter – millimeter (DCON MS): 5 mm
Connection diameter tolerance machine side (TCDCONMS): h6
ISO: B1804.9

Brand

DORMER
