DORMER B1806.0 HSS Reamers

Product Code: B1806.0

$64.02$58.20 Ex. GST

Product Code: B1806.0 SKU B1806.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

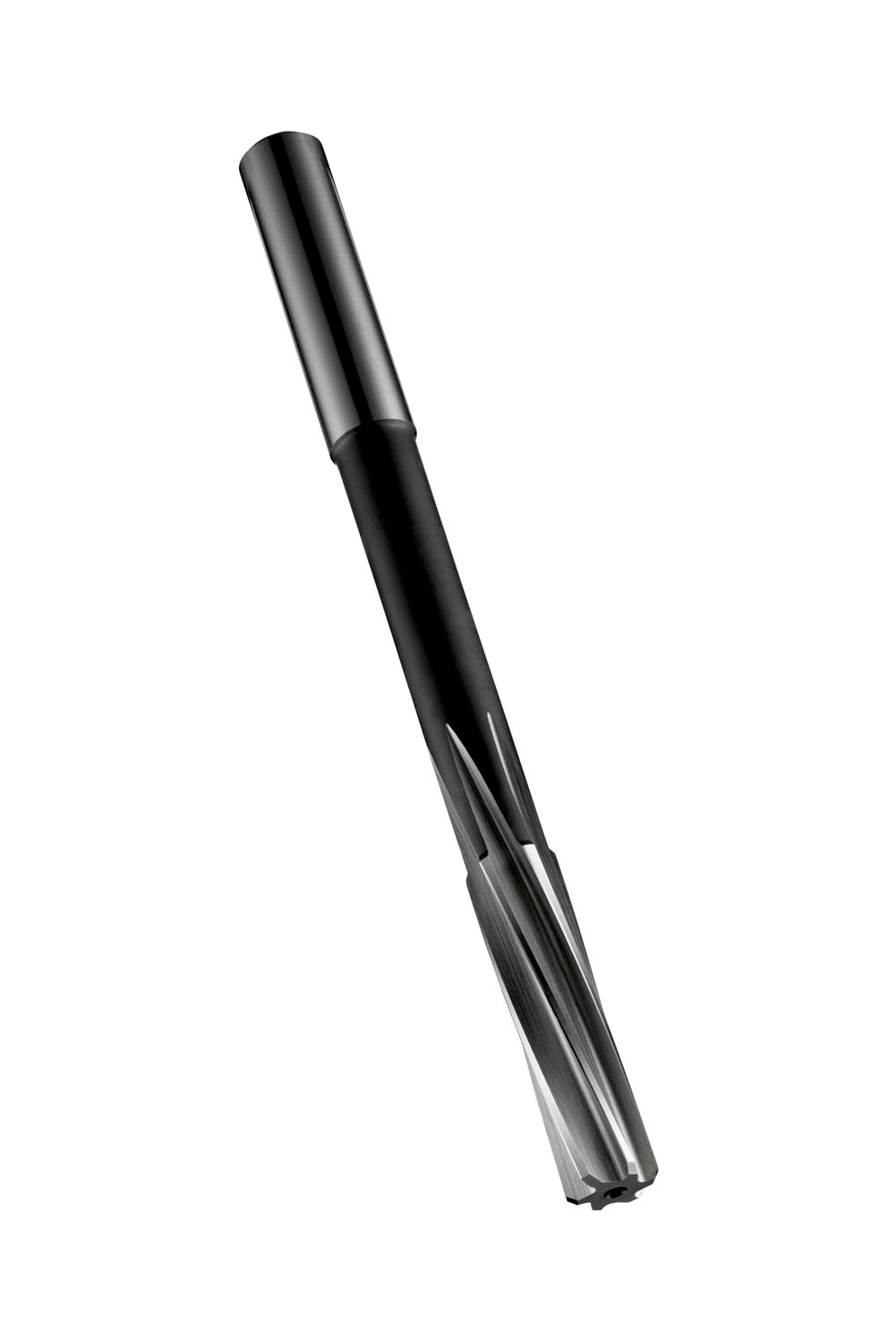

Machine reamer with left hand slow spiral flutes and a cylindrical shank, diameter 6.00mm with an overall length of 93mm, a flute length of 26mm and 57mm reach with neck relief, according to DIN 212 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.0622 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760419205
Product number (SAP): 86012896
Ordering code ANSI: B1806.0
Gross weight – grams: 22.2
Cutting diameter – millimeter (DC): 6 mm
Overall length – millimeter (OAL): 93 mm
Length chip flute – millimeter (LCF): 26 mm
Body length – millimeter (LB): 57 mm
Flute count (NOF): 6
Connection diameter – millimeter (DCON MS): 6 mm
Connection diameter tolerance machine side (TCDCONMS): h6
ISO: B1806.0

Brand

DORMER
