DORMER B1806.8 HSS Reamers

Product Code: B1806.8

$79.88$72.62 Ex. GST

Product Code: B1806.8 SKU B1806.8 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

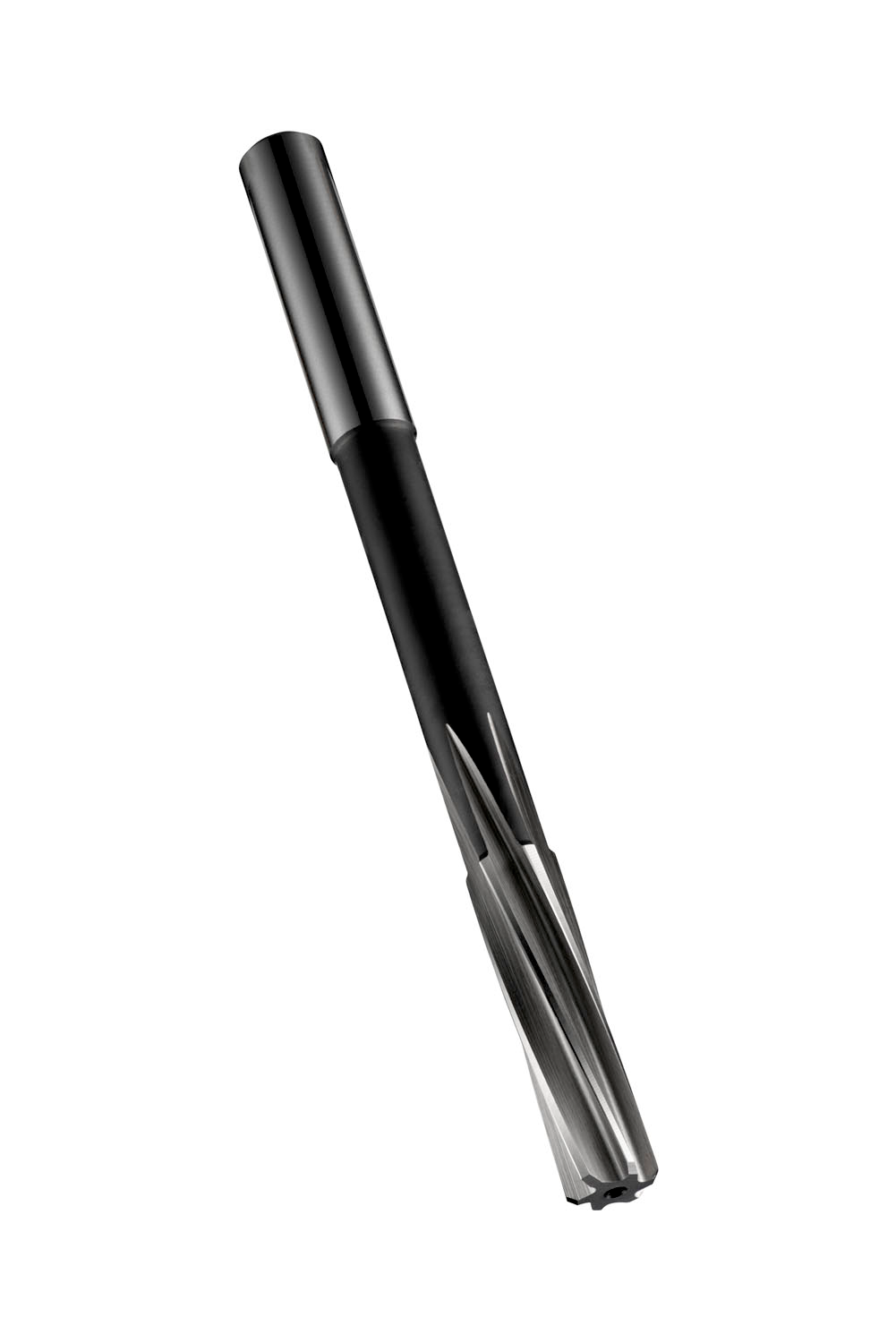

Machine reamer with left hand slow spiral flutes and a cylindrical shank, diameter 6.80mm with an overall length of 109mm, a flute length of 31mm and 69mm reach with neck relief, according to DIN 212 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.0776 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760419281
Product number (SAP): 86012904
Ordering code ANSI: B1806.8
Gross weight – grams: 33.7
Cutting diameter – millimeter (DC): 6.8 mm
Overall length – millimeter (OAL): 109 mm
Length chip flute – millimeter (LCF): 31 mm
Body length – millimeter (LB): 69 mm
Flute count (NOF): 6
Connection diameter – millimeter (DCON MS): 8 mm
Connection diameter tolerance machine side (TCDCONMS): h6
ISO: B1806.8

Brand

DORMER
