DORMER B1808.0 HSS Reamers

Product Code: B1808.0

$79.88$72.62 Ex. GST

Product Code: B1808.0 SKU B1808.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

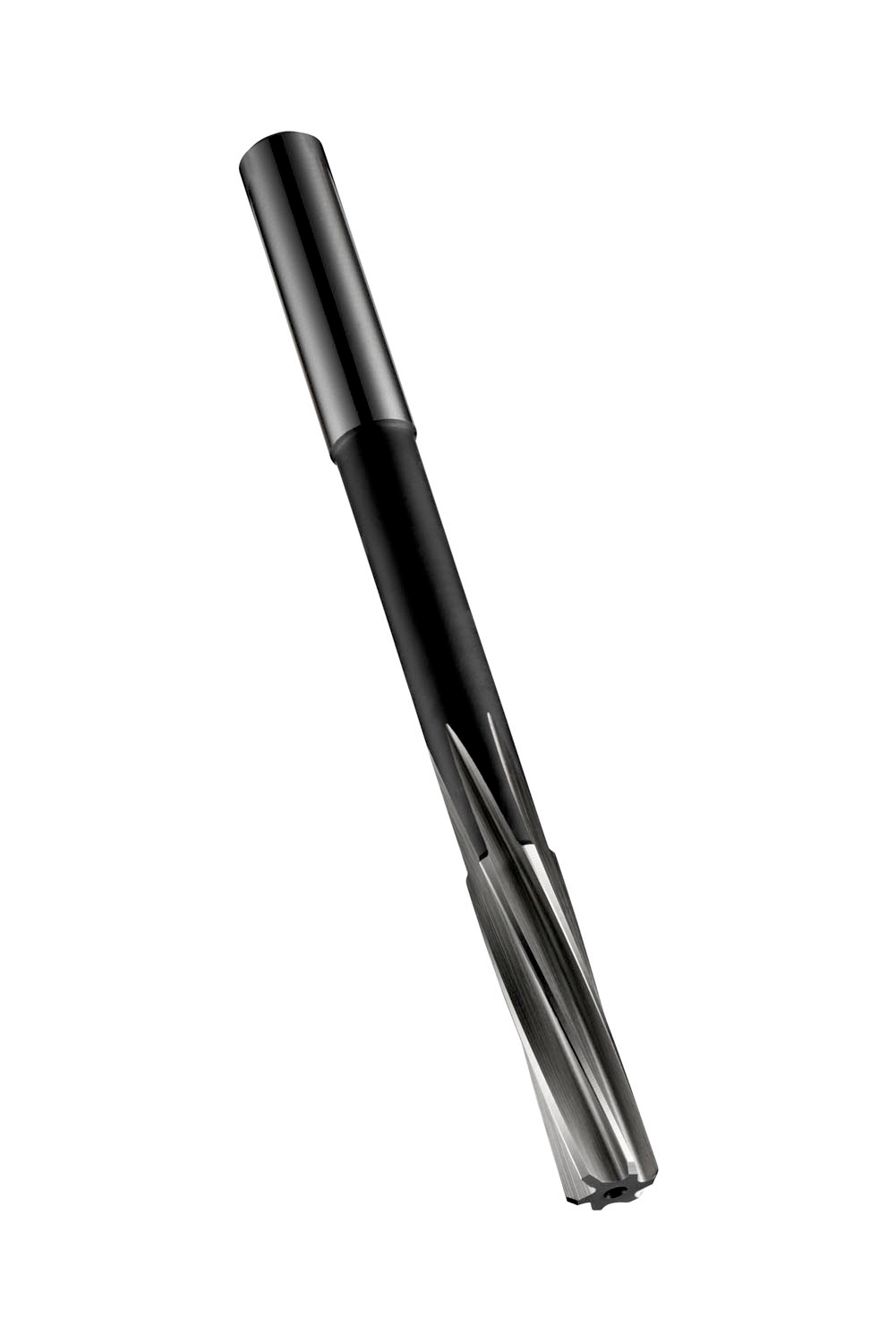

Machine reamer with left hand slow spiral flutes and a cylindrical shank, diameter 8.00mm with an overall length of 117mm, a flute length of 33mm and 75mm reach with neck relief, according to DIN 212 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.0776 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760419403
Product number (SAP): 86012916
Ordering code ANSI: B1808.0
Gross weight – grams: 40.6
Cutting diameter – millimeter (DC): 8 mm
Overall length – millimeter (OAL): 117 mm
Length chip flute – millimeter (LCF): 33 mm
Body length – millimeter (LB): 75 mm
Flute count (NOF): 6
Connection diameter – millimeter (DCON MS): 8 mm
Connection diameter tolerance machine side (TCDCONMS): h6
ISO: B1808.0

Brand

DORMER
