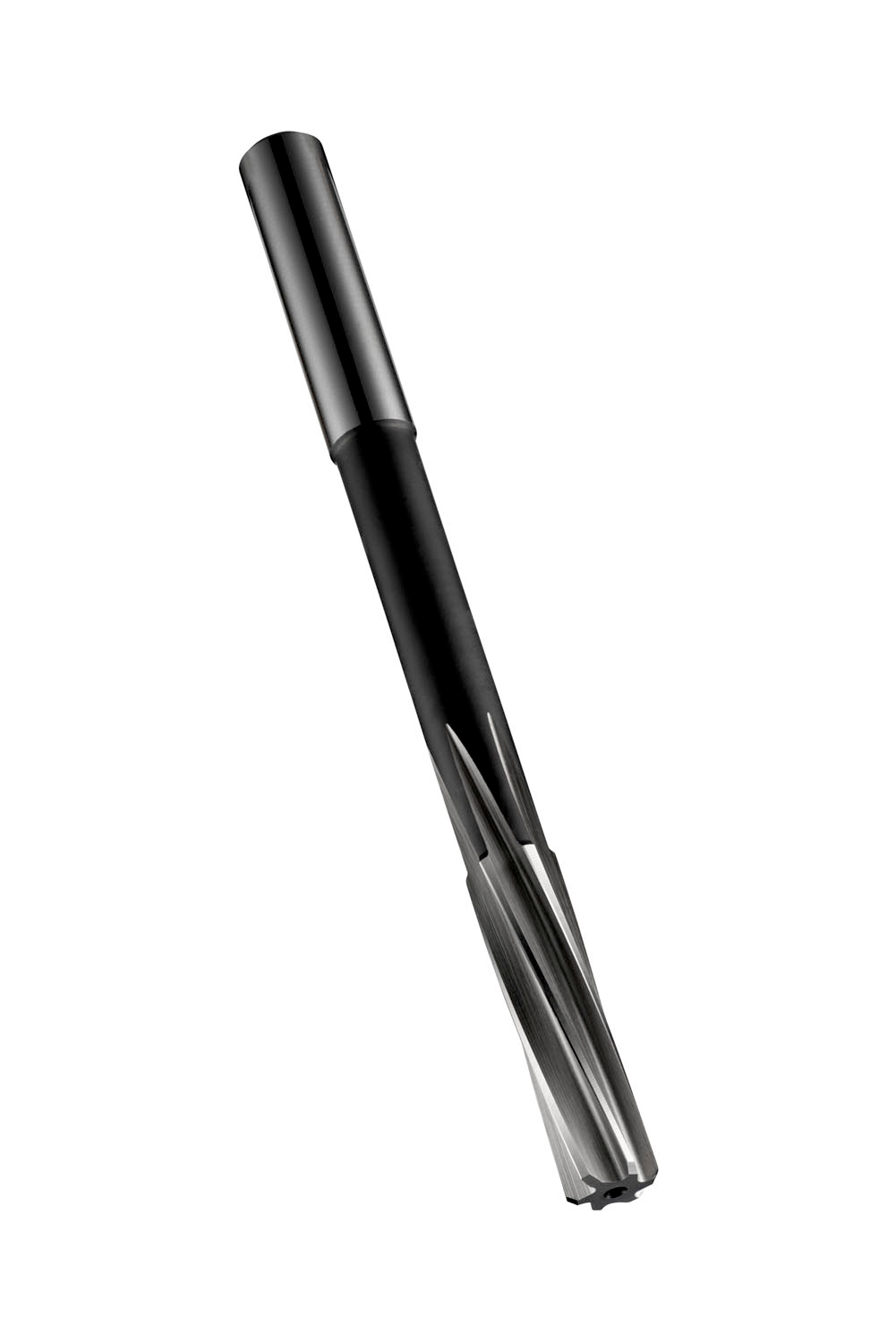

DORMER B1809.6 HSS Reamers

Product Code: B1809.6

$108.21$98.37 Ex. GST

Product Code: B1809.6 SKU B1809.6 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine reamer with left hand slow spiral flutes and a cylindrical shank, diameter 9.60mm with an overall length of 133mm, a flute length of 38mm and 87mm reach with neck relief, according to DIN 212 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.1051 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760420447
Product number (SAP): 86012932
Ordering code ANSI: B1809.6
Gross weight – grams: 69.7
Cutting diameter – millimeter (DC): 9.6 mm
Overall length – millimeter (OAL): 133 mm
Length chip flute – millimeter (LCF): 38 mm
Body length – millimeter (LB): 87 mm
Flute count (NOF): 6
Connection diameter – millimeter (DCON MS): 10 mm
Connection diameter tolerance machine side (TCDCONMS): h6
ISO: B1809.6

Brand

DORMER
