DORMER B3011/4 HSS Reamers

Product Code: B3011/4

$139.36$126.69 Ex. GST

Product Code: B3011/4 SKU B3011/4 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

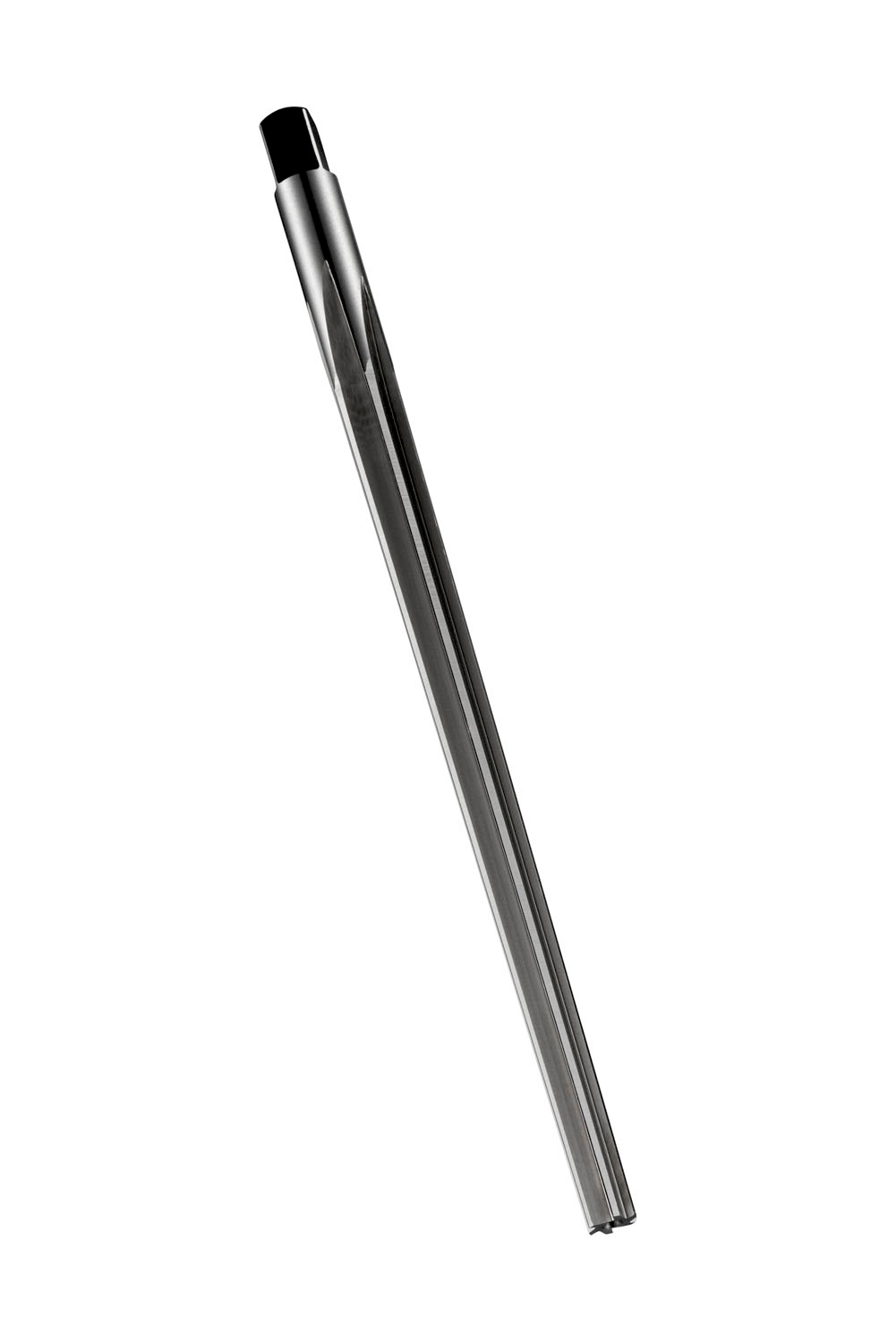

Taper pin hand reamer with straight flutes and a square drive, small end diameter 4.64mm with an overall length of 117mm and a flute length of 86mm 6.43mm large end diameter, according to BS 328 standard for reaming pin holes with a 1:48 taper into which 1/4″ taper pins will fit, HSS with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.1353 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760182376
Product number (SAP): 86012938
Ordering code ANSI: B3011/4
Gross weight – grams: 19.6
Nominal diameter: 1/4
Cutting diameter step – millimeter: 4.64 mm
Cutting diameter second cutting step – millimeters (DC_2): 6.43 mm
Overall length – millimeter (OAL): 117 mm
Length chip flute – millimeter (LCF): 86 mm
Flute count (NOF): 6
Clamping width – millimeter (WSC): 5 mm
Connection diameter – millimeter (DCON MS): 6.43 mm
ISO: B3011/4

Brand

DORMER
