DORMER B3011/8 HSS Reamers

Product Code: B3011/8

$104.81$95.28 Ex. GST

Product Code: B3011/8 SKU B3011/8 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

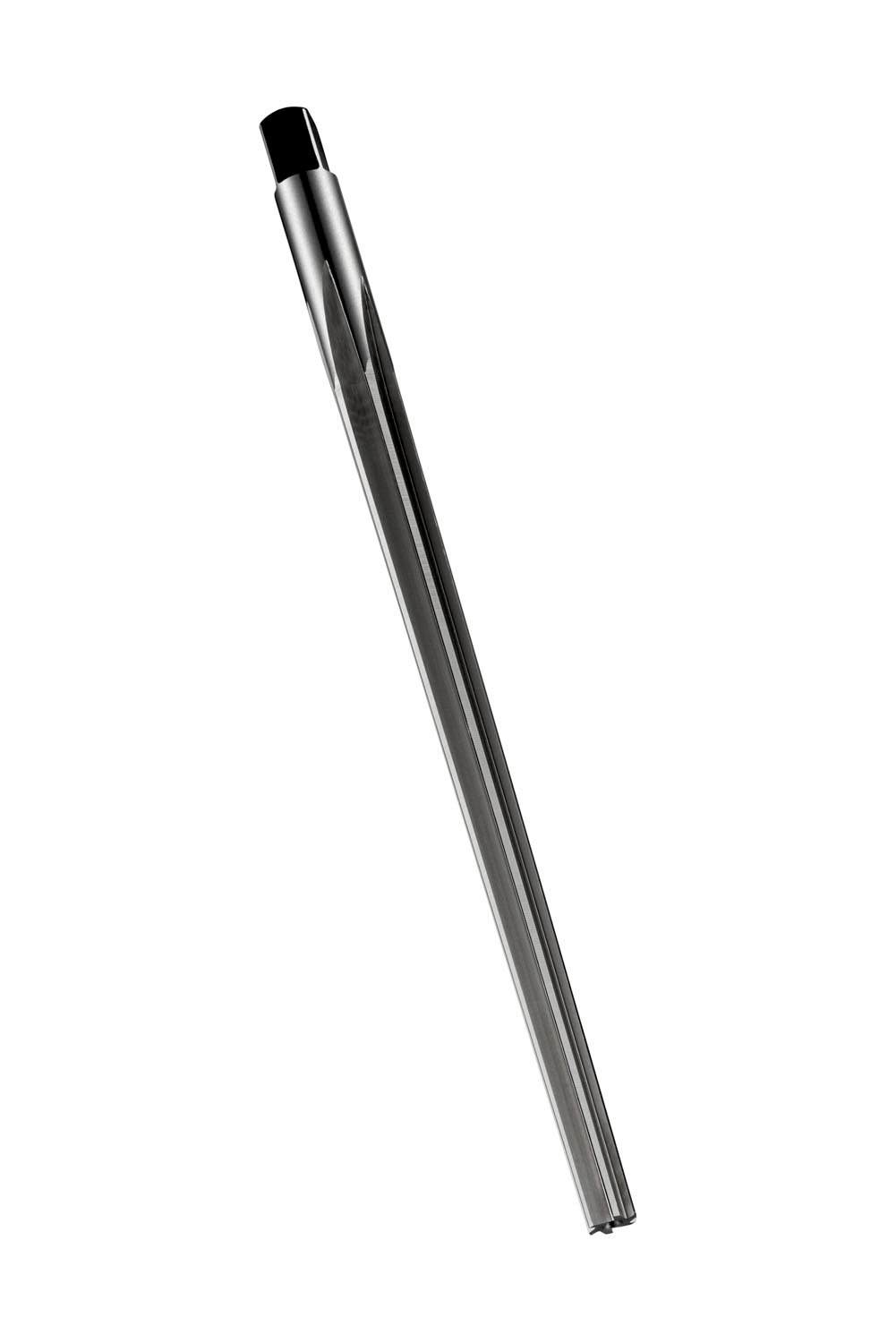

Taper pin hand reamer with straight flutes and a square drive, small end diameter 2.30mm with an overall length of 70mm and a flute length of 44mm 3.23mm large end diameter, according to BS 328 standard for reaming pin holes with a 1:48 taper into which 1/8″ taper pins will fit, HSS with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.1018 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760182314
Product number (SAP): 86012939
Ordering code ANSI: B3011/8
Gross weight – grams: 6
Nominal diameter: 1/8
Cutting diameter step – millimeter: 2.3 mm
Cutting diameter second cutting step – millimeters (DC_2): 3.23 mm
Overall length – millimeter (OAL): 70 mm
Length chip flute – millimeter (LCF): 44 mm
Flute count (NOF): 4
Clamping width – millimeter (WSC): 2.5 mm
Connection diameter – millimeter (DCON MS): 3.23 mm
ISO: B3011/8

Brand

DORMER
