DORMER B3013/32 HSS Reamers

Product Code: B3013/32

$126.90$115.36 Ex. GST

Product Code: B3013/32 SKU B3013/32 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

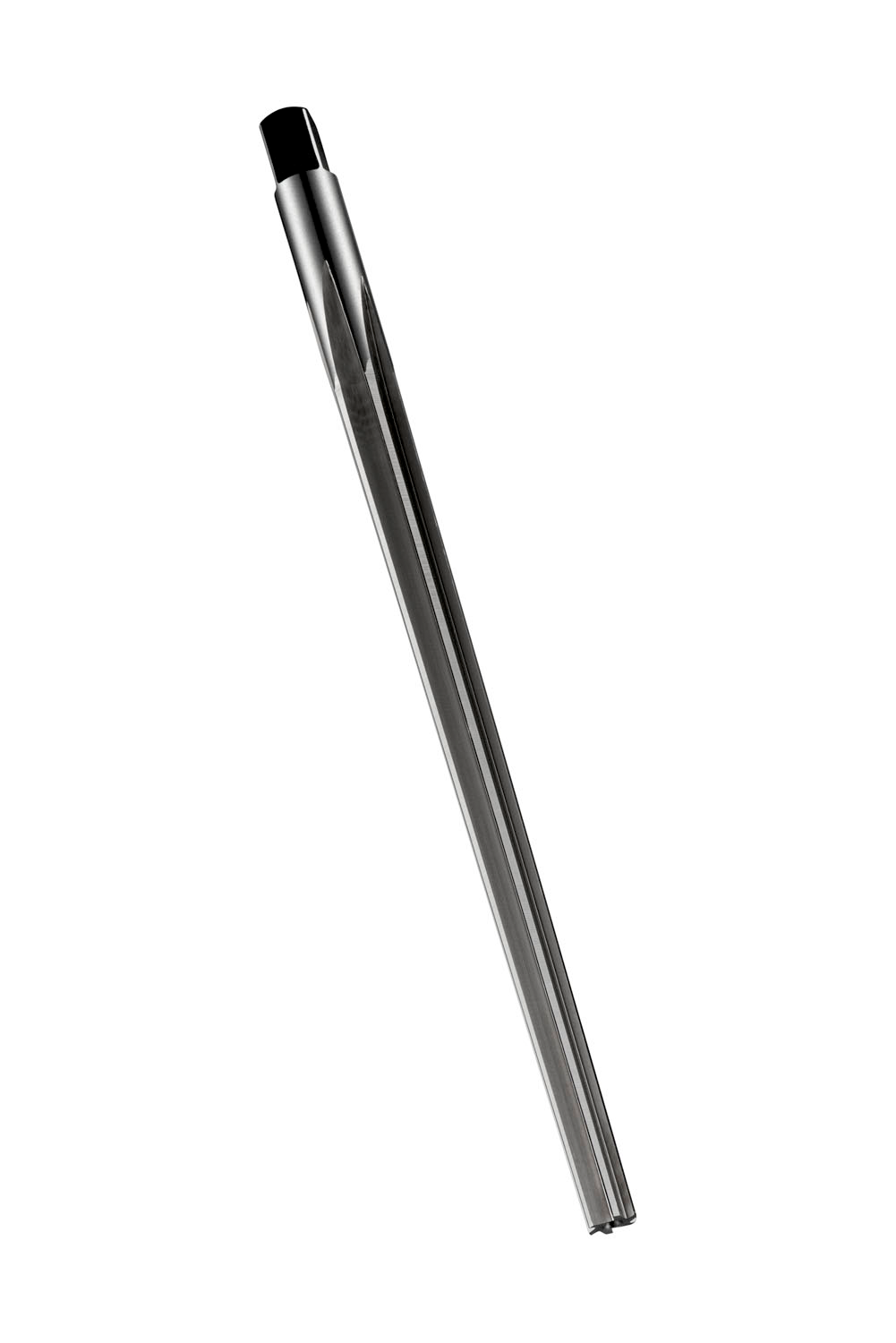

Taper pin hand reamer with straight flutes and a square drive, small end diameter 1.75mm with an overall length of 57mm and a flute length of 32mm 2.41mm large end diameter, according to BS 328 standard for reaming pin holes with a 1:48 taper into which 3/32″ taper pins will fit, HSS with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.1232 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760182291
Product number (SAP): 86012944
Ordering code ANSI: B3013/32
Gross weight – grams: 4.2
Nominal diameter: 3/32
Cutting diameter step – millimeter: 1.75 mm
Cutting diameter second cutting step – millimeters (DC_2): 2.41 mm
Overall length – millimeter (OAL): 57 mm
Length chip flute – millimeter (LCF): 32 mm
Flute count (NOF): 4
Clamping width – millimeter (WSC): 2 mm
Connection diameter – millimeter (DCON MS): 2.41 mm
ISO: B3013/32

Brand

DORMER
