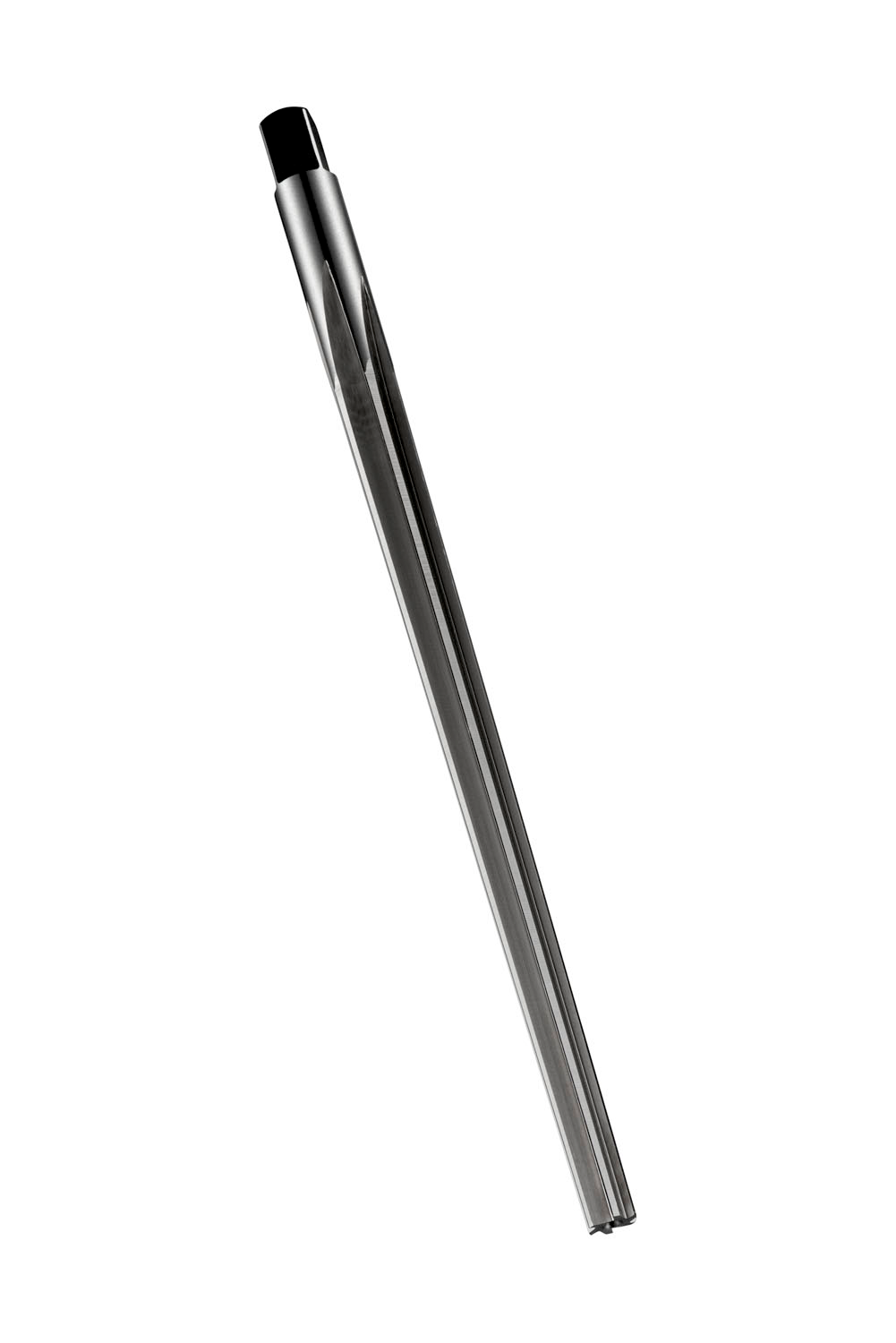

DORMER B3015/16 HSS Reamers

Product Code: B3015/16

$163.15$148.32 Ex. GST

Product Code: B3015/16 SKU B3015/16 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Taper pin hand reamer with straight flutes and a square drive, small end diameter 5.84mm with an overall length of 143mm and a flute length of 105mm 8.03mm large end diameter, according to BS 328 standard for reaming pin holes with a 1:48 taper into which 5/16″ taper pins will fit, HSS with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.1584 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760182390
Product number (SAP): 86012947
Ordering code ANSI: B3015/16
Gross weight – grams: 40
Nominal diameter: 5/16
Cutting diameter step – millimeter: 5.84 mm
Cutting diameter second cutting step – millimeters (DC_2): 8.03 mm
Overall length – millimeter (OAL): 143 mm
Length chip flute – millimeter (LCF): 105 mm
Flute count (NOF): 6
Clamping width – millimeter (WSC): 6.3 mm
Connection diameter – millimeter (DCON MS): 8.03 mm
ISO: B3015/16

Brand

DORMER
