DORMER B40018.0 Carbide Reamers

Product Code: B40018.0

$556.30$505.73 Ex. GST

Product Code: B40018.0 SKU B40018.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

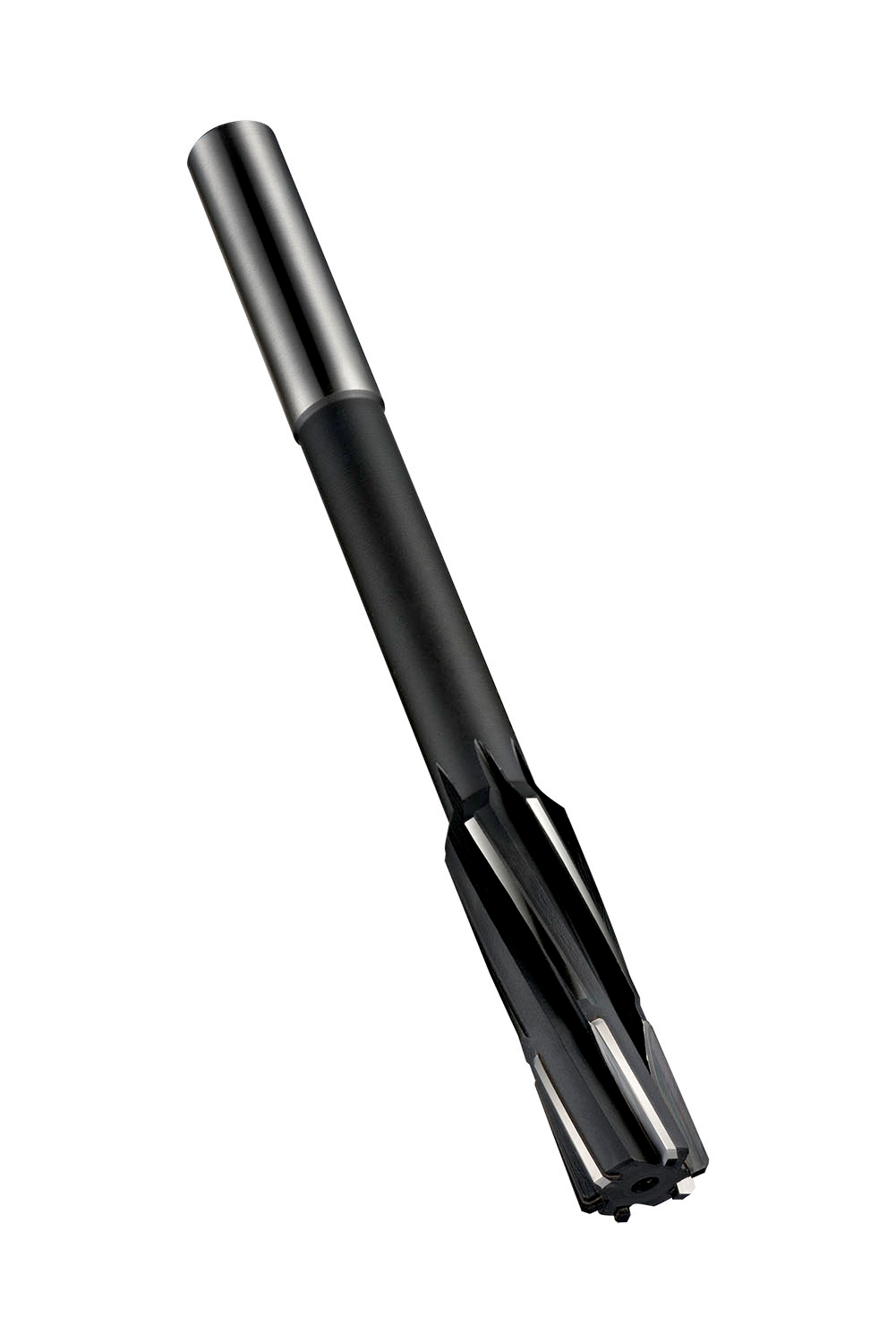

Machine reamer with left hand slow spiral flutes which are extremely unequally spaced and a cylindrical shank, diameter 18.00mm with an overall length of 182mm, a flute length of 56mm and 137mm reach with neck relief, according to DIN 8093 standard for reaming precise holes within H7 tolerance, solid carbide with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.5401 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760144312
Product number (SAP): 86013025
Ordering code ANSI: B40018.0
Gross weight – grams: 234
Cutting diameter – millimeter (DC): 18 mm
Overall length – millimeter (OAL): 182 mm
Length chip flute – millimeter (LCF): 56 mm
Body length – millimeter (LB): 137 mm
Flute count (NOF): 6
Connection diameter – millimeter (DCON MS): 14 mm
Connection diameter tolerance machine side (TCDCONMS): h6
ISO: B40018.0
