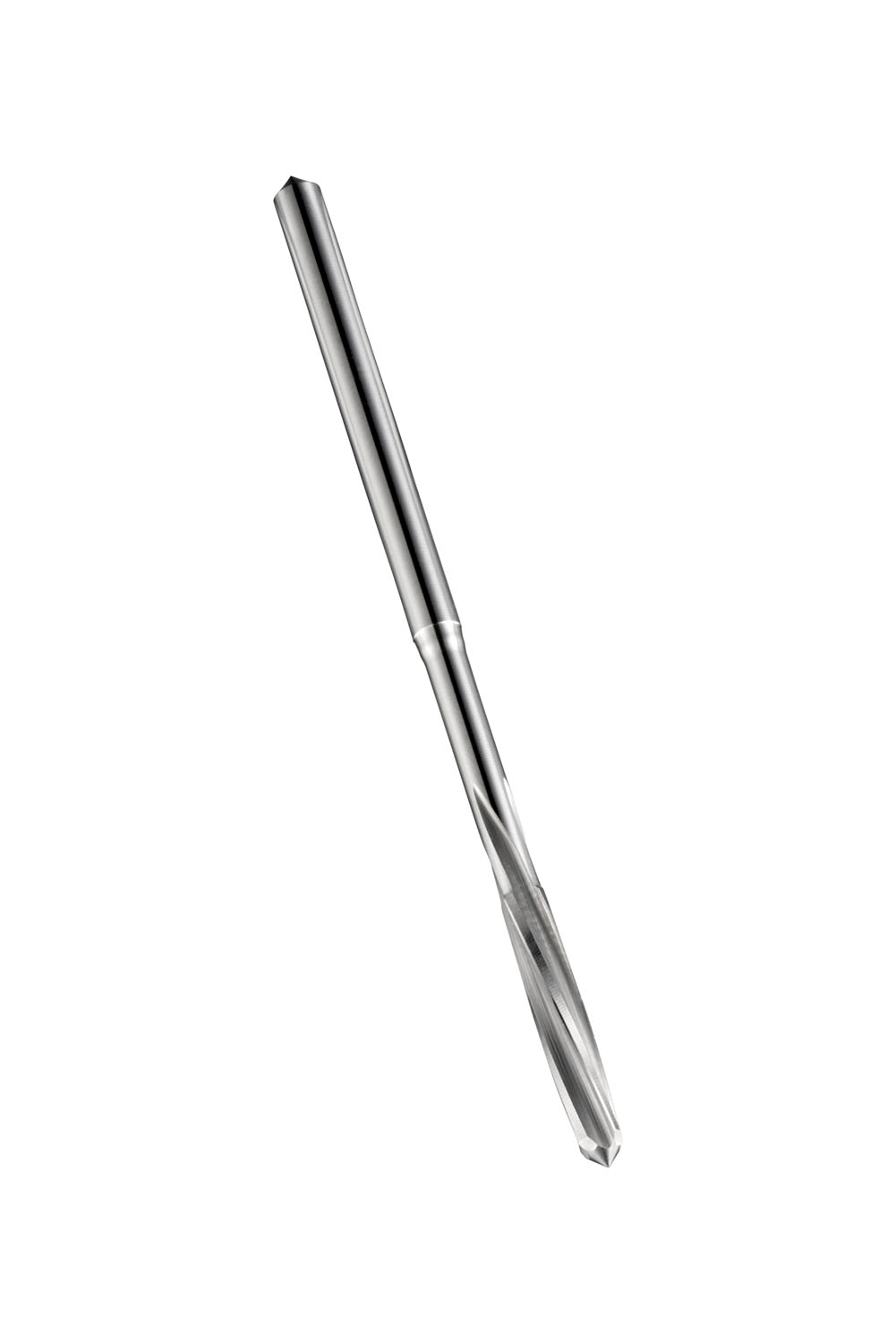

DORMER B4002.0 Carbide Reamers

Product Code: B4002.0

$93.48$84.98 Ex. GST

Product Code: B4002.0 SKU B4002.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine reamer with left hand slow spiral flutes which are extremely unequally spaced and a cylindrical shank, diameter 2.00mm with an overall length of 49mm, a flute length of 11mm and 24mm reach with neck relief, according to DIN 8093 standard for reaming precise holes within H7 tolerance, solid carbide with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.0908 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760053041
Product number (SAP): 86013026
Ordering code ANSI: B4002.0
Gross weight – grams: 4.9
Cutting diameter – millimeter (DC): 2 mm
Overall length – millimeter (OAL): 49 mm
Length chip flute – millimeter (LCF): 11 mm
Body length – millimeter (LB): 24 mm
Flute count (NOF): 4
Connection diameter – millimeter (DCON MS): 2 mm
Connection diameter tolerance machine side (TCDCONMS): h6
ISO: B4002.0

Brand

DORMER
