DORMER B4002.2 Carbide Reamers

Product Code: B4002.2

$132.56$120.51 Ex. GST

Product Code: B4002.2 SKU B4002.2 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

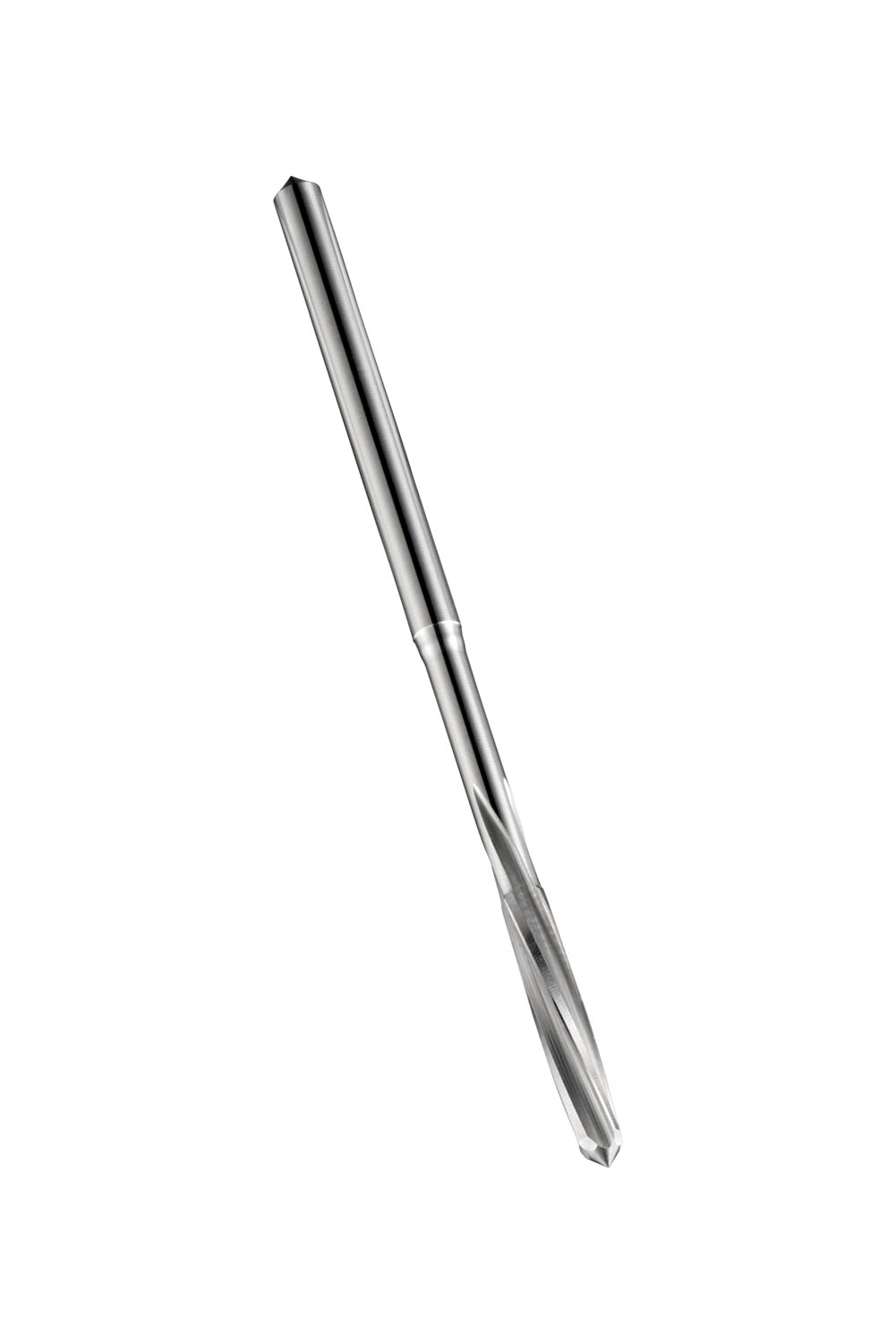

Machine reamer with left hand slow spiral flutes which are extremely unequally spaced and a cylindrical shank, diameter 2.20mm with an overall length of 53mm, a flute length of 12mm and 25mm reach with neck relief, according to DIN 8093 standard for reaming precise holes within H7 tolerance, solid carbide with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.1287 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760053058
Product number (SAP): 86013027
Ordering code ANSI: B4002.2
Gross weight – grams: 5.6
Cutting diameter – millimeter (DC): 2.2 mm
Overall length – millimeter (OAL): 53 mm
Length chip flute – millimeter (LCF): 12 mm
Body length – millimeter (LB): 25 mm
Flute count (NOF): 4
Connection diameter – millimeter (DCON MS): 2.2 mm
Connection diameter tolerance machine side (TCDCONMS): h6
ISO: B4002.2

Brand

DORMER
