DORMER B40020.0 Carbide Reamers

Product Code: B40020.0

$616.35$560.32 Ex. GST

Product Code: B40020.0 SKU B40020.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

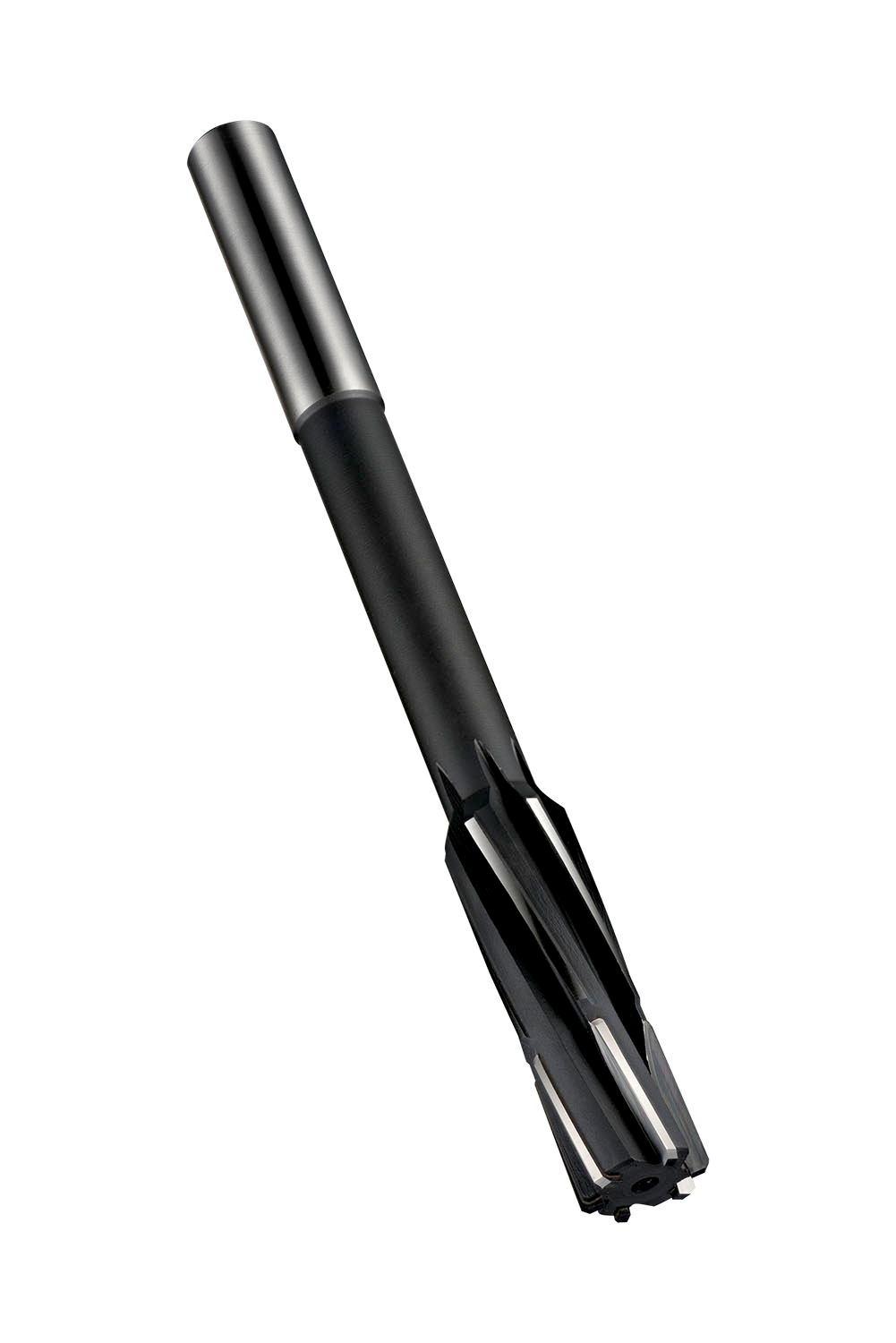

Machine reamer with left hand slow spiral flutes which are extremely unequally spaced and a cylindrical shank, diameter 20.00mm with an overall length of 195mm, a flute length of 60mm and 147mm reach with neck relief, according to DIN 8093 standard for reaming precise holes within H7 tolerance, solid carbide with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.5984 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760144329
Product number (SAP): 86013030
Ordering code ANSI: B40020.0
Gross weight – grams: 327.1
Cutting diameter – millimeter (DC): 20 mm
Overall length – millimeter (OAL): 195 mm
Length chip flute – millimeter (LCF): 60 mm
Body length – millimeter (LB): 147 mm
Flute count (NOF): 6
Connection diameter – millimeter (DCON MS): 16 mm
Connection diameter tolerance machine side (TCDCONMS): h6
ISO: B40020.0

Brand

DORMER
