DORMER B41120.0 Carbide Reamers

Product Code: B41120.0

$377.29$342.99 Ex. GST

Product Code: B41120.0 SKU B41120.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

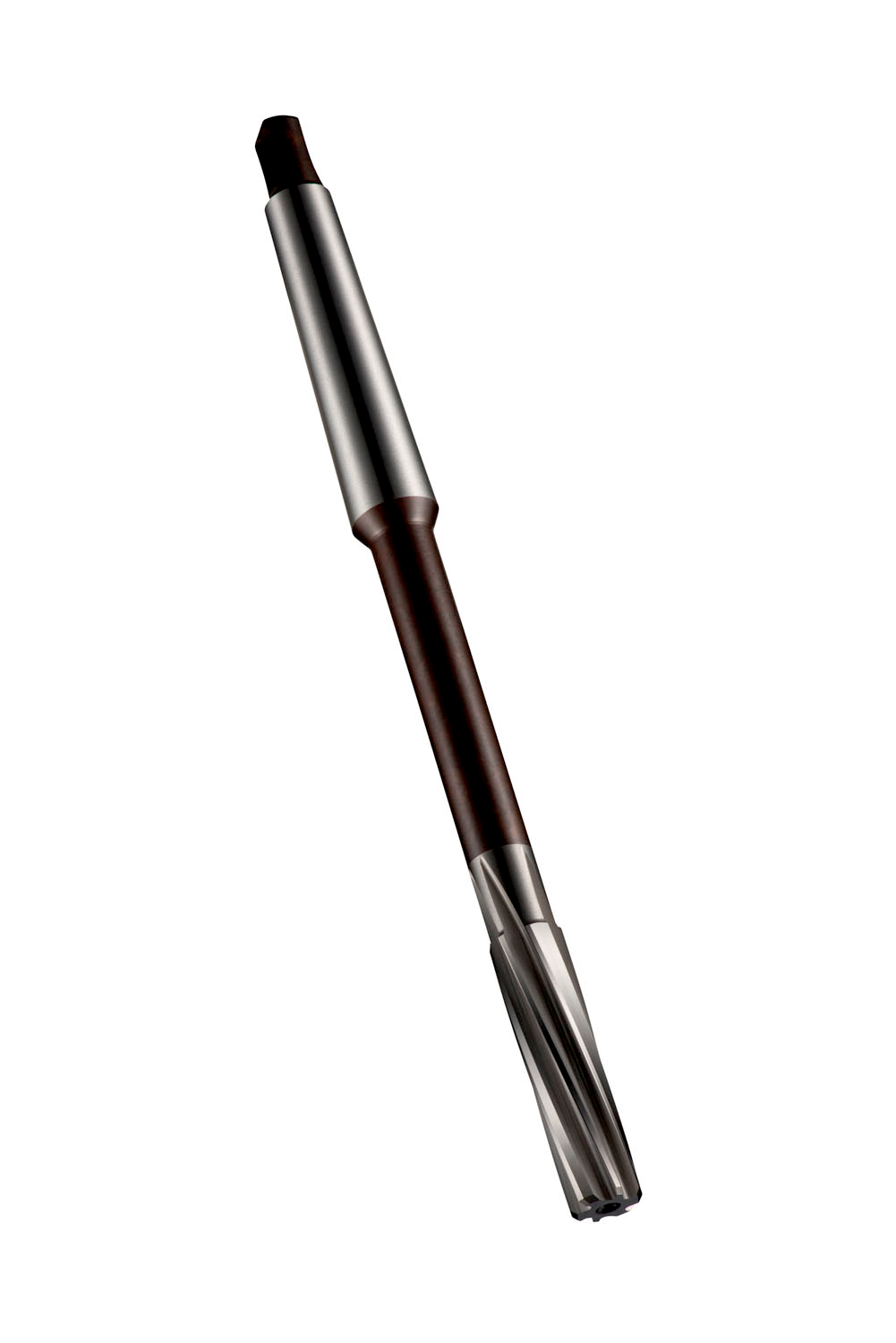

Machine reamer with left hand slow spiral flutes which are extremely unequally spaced and a Morse taper shank, diameter 20.00mm with an overall length of 228mm, a flute length of 60mm and 148mm reach with neck relief, according to DIN 8094 standard for reaming precise holes within H7 tolerance, carbide head with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.3663 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760144367
Product number (SAP): 86013051
Ordering code ANSI: B41120.0
Gross weight – grams: 374.8
Cutting diameter – millimeter (DC): 20 mm
Overall length – millimeter (OAL): 228 mm
Length chip flute – millimeter (LCF): 60 mm
Body length – millimeter (LB): 148 mm
Flute count (NOF): 6
Connection size code machine side (CZC MS): MK 2
ISO: B41120.0

Brand

DORMER
