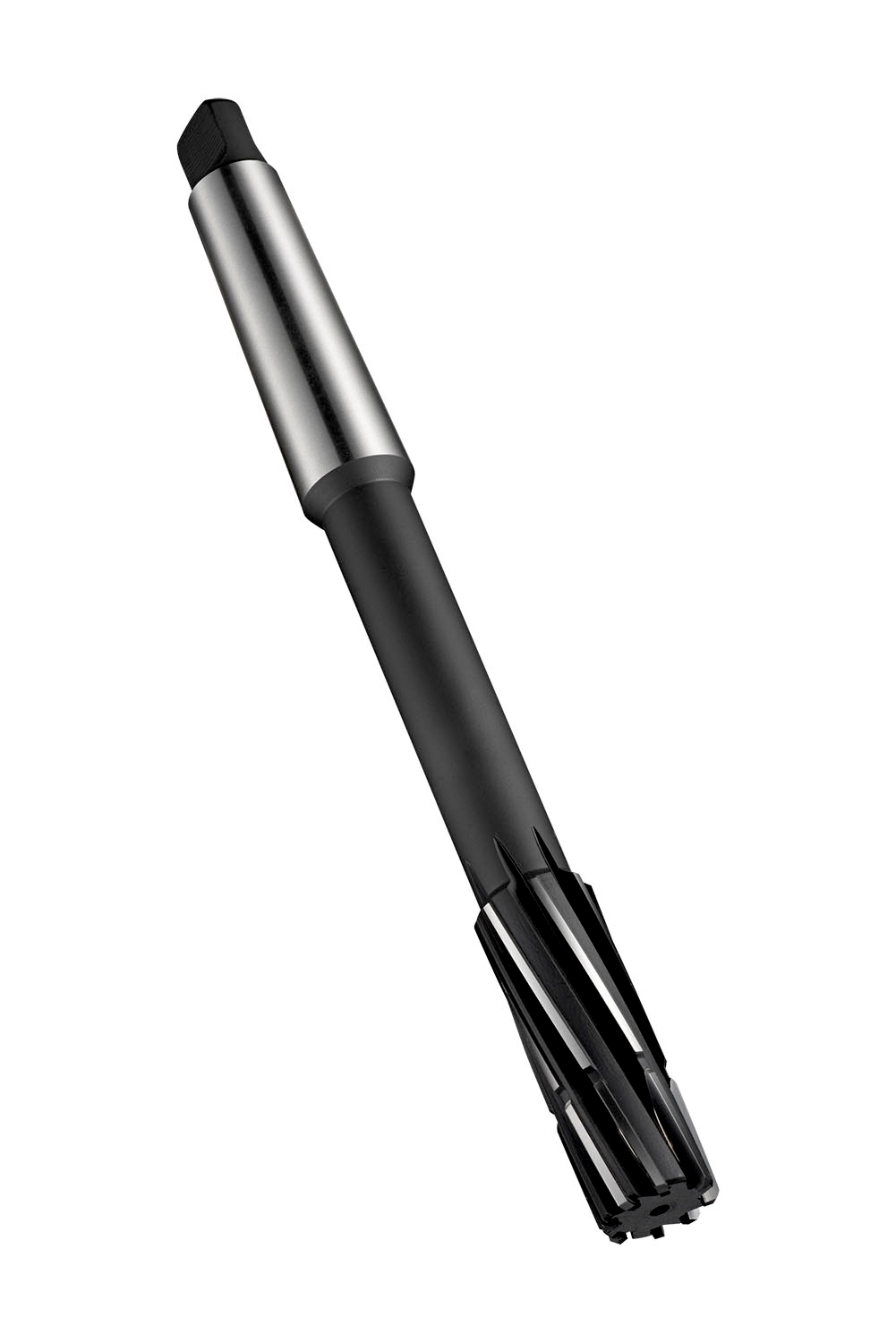

DORMER B41130.0 Carbide Reamers

Product Code: B41130.0

$524.58$476.89 Ex. GST

Product Code: B41130.0 SKU B41130.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine reamer with left hand slow spiral flutes which are extremely unequally spaced and a Morse taper shank, diameter 30.00mm with an overall length of 281mm, a flute length of 73mm and 182mm reach with neck relief, according to DIN 8094 standard for reaming precise holes within H7 tolerance, carbide head with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.5093 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760144411
Product number (SAP): 86013056
Ordering code ANSI: B41130.0
Gross weight – grams: 982.6
Cutting diameter – millimeter (DC): 30 mm
Overall length – millimeter (OAL): 281 mm
Length chip flute – millimeter (LCF): 73 mm
Body length – millimeter (LB): 182 mm
Flute count (NOF): 8
Connection size code machine side (CZC MS): MK 3
ISO: B41130.0

Brand

DORMER
