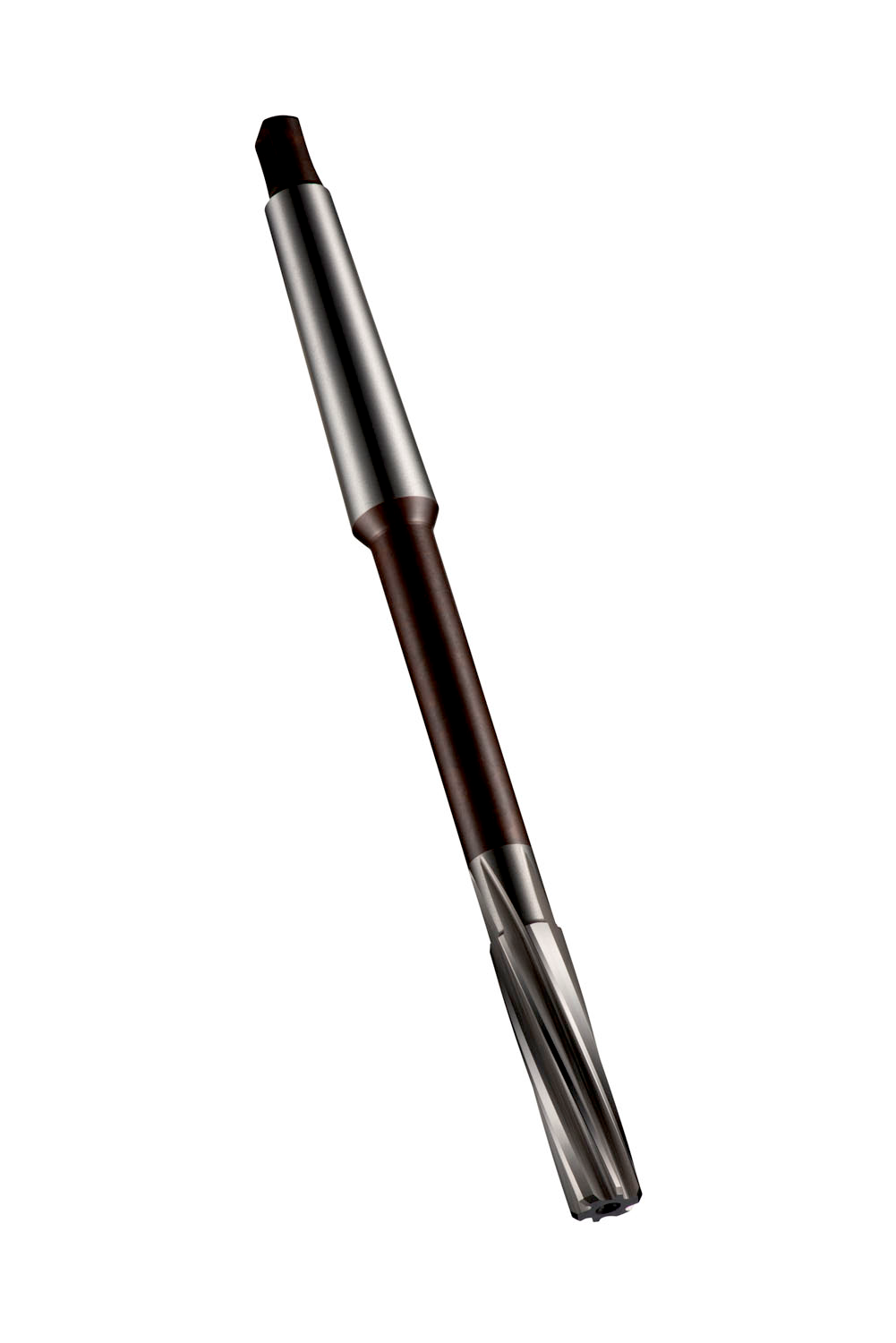

DORMER B4118.0 Carbide Reamers

Product Code: B4118.0

$308.18$280.16 Ex. GST

Product Code: B4118.0 SKU B4118.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine reamer with left hand slow spiral flutes which are extremely unequally spaced and a Morse taper shank, diameter 8.00mm with an overall length of 156mm, a flute length of 33mm and 90.5mm reach with neck relief, according to DIN 8094 standard for reaming precise holes within H7 tolerance, carbide head with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.2992 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760053225
Product number (SAP): 86013060
Ordering code ANSI: B4118.0
Gross weight – grams: 90
Cutting diameter – millimeter (DC): 8 mm
Overall length – millimeter (OAL): 156 mm
Length chip flute – millimeter (LCF): 33 mm
Body length – millimeter (LB): 90.5 mm
Flute count (NOF): 6
Connection size code machine side (CZC MS): MK 1
ISO: B4118.0

Brand

DORMER
