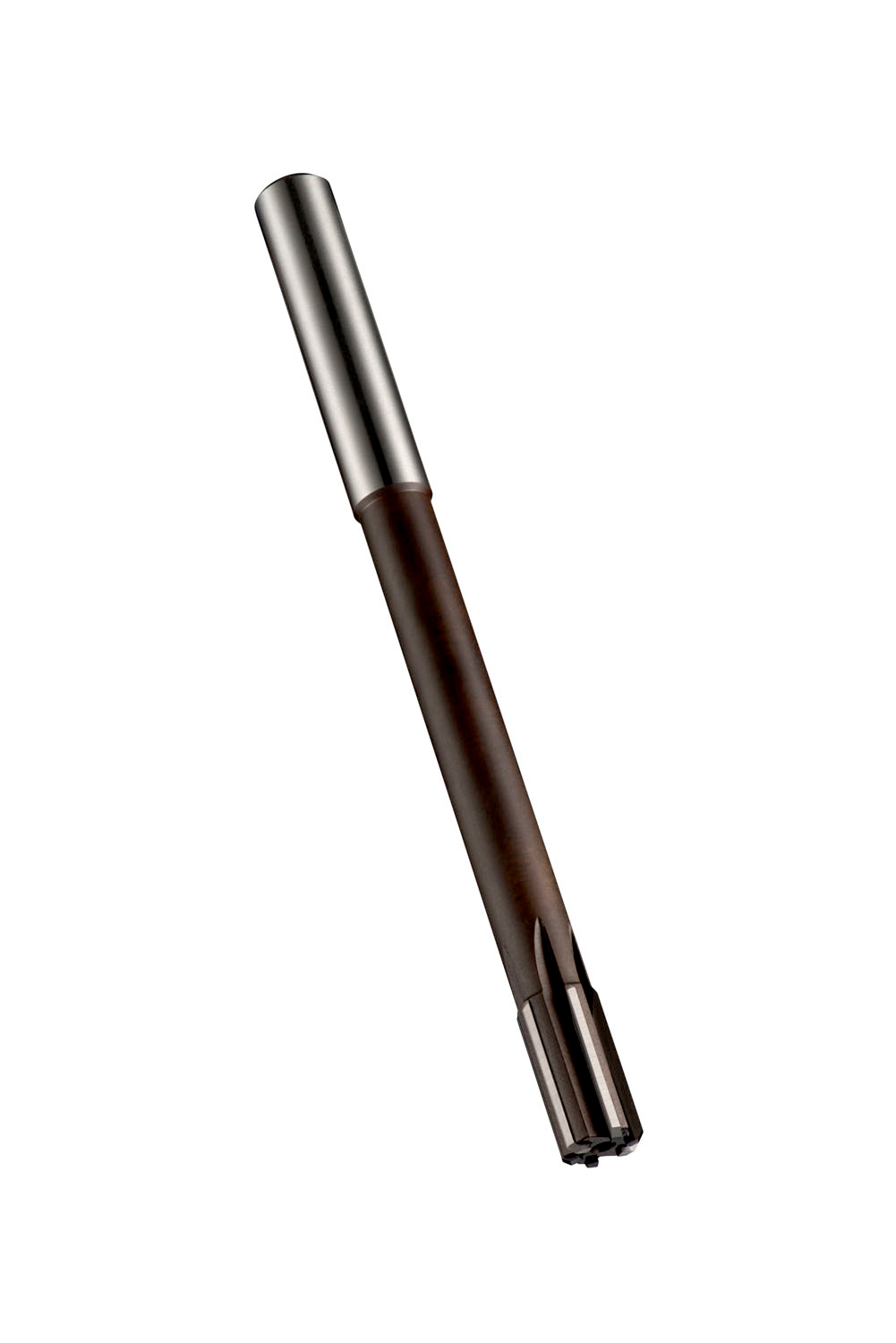

DORMER B44113.0 Carbide Reamers

Product Code: B44113.0

$329.70$299.73 Ex. GST

Product Code: B44113.0 SKU B44113.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine reamer with straight flutes which are extremely unequally spaced and a cylindrical shank, diameter 13.00mm with an overall length of 151mm, a flute length of 19mm and 105mm reach with neck relief, according to DIN 8050 standard for reaming precise holes within H7 tolerance, carbide tipped with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.3201 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760426302
Product number (SAP): 86013065
Ordering code ANSI: B44113.0
Gross weight – grams: 91.8
Cutting diameter – millimeter (DC): 13 mm
Overall length – millimeter (OAL): 151 mm
Length chip flute – millimeter (LCF): 19 mm
Body length – millimeter (LB): 105 mm
Flute count (NOF): 6
Connection diameter – millimeter (DCON MS): 10 mm
Connection diameter tolerance machine side (TCDCONMS): h9
ISO: B44113.0

Brand

DORMER
