DORMER B44115.0 Carbide Reamers

Product Code: B44115.0

$343.30$312.09 Ex. GST

Product Code: B44115.0 SKU B44115.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

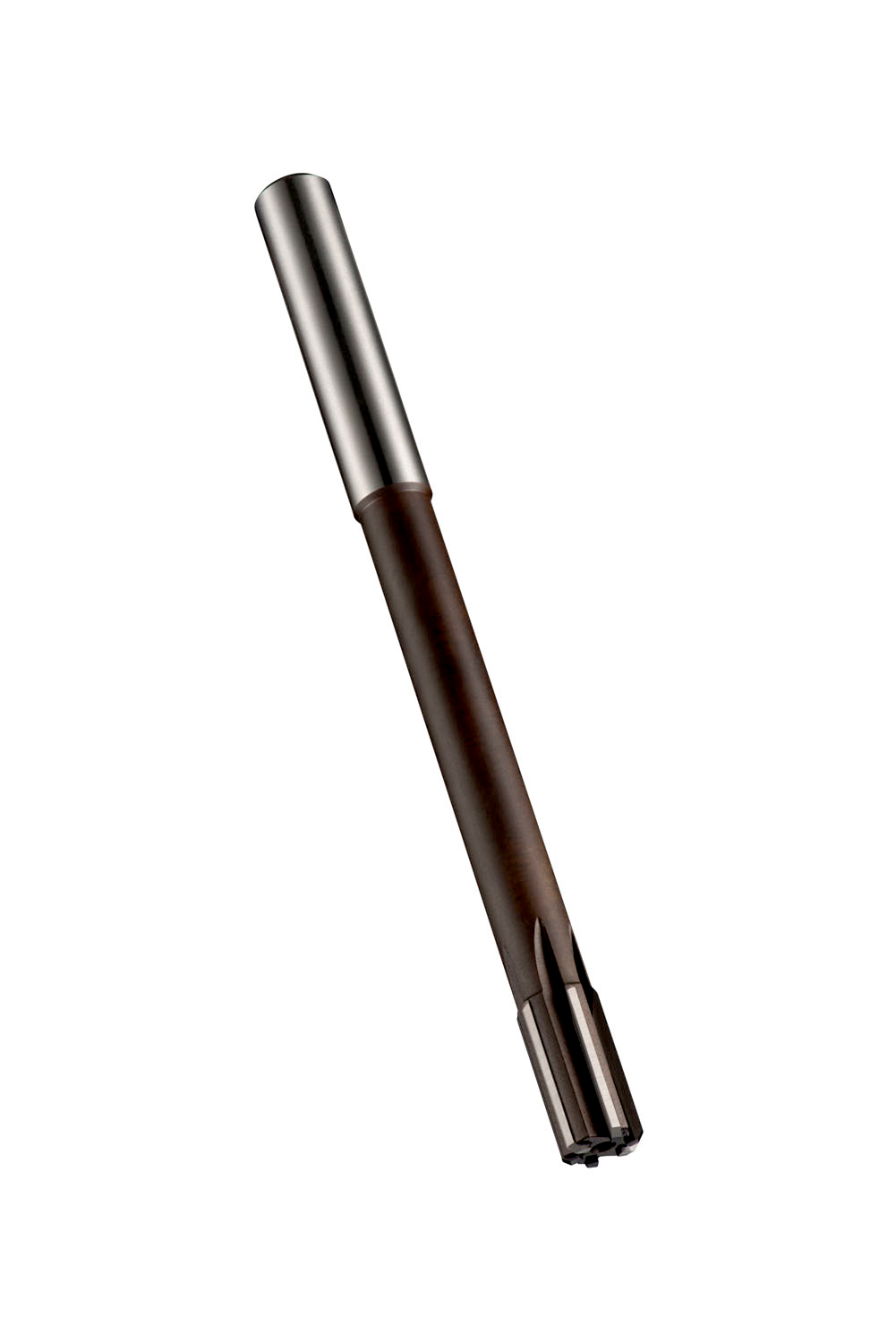

Machine reamer with straight flutes which are extremely unequally spaced and a cylindrical shank, diameter 15.00mm with an overall length of 162mm, a flute length of 19mm and 112mm reach with neck relief, according to DIN 8050 standard for reaming precise holes within H7 tolerance, carbide tipped with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.3333 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760421123
Product number (SAP): 86013067
Ordering code ANSI: B44115.0
Gross weight – grams: 153
Cutting diameter – millimeter (DC): 15 mm
Overall length – millimeter (OAL): 162 mm
Length chip flute – millimeter (LCF): 19 mm
Body length – millimeter (LB): 112 mm
Flute count (NOF): 6
Connection diameter – millimeter (DCON MS): 12.5 mm
Connection diameter tolerance machine side (TCDCONMS): h9
ISO: B44115.0

Brand

DORMER
