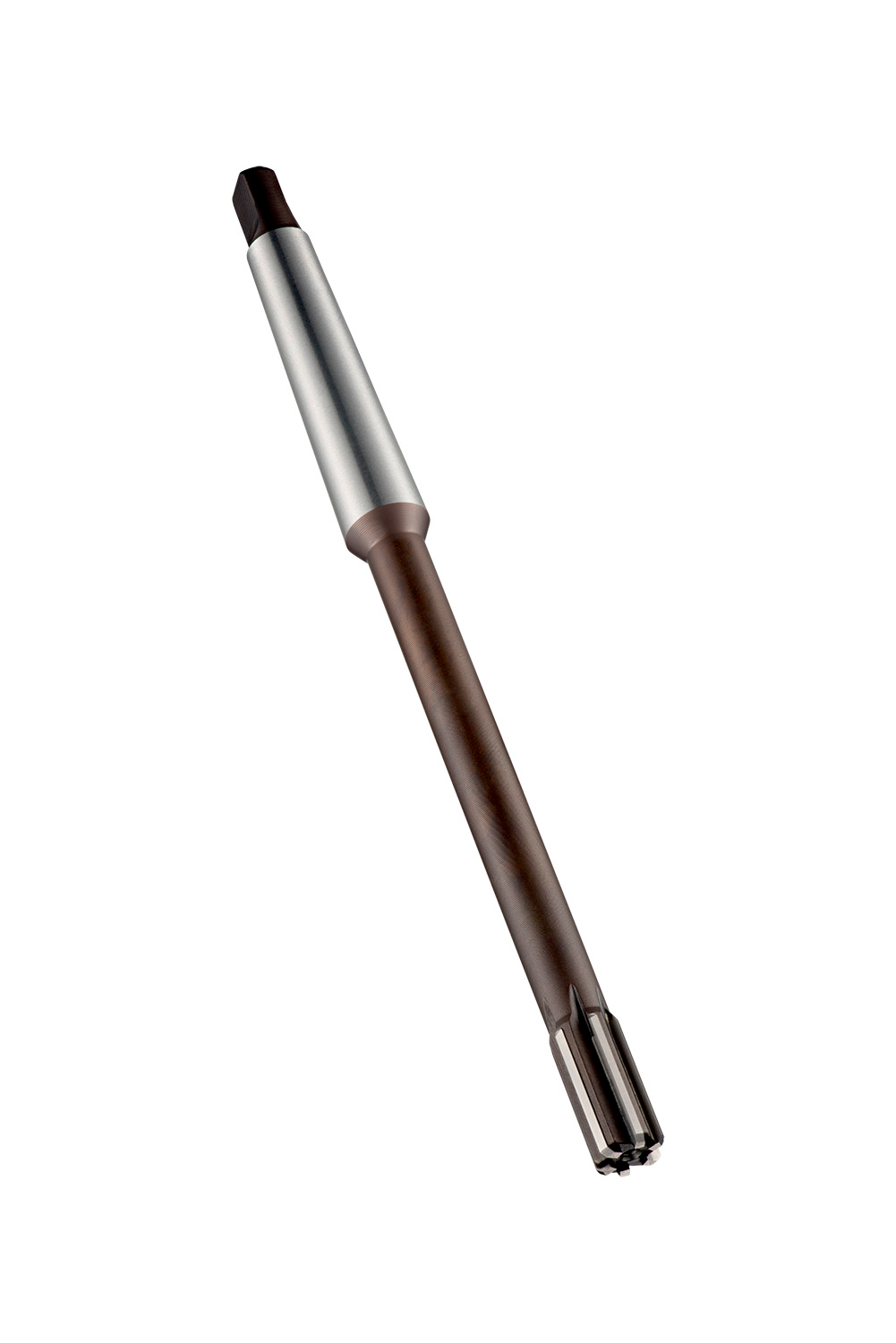

DORMER B44216.0 Carbide Reamers

Product Code: B44216.0

$299.11$271.92 Ex. GST

Product Code: B44216.0 SKU B44216.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine reamer with straight flutes which are extremely unequally spaced and a Morse taper shank, diameter 16.00mm with an overall length of 210mm, a flute length of 22mm and 130mm reach with neck relief, according to DIN 8051 standard for reaming precise holes within H7 tolerance, solid carbide with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.2904 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760421222
Product number (SAP): 86013077
Ordering code ANSI: B44216.0
Gross weight – grams: 284.8
Cutting diameter – millimeter (DC): 16 mm
Overall length – millimeter (OAL): 210 mm
Length chip flute – millimeter (LCF): 22 mm
Body length – millimeter (LB): 130 mm
Flute count (NOF): 6
Connection size code machine side (CZC MS): MK 2
ISO: B44216.0

Brand

DORMER
