DORMER B4811.51 Carbide Reamers

Product Code: B4811.51

$200.54$182.31 Ex. GST

Product Code: B4811.51 SKU B4811.51 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

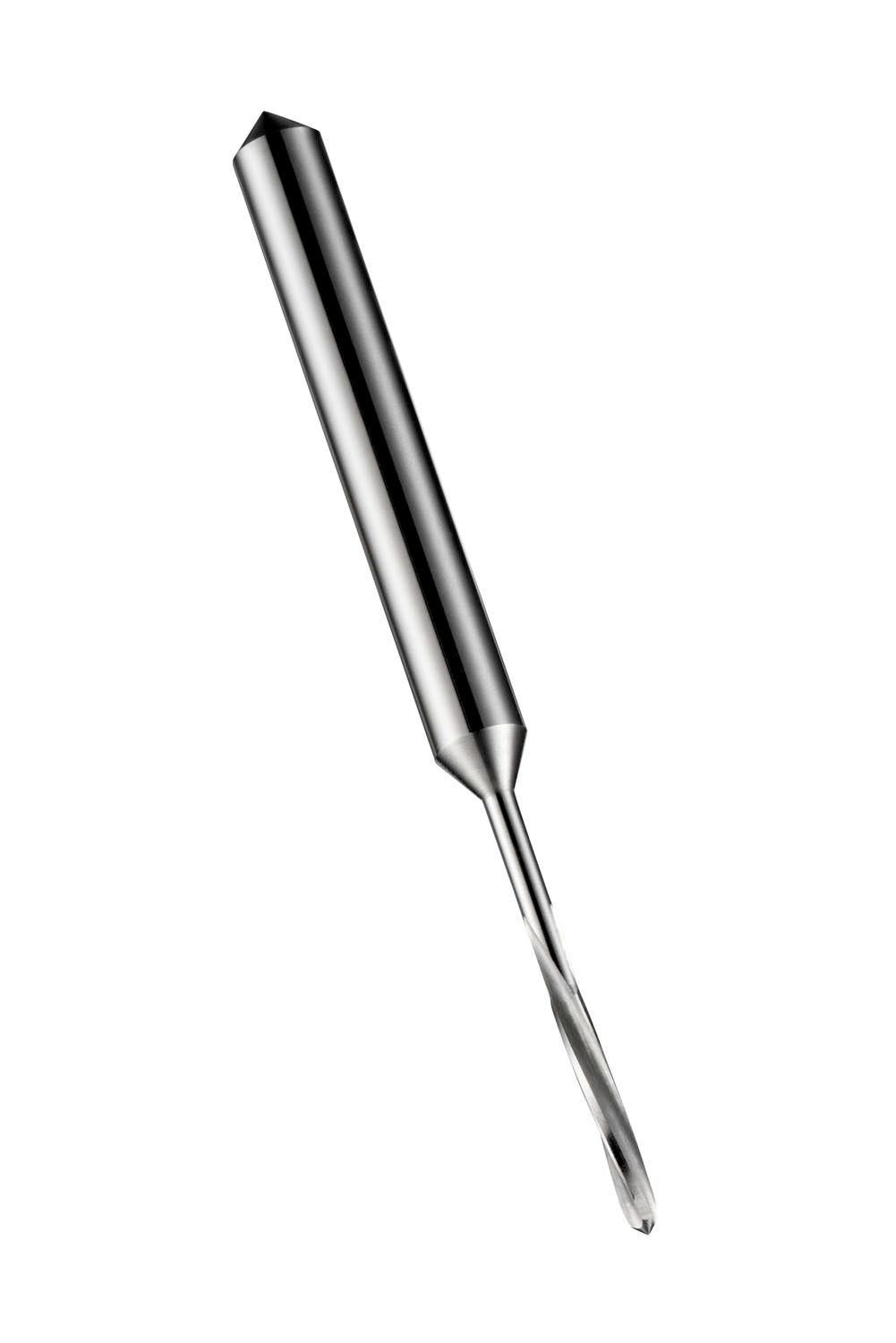

Centesimal reamer with left hand slow spiral flutes which are extremely unequally spaced and a cylindrical shank, diameter 1.51mm with an overall length of 50mm, a flute length of 10mm and 22mm reach with neck relief, according to DIN 8093 standard with a diameter tolerance of 0/+0.004mm to produce holes within diameter-tolerance 1.5F7, carbide head with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.1947 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760421659
Product number (SAP): 86013091
Ordering code ANSI: B4811.51
Gross weight – grams: 4.4
Cutting diameter – millimeter (DC): 1.51 mm
Overall length – millimeter (OAL): 50 mm
Length chip flute – millimeter (LCF): 10 mm
Body length – millimeter (LB): 22 mm
Flute count (NOF): 3
Connection diameter – millimeter (DCON MS): 3 mm
ISO: B4811.51

Brand

DORMER
