DORMER B48110.05 Carbide Reamers

Product Code: B48110.05

$426.01$387.28 Ex. GST

Product Code: B48110.05 SKU B48110.05 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

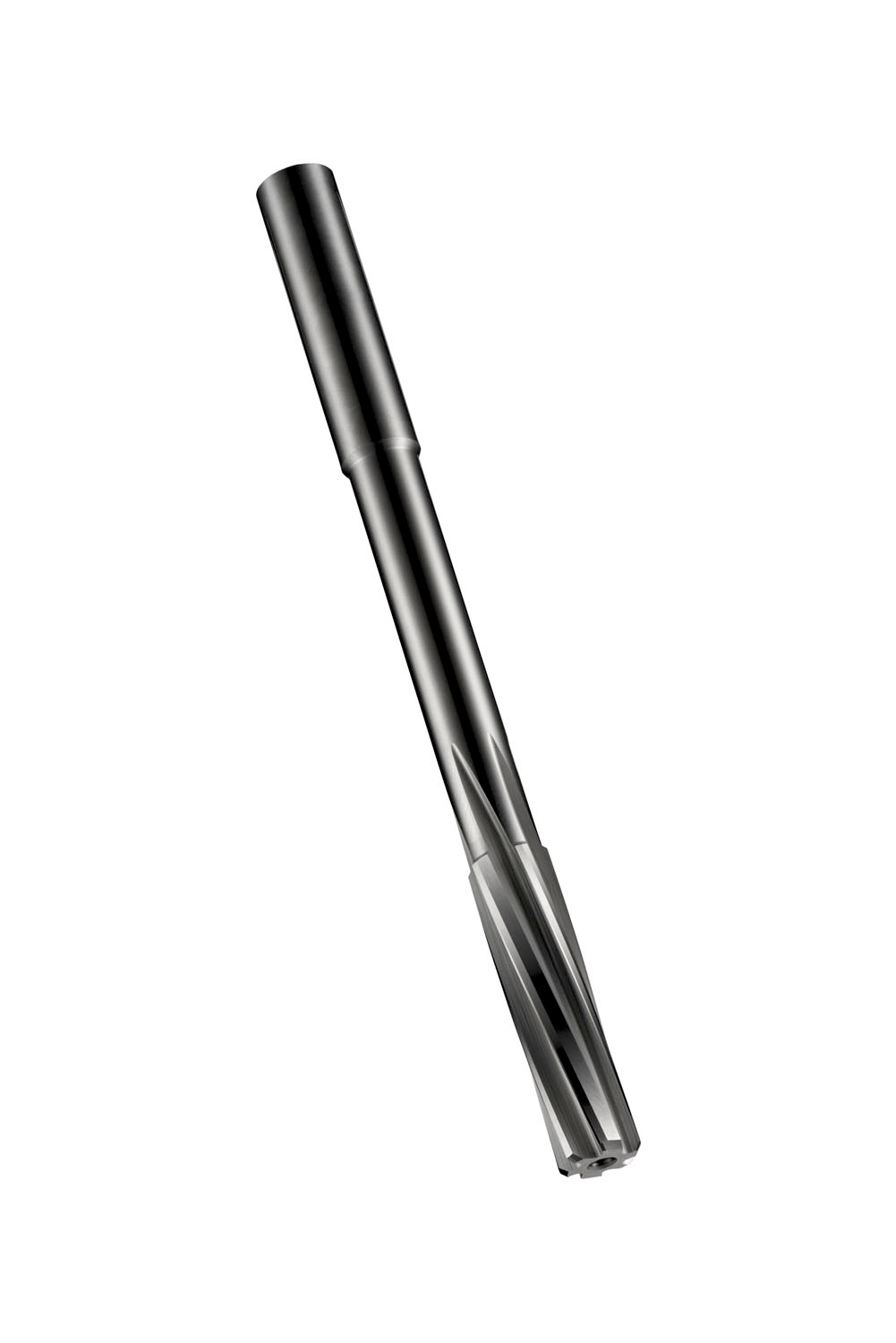

Centesimal reamer with left hand slow spiral flutes which are extremely unequally spaced and a cylindrical shank, diameter 10.05mm with an overall length of 133mm, a flute length of 38mm and 93mm reach with neck relief, according to DIN 8093 standard with a diameter tolerance of 0/+0.004mm to produce holes within diameter-tolerance 10D8, 10E9 or 10F10, carbide head with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.4136 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760421758
Product number (SAP): 86013101
Ordering code ANSI: B48110.05
Gross weight – grams: 129.3
Cutting diameter – millimeter (DC): 10.05 mm
Overall length – millimeter (OAL): 133 mm
Length chip flute – millimeter (LCF): 38 mm
Body length – millimeter (LB): 93 mm
Flute count (NOF): 6
Connection diameter – millimeter (DCON MS): 10 mm
ISO: B48110.05

Brand

DORMER
