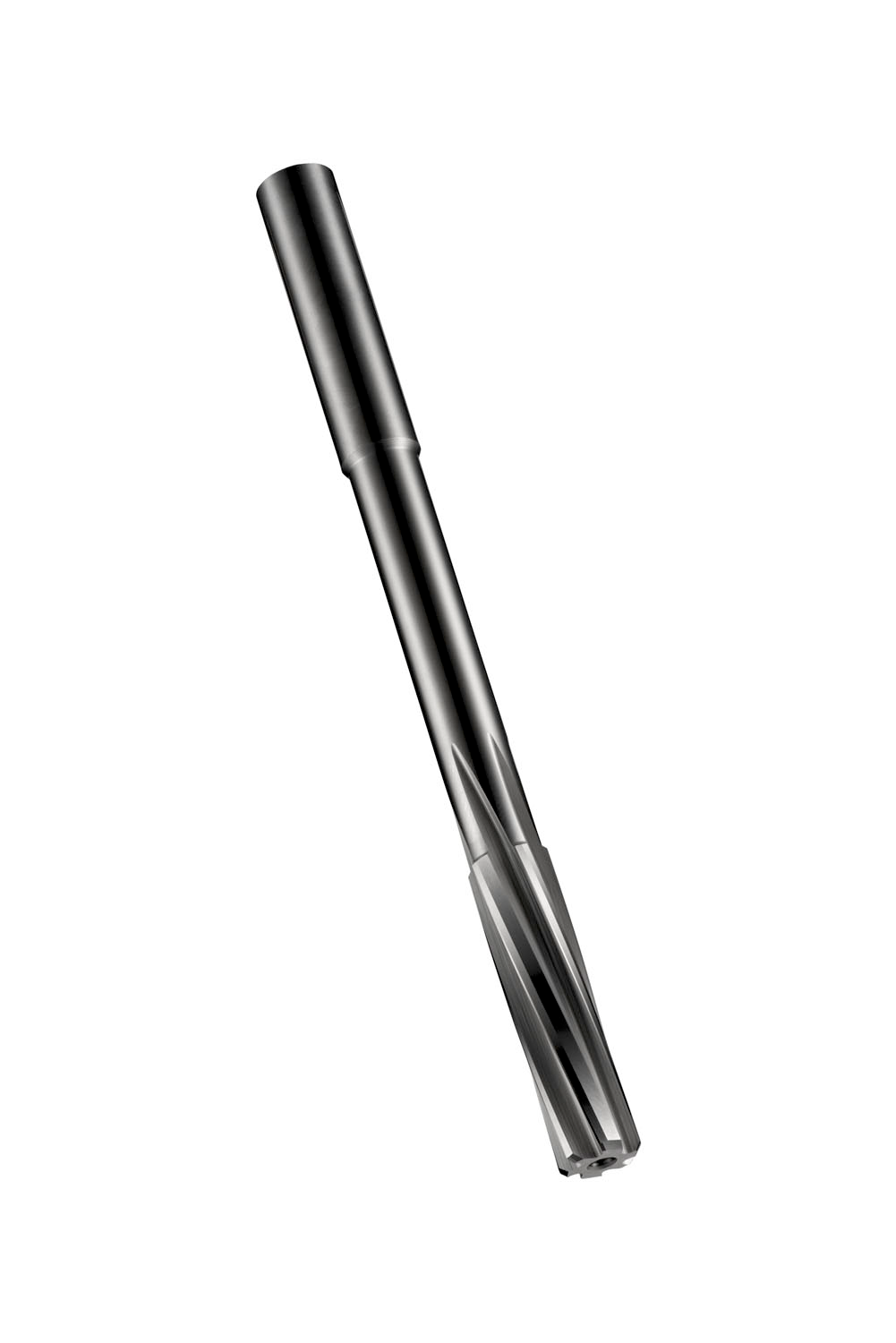

DORMER B48112.04 Carbide Reamers

Product Code: B48112.04

$512.12$465.56 Ex. GST

Product Code: B48112.04 SKU B48112.04 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Centesimal reamer with left hand slow spiral flutes which are extremely unequally spaced and a cylindrical shank, diameter 12.04mm with an overall length of 151mm, a flute length of 44mm and 106mm reach with neck relief, according to DIN 8093 standard with a diameter tolerance of 0/+0.004mm to produce holes within diameter-tolerance 12E7 or 12F9, carbide head with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.4972 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760421833
Product number (SAP): 86013109
Ordering code ANSI: B48112.04
Gross weight – grams: 203.6
Cutting diameter – millimeter (DC): 12.04 mm
Overall length – millimeter (OAL): 151 mm
Length chip flute – millimeter (LCF): 44 mm
Body length – millimeter (LB): 106 mm
Flute count (NOF): 6
Connection diameter – millimeter (DCON MS): 12 mm
ISO: B48112.04

Brand

DORMER
