DORMER B4812.03 Carbide Reamers

Product Code: B4812.03

$200.54$182.31 Ex. GST

Product Code: B4812.03 SKU B4812.03 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

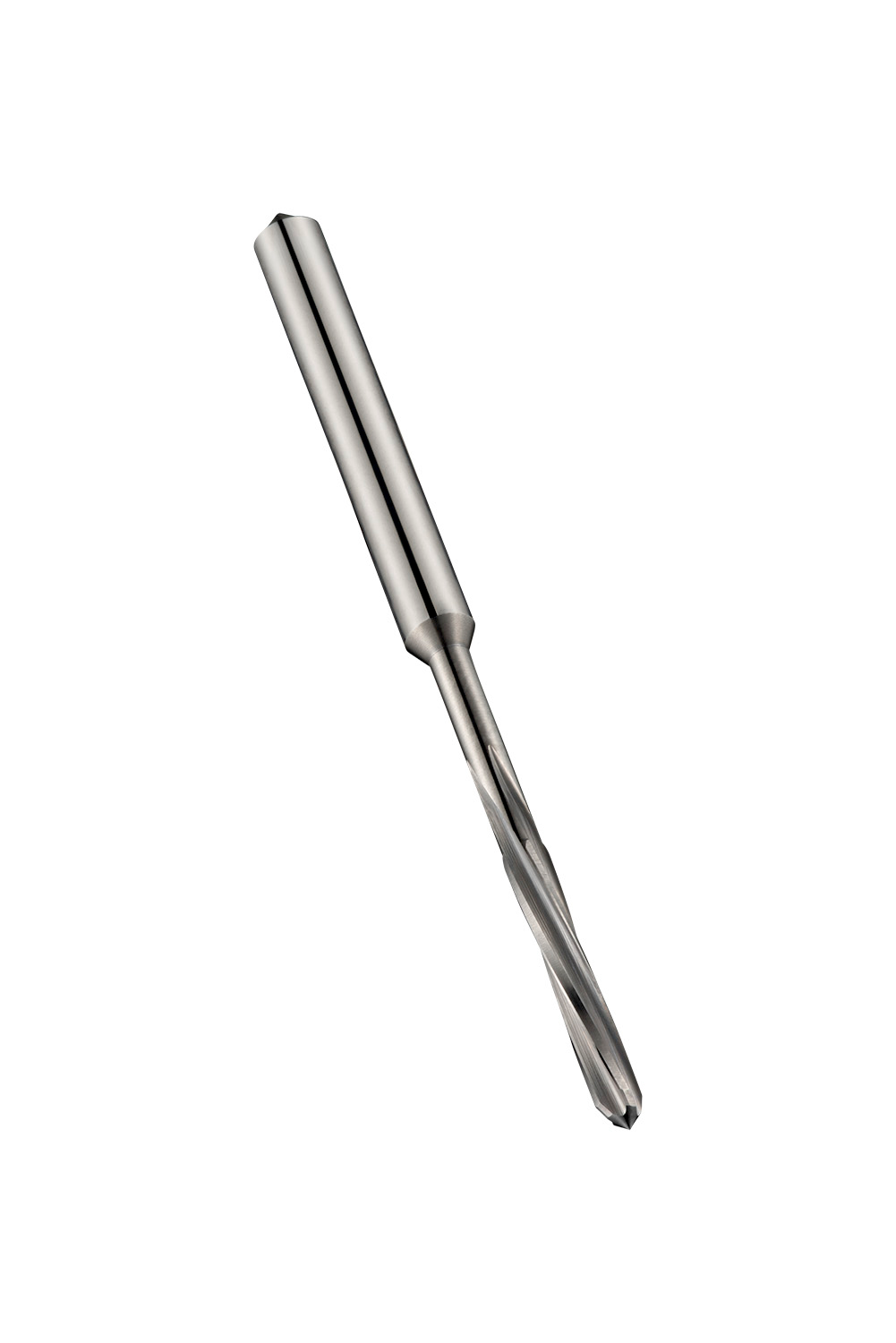

Centesimal reamer with left hand slow spiral flutes which are extremely unequally spaced and a cylindrical shank, diameter 2.03mm with an overall length of 50mm, a flute length of 12mm and 22mm reach with neck relief, according to DIN 8093 standard with a diameter tolerance of 0/+0.004mm to produce holes within diameter-tolerance 2E9 or 2H10, carbide head with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.1947 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760421888
Product number (SAP): 86013114
Ordering code ANSI: B4812.03
Gross weight – grams: 6.68
Cutting diameter – millimeter (DC): 2.03 mm
Overall length – millimeter (OAL): 50 mm
Length chip flute – millimeter (LCF): 12 mm
Body length – millimeter (LB): 22 mm
Flute count (NOF): 4
Connection diameter – millimeter (DCON MS): 3 mm
ISO: B4812.03

Brand

DORMER
