DORMER B4812.53 Carbide Reamers

Product Code: B4812.53

$200.54$182.31 Ex. GST

Product Code: B4812.53 SKU B4812.53 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

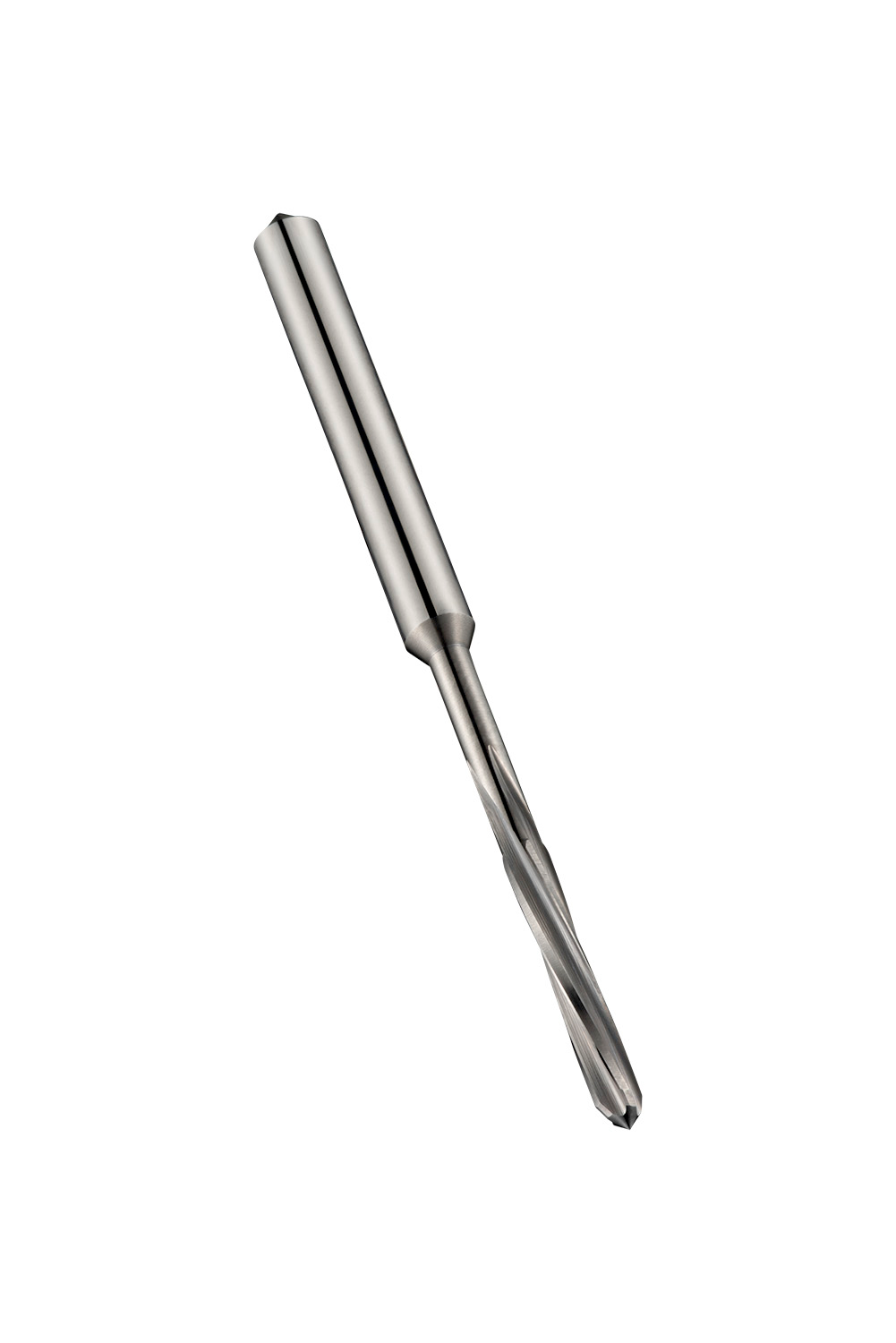

Centesimal reamer with left hand slow spiral flutes which are extremely unequally spaced and a cylindrical shank, diameter 2.53mm with an overall length of 60mm, a flute length of 16mm and 32mm reach with neck relief, according to DIN 8093 standard with a diameter tolerance of 0/+0.004mm to produce holes within diameter-tolerance 2.5E9 or 2.5H10, carbide head with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.1947 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760421949
Product number (SAP): 86013120
Ordering code ANSI: B4812.53
Gross weight – grams: 7.6
Cutting diameter – millimeter (DC): 2.53 mm
Overall length – millimeter (OAL): 60 mm
Length chip flute – millimeter (LCF): 16 mm
Body length – millimeter (LB): 32 mm
Flute count (NOF): 4
Connection diameter – millimeter (DCON MS): 3 mm
ISO: B4812.53

Brand

DORMER
