DORMER B4812.97 Carbide Reamers

Product Code: B4812.97

$208.47$189.52 Ex. GST

Product Code: B4812.97 SKU B4812.97 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

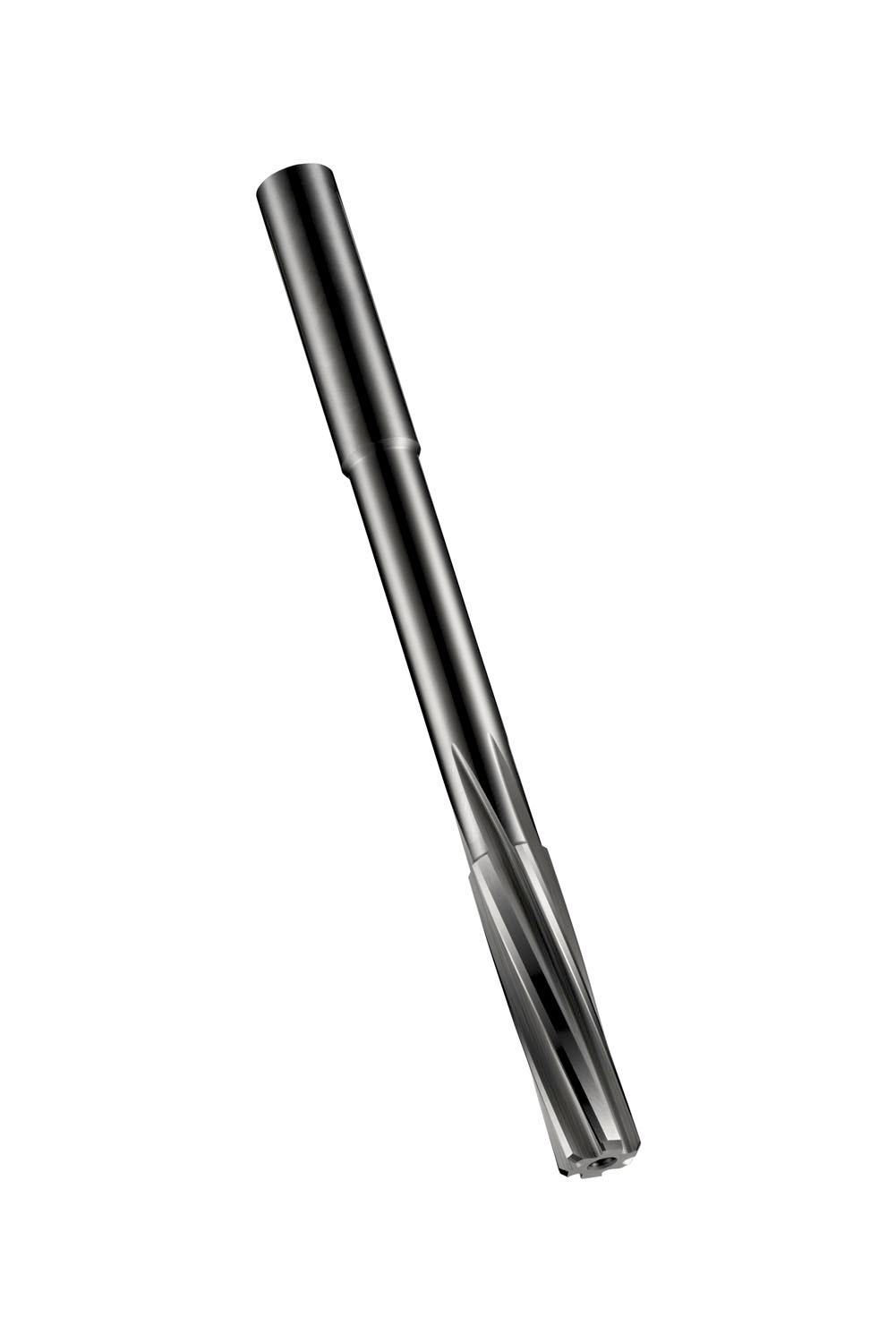

Centesimal reamer with left hand slow spiral flutes which are extremely unequally spaced and a cylindrical shank, diameter 2.97mm with an overall length of 65mm, a flute length of 17mm and 37mm reach with neck relief, according to DIN 8093 standard with a diameter tolerance of 0/+0.004mm to produce holes within diameter-tolerance, carbide head with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.2024 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760421956
Product number (SAP): 86013121
Ordering code ANSI: B4812.97
Gross weight – grams: 11.4
Cutting diameter – millimeter (DC): 2.97 mm
Overall length – millimeter (OAL): 65 mm
Length chip flute – millimeter (LCF): 17 mm
Body length – millimeter (LB): 37 mm
Flute count (NOF): 6
Connection diameter – millimeter (DCON MS): 4 mm
ISO: B4812.97

Brand

DORMER
