DORMER B4816.02 Carbide Reamers

Product Code: B4816.02

$291.18$264.71 Ex. GST

Product Code: B4816.02 SKU B4816.02 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

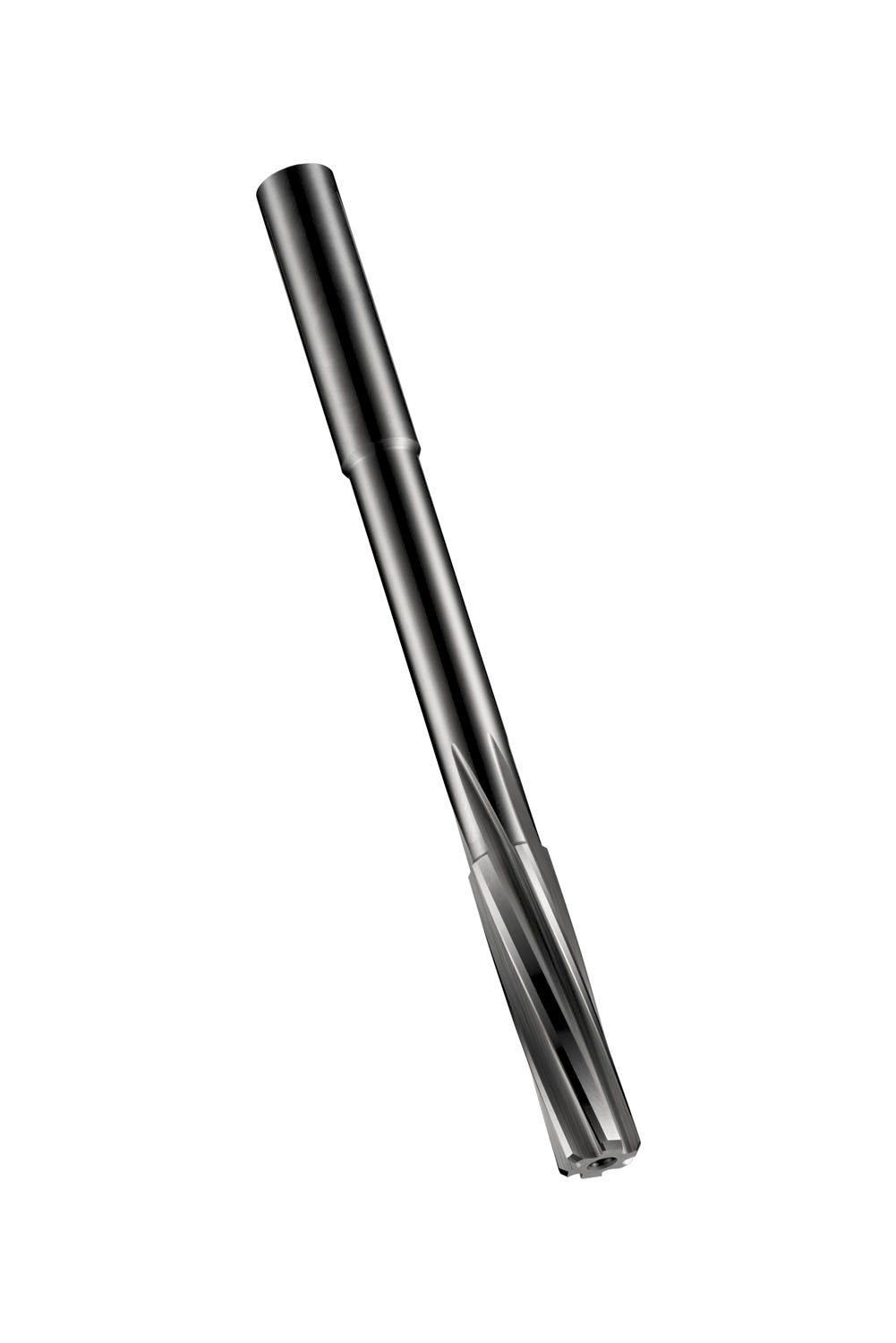

Centesimal reamer with left hand slow spiral flutes which are extremely unequally spaced and a cylindrical shank, diameter 6.02mm with an overall length of 93mm, a flute length of 26mm and 57mm reach with neck relief, according to DIN 8093 standard with a diameter tolerance of 0/+0.004mm to produce holes within diameter-tolerance 6F8 or 6H9, carbide head with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.2827 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760422212
Product number (SAP): 86013147
Ordering code ANSI: B4816.02
Gross weight – grams: 37.3
Cutting diameter – millimeter (DC): 6.02 mm
Overall length – millimeter (OAL): 93 mm
Length chip flute – millimeter (LCF): 26 mm
Body length – millimeter (LB): 57 mm
Flute count (NOF): 6
Connection diameter – millimeter (DCON MS): 6 mm
ISO: B4816.02

Brand

DORMER
